Notifier DR-A4 — CAB-4 Series one-tier cabinet door assembly, windowed, black, 14.20 lb.

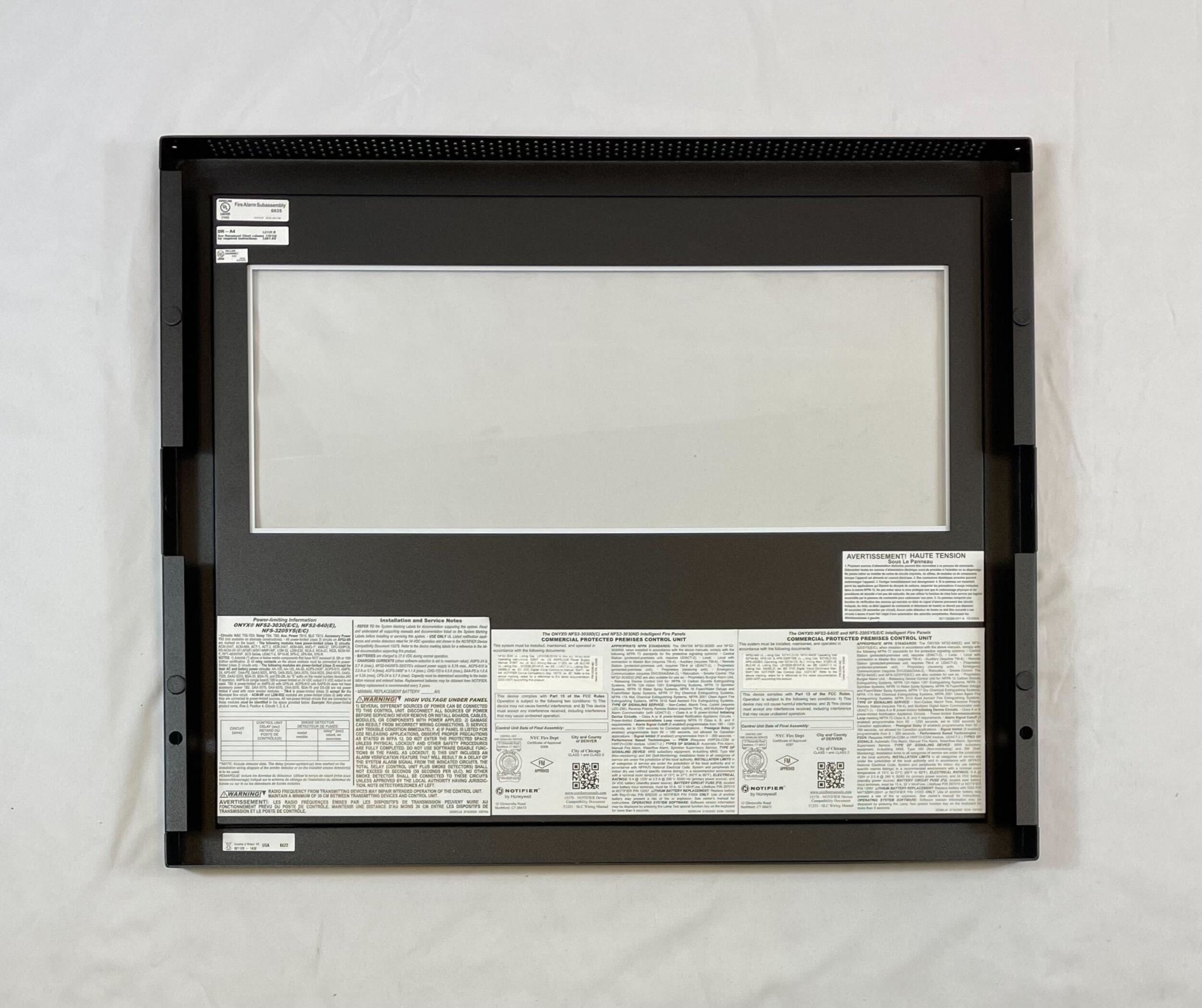

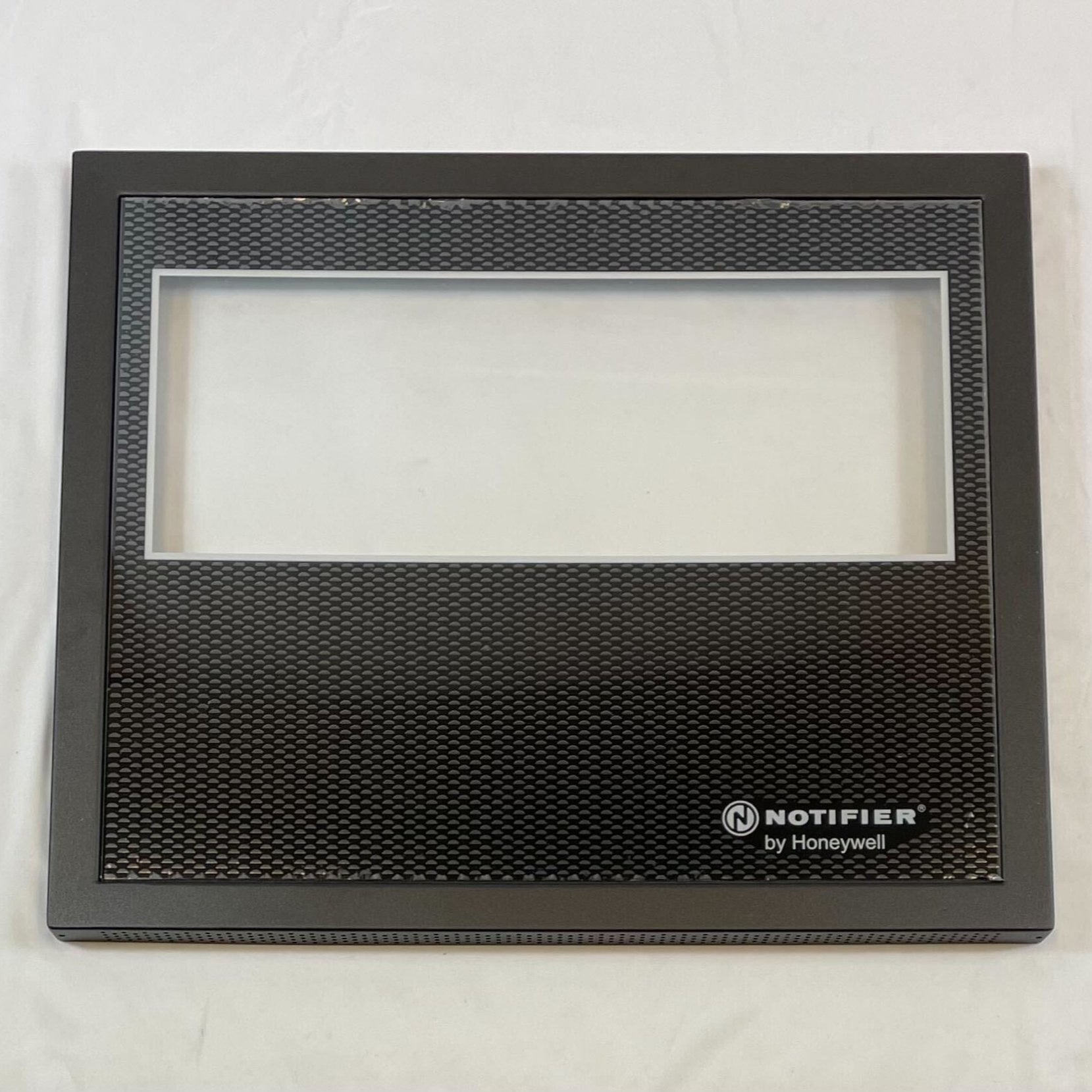

A Notifier cabinet is ordered as two parts, a backbox and a locking door, and this is the door for the smallest full-size CAB-4 enclosure. The A size is one tier, a single chassis position above the battery compartment, and the window lets the panel display be read while the door stays locked.
- One tier, A size, windowed, black, 14.20 lb

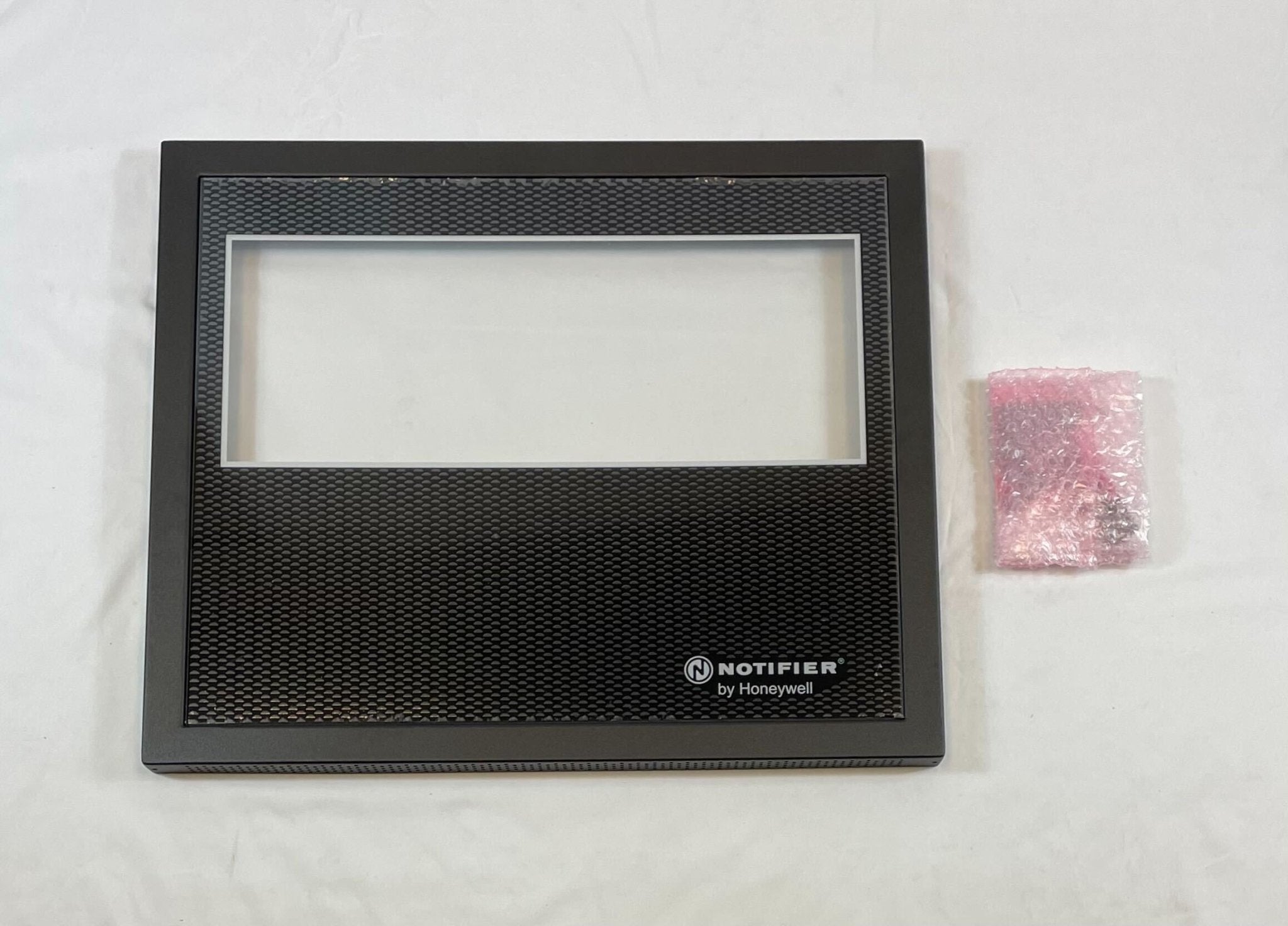

- 16-gauge steel, key locked, supplied with a pin-type hinge, two keys and the mounting hardware
- Hinge handing is field selectable left or right and the door opens 180 degrees
- A-size cabinet face measures 24-1/8 in. (61.28 cm) wide by 20-1/8 in. (51.12 cm) high

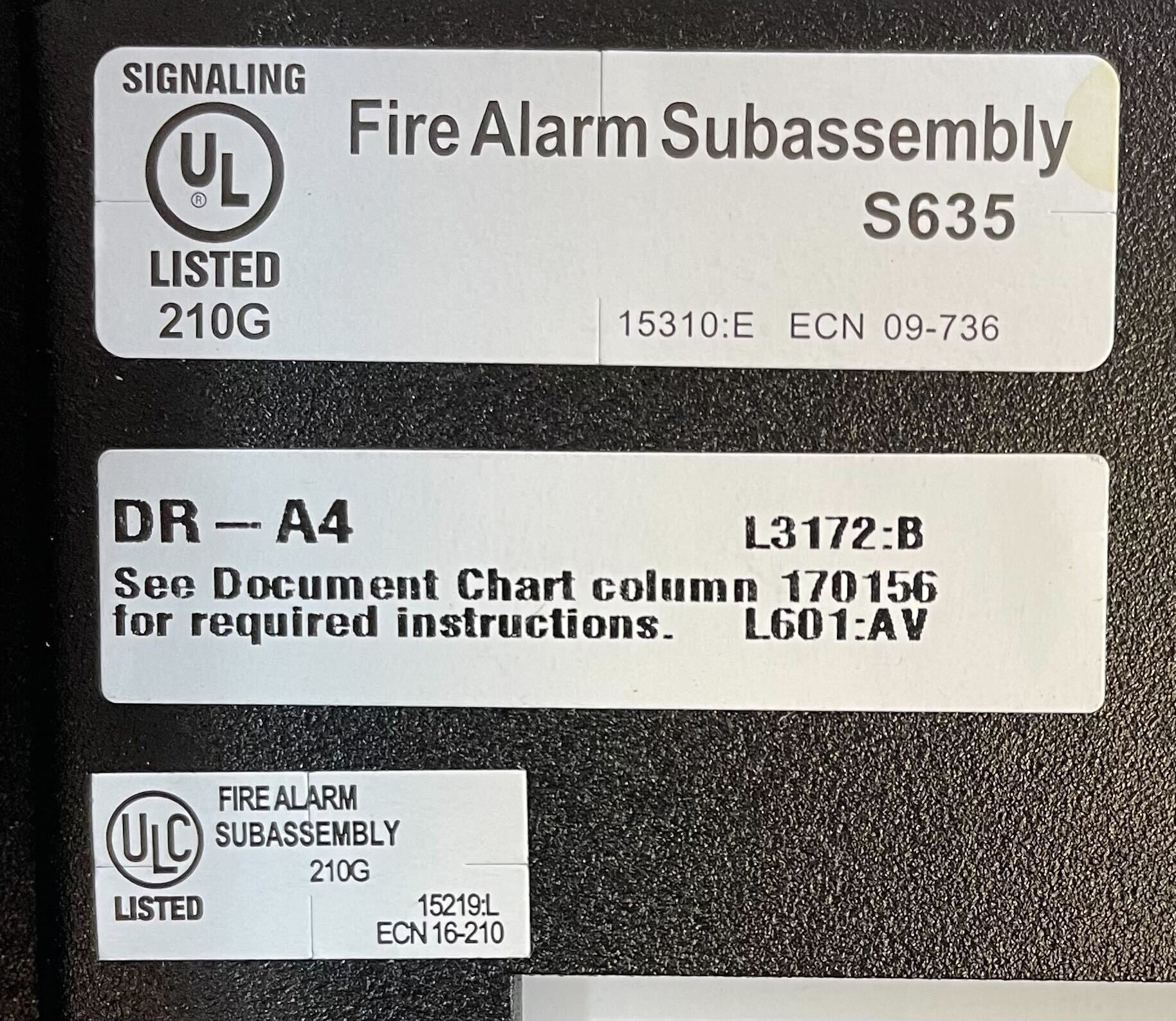

- UL and ULC listed S635, FM approved, CSFM listed, FDNY accepted, MEA 317-01-E
- Seismic-certified applications use the SEISKIT-CAB mounting kit
Its backbox is SBB-A4 in black or SBB-A4R in red. Sibling doors are DR-A4R, the same windowed door in red, DR-A4B, solid black at 14.30 lb, and DR-A4BR, solid red. TR-A4 is the trim ring for this tier and BP2-4 the battery plate; DR-B4, DR-C4 and DR-D4 are the larger tiers.
