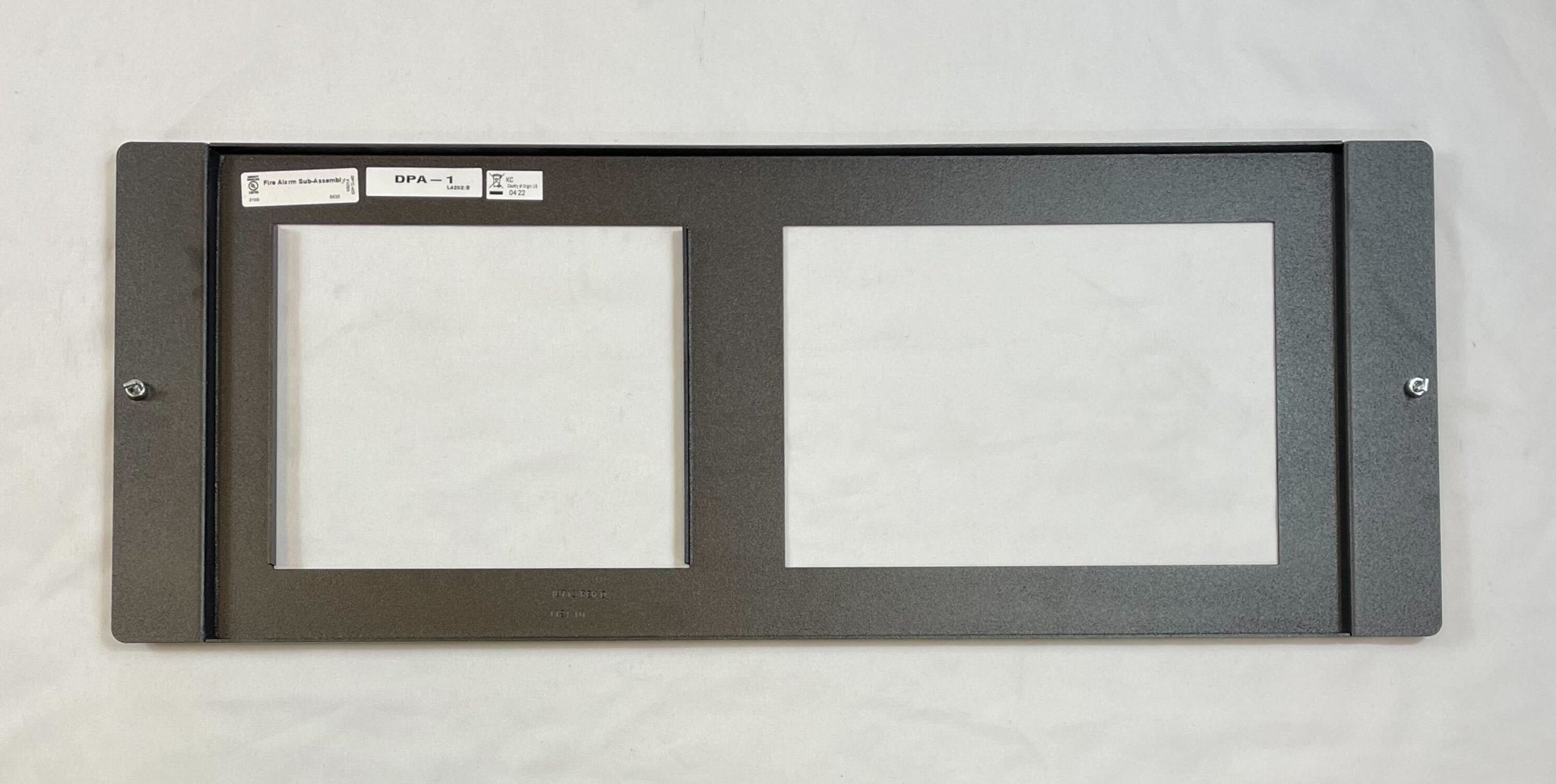

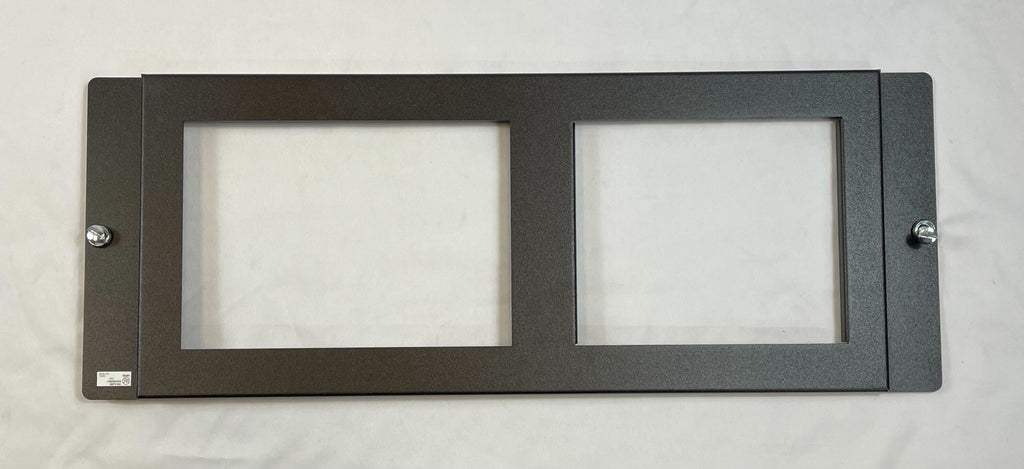

Notifier DPA-1 — one row dress panel for a CA-1 chassis carrying a Digital Voice Command board, a DVC-KD keypad and a CMIC-1 microphone.
The CA-1 occupies one row of a CAB-4 Series enclosure, DVC board on the left and an optional CMIC-1 microphone and well on the right. The DPA-1 is the trim plate that closes that row, and Notifier describes it as having an opening revealing a DVC keypad and CMIC-1. It is passive sheet metal, so what a buyer gets wrong is the configuration.
- For the CA-1 chassis when configured with a DVC, DVC-KD and CMIC-1
- The CA-1 mounts in a size B, C or D CAB-4 Series cabinet, one row
- DVC-KD is the keypad for local annunciation and control, with status LEDs and 24 programmable buttons
- CMIC-1 is the MIC-1 microphone plus its well assembly
- CA-1 installations use standard CAB-4 doors, DR-B4, DR-C4 or DR-D4, not the ADDR window doors
Order the DPA-1A4 instead when no CMIC-1 is fitted: it covers the two empty right hand bays with blank plates, two ACS annunciators or option cards. The DPA-2B dresses the two row CA-2, and the DP-CFFT a CFFT-1 telephone chassis below a CA-1.
