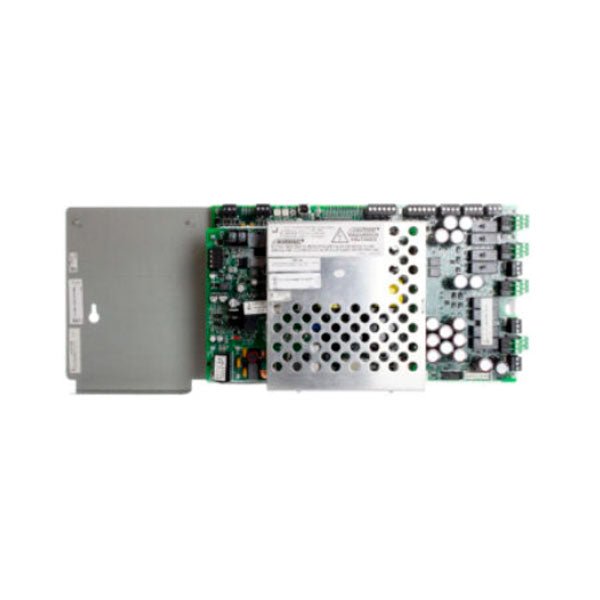

Notifier DAA2-7525 — DAA2 Series digital audio amplifier, 75 W at 25 VRMS, 120 VAC.
The amplifier accesses and processes one of up to eight audio channels carried on the DVC audio loop, amplifies it, and distributes it to speaker circuits. It is the building block of a Notifier emergency voice communication riser.
- 75 W total output power at 25 VRMS
- Four Class B outputs or two Class A high-level audio outputs
- 120 VAC input, maximum current draw 4.68 A
- 24 V AUX output at 0.5 A, power-limited
- Firefighter telephone riser supports 7 active firefighter telephones
- An optional BDA digital backup amplifier can be mounted for one-to-one amplifier back-up or to support two-channel operation
- UL certified to UL Standard 864, 9th edition
- Shipping weight 13 lb (5.9 kg)
Note the output voltage: this is the 25 V version. Specify the 70 V model instead where the speaker circuits are designed for 70 V.
Documents
FAQ
Where does the DAA2-7525 get its audio?
From the DVC digital audio loop (DAL). Each DAA2 accesses one of up to eight audio channels, and up to 32 devices such as DAA2 amplifiers can be on the DAL of one DVC.
What batteries can it charge?
The DAA2-7525 charges 7 Ah to under 50 Ah batteries. Batteries can sit in a CHS-BH1 chassis (two 12 Ah batteries) beside the amplifier, in the cabinet battery row, or in an adjacent cabinet.
Can it have a backup amplifier?
Yes. An optional BDA-25V backup digital amplifier mounts directly on the DAA2 for one-to-one backup or to add a second audio channel.
How does it mount?
It comes factory installed on its chassis and mounts in one row of any EQ or CAB-4 Series cabinet; a DP-1B dress panel covers the CAB-4 row.
