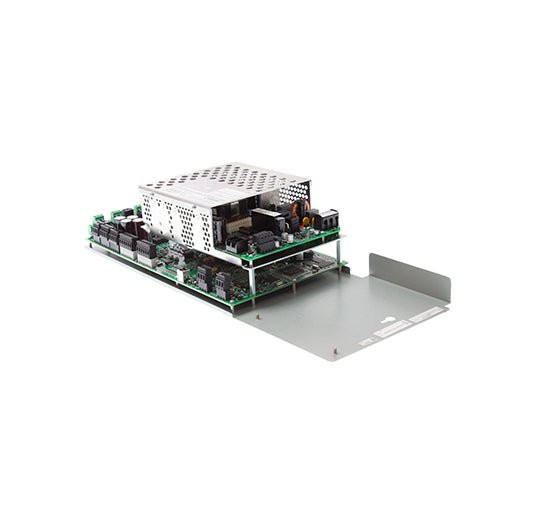

Notifier DAA2-5025 — 120 VAC digital audio amplifier, 50 W at 25 VRMS, for Notifier DVC digital voice command systems.
Each DAA2 takes one of up to eight audio channels from the DVC digital audio loop (DAL), amplifies it and distributes it to speaker circuits. Up to 32 devices such as DAA2 amplifiers can be connected to the DAL on one DVC, and DAA2 amplifiers can be mixed with DAX and DAA amplifiers on the same loop.
Specifications
| Output |
50 W total at 25 VRMS |
| Speaker circuits |
Four Class B or two Class A outputs (four Class A with the DCADC expander) |
| AC input |
120 VAC, 60 Hz, 4.68 A maximum |
| Auxiliary output |
24 V at 0.5 A, power-limited |
| Message backup |
Up to 106 seconds of stored digital messages |
| Shipping weight |
13 lb (5.9 kg) |
| Standards |
UL 864 9th edition, ULC-S527-11, NFPA 72 |
Features
- Two wire digital audio ports that can be converted to fiber with DS-FM or DS-SFM option modules
- Optional BDA-25V backup amplifier for one-to-one backup, two-channel operation or up to 100 W
- Firefighter telephone riser and RM-1 remote microphone option
- Auxiliary 1 VRMS input for background music or telephone paging
- Programmable through VeriFire Tools
Installation notes
- Ships mounted on its chassis and installs in one row of any EQ or CAB-4 Series cabinet; a DP-1B dress panel covers the CAB-4 row.
- Batteries can go in the CHS-BH1 chassis (two 12 AH batteries) beside the amplifier, in the cabinet battery row, or in an adjacent cabinet.
Related models
-
DAA2-5070 — 50 W at 70 VRMS.
-
DAA2-7525 — 75 W at 25 VRMS.
Documents
FAQ
Where does the DAA2-5025 mount?
It ships on its chassis and mounts in one row of any EQ or CAB-4 Series cabinet. A DP-1B dress panel covers the CAB-4 row.
Can it have a backup amplifier?
Yes. The BDA-25V backup digital amplifier mounts directly onto the DAA2 for one-to-one backup or a second audio channel, and on DAA2-50 models can raise output to 100 W.
Can the audio loop run on fiber?
Yes. One or two fiber option modules plug onto the DAA2: DS-FM for multi-mode or DS-SFM for single-mode fiber.
Where do the batteries go?
In a CHS-BH1 battery chassis holding two 12 AH batteries, in the battery row of a CAB-4 or EQ cabinet, or in an adjacent cabinet.
