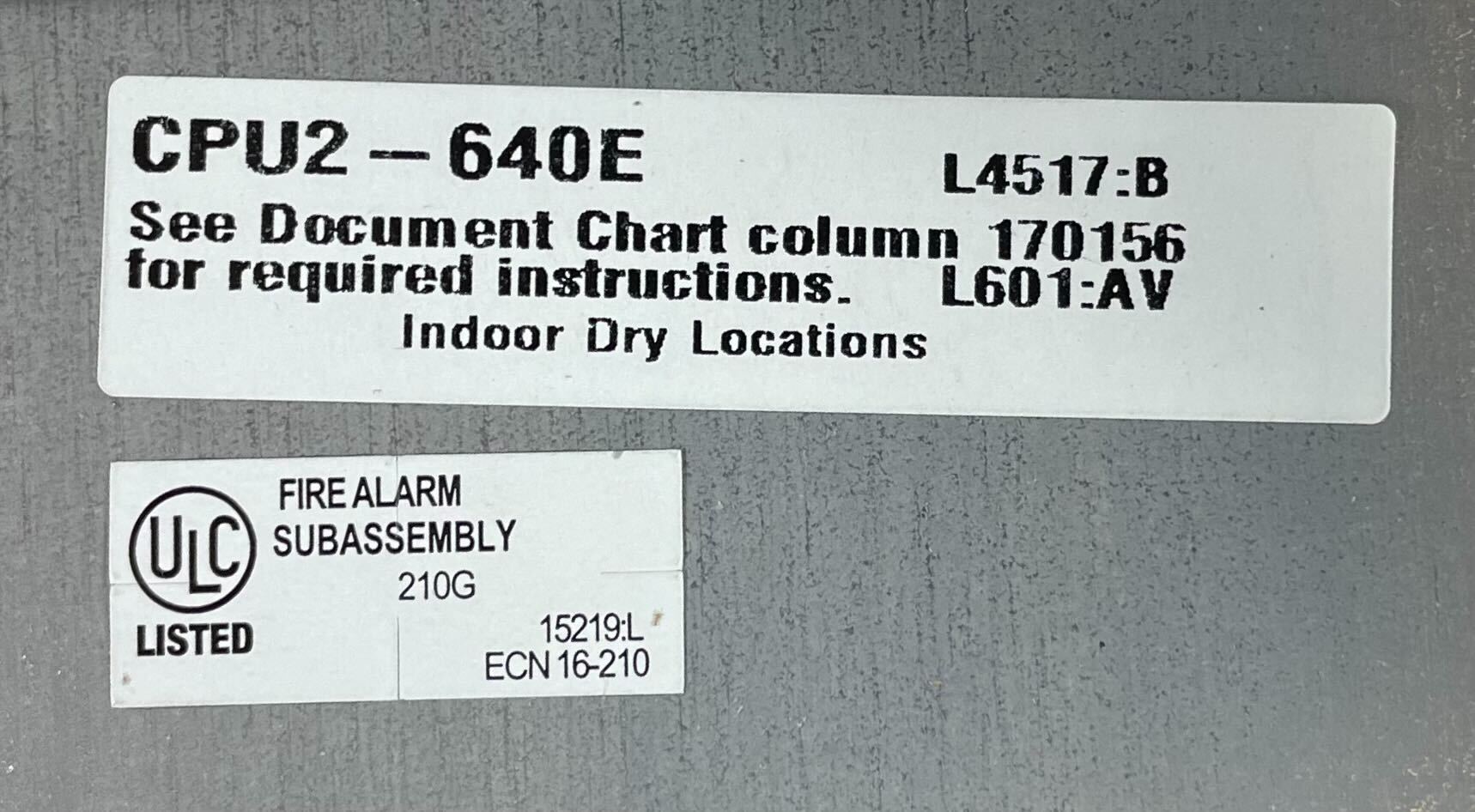

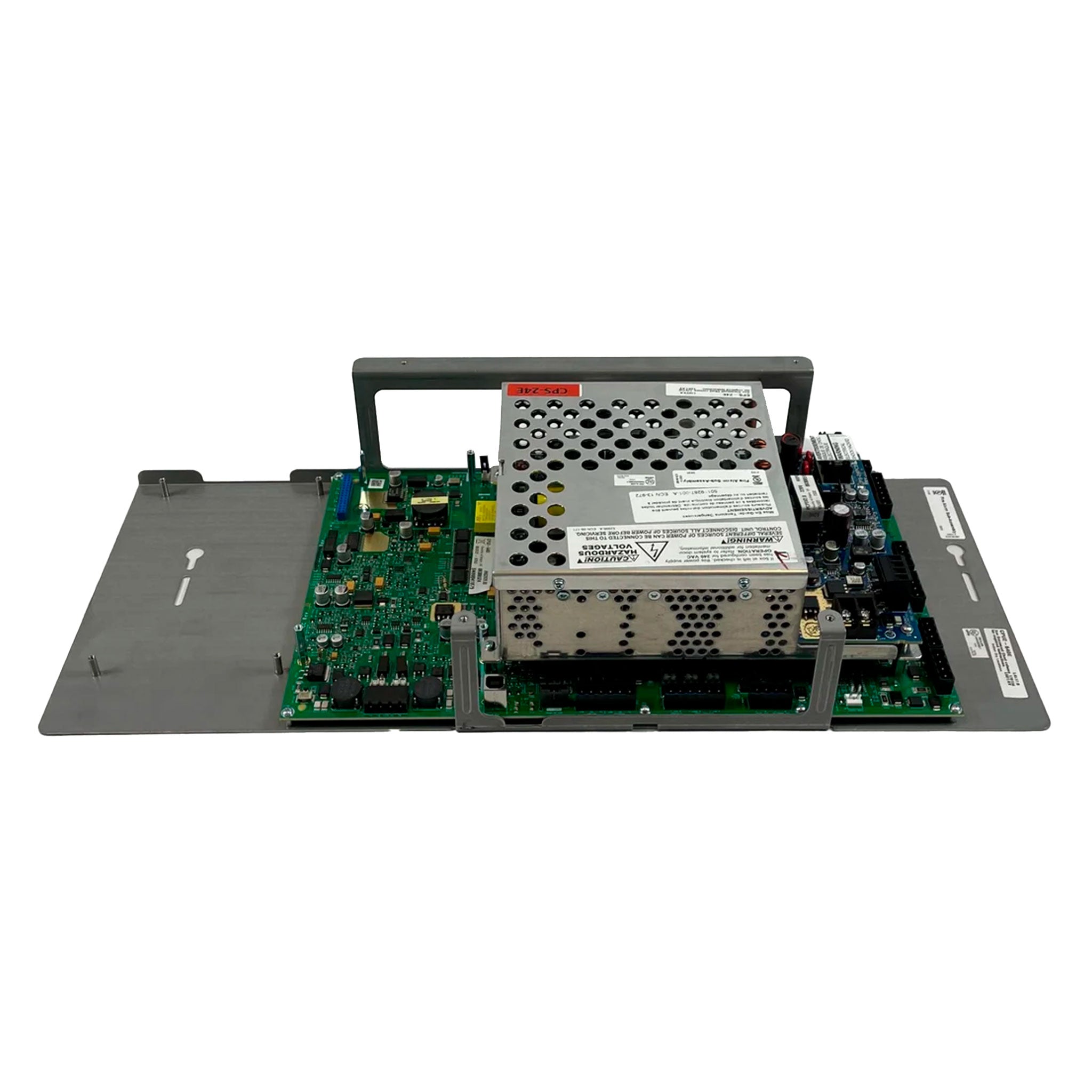

Notifier CPU2-640E — central processing unit and integral power supply for the NFS2-640E intelligent addressable fire alarm control panel.

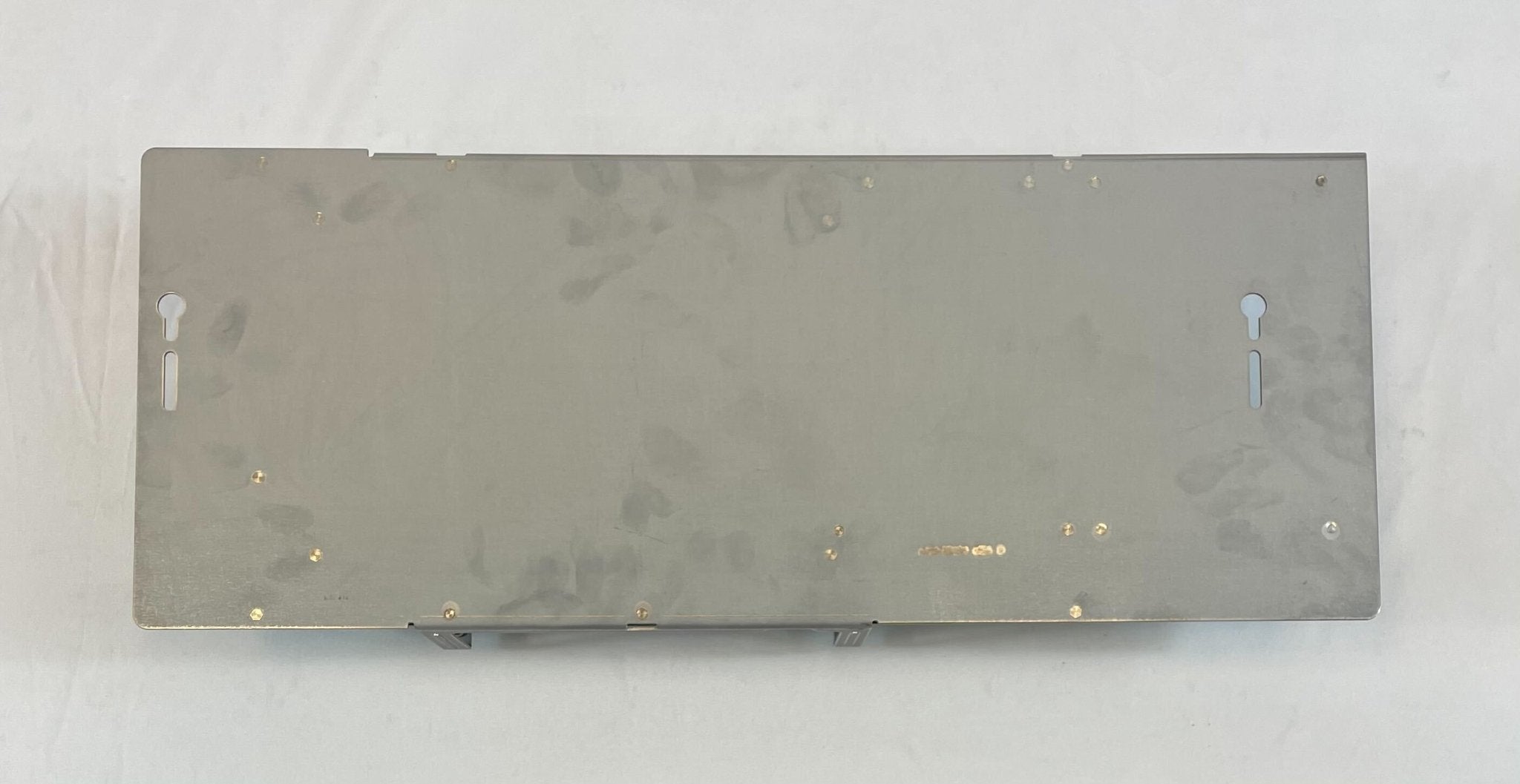

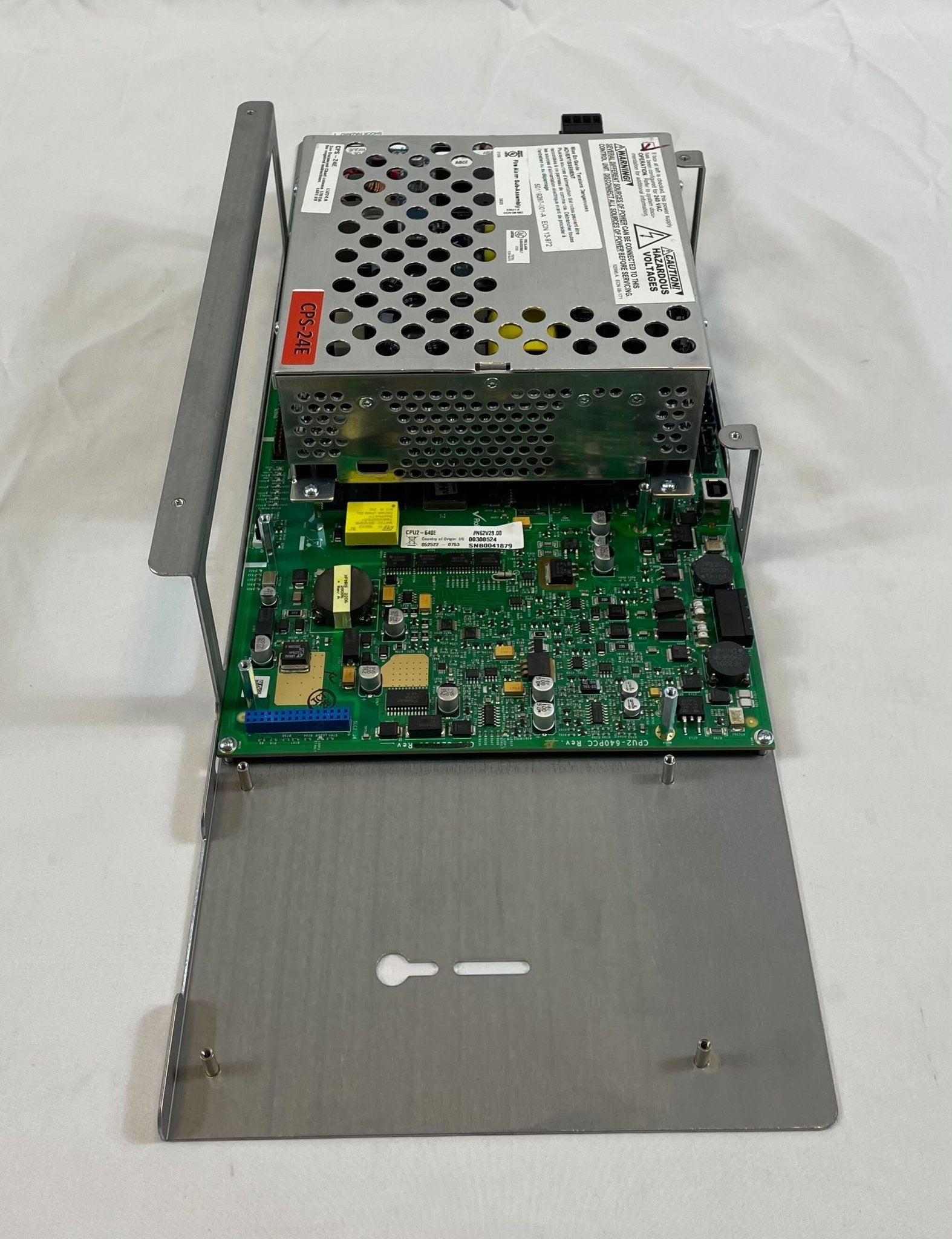

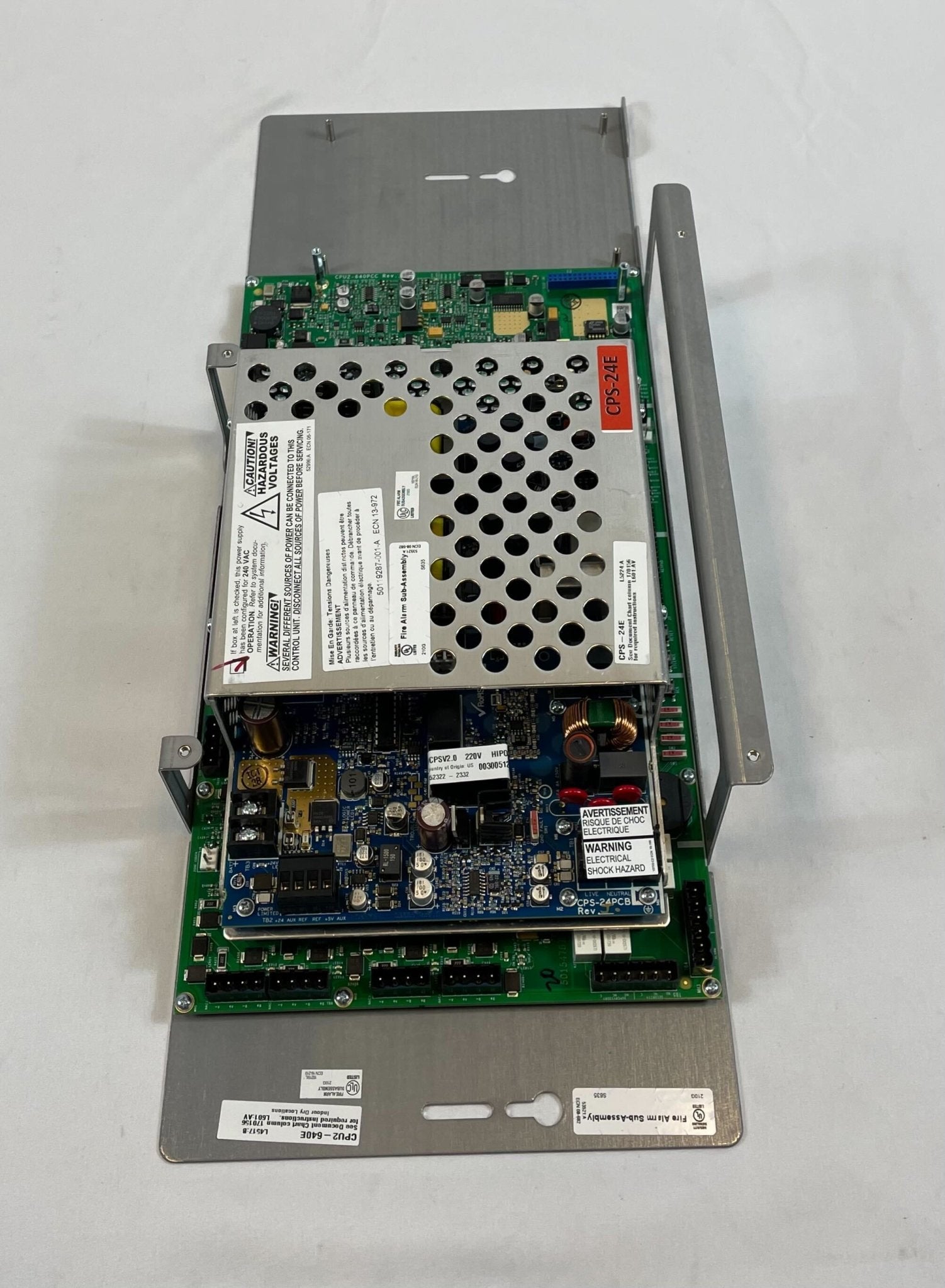

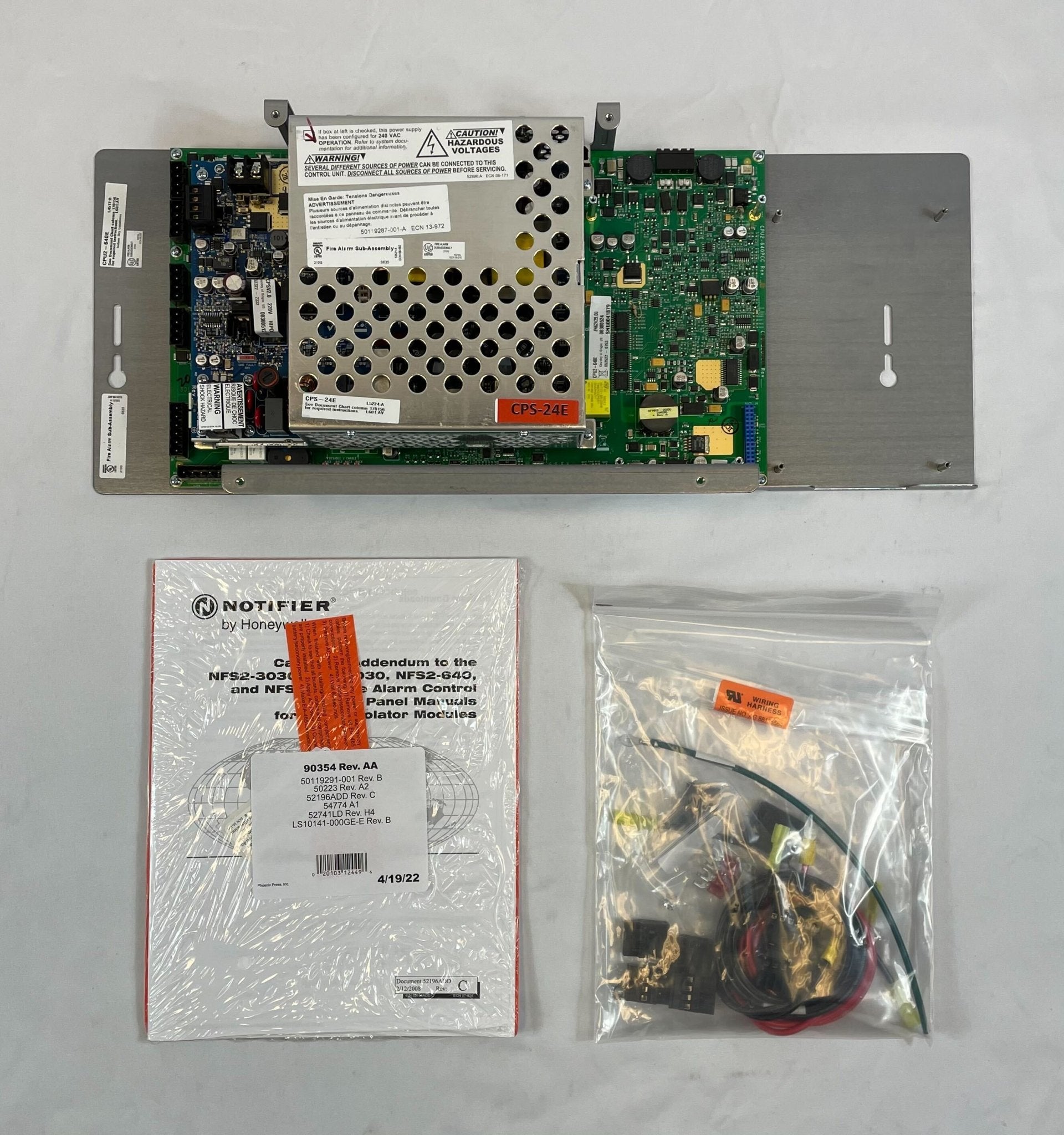

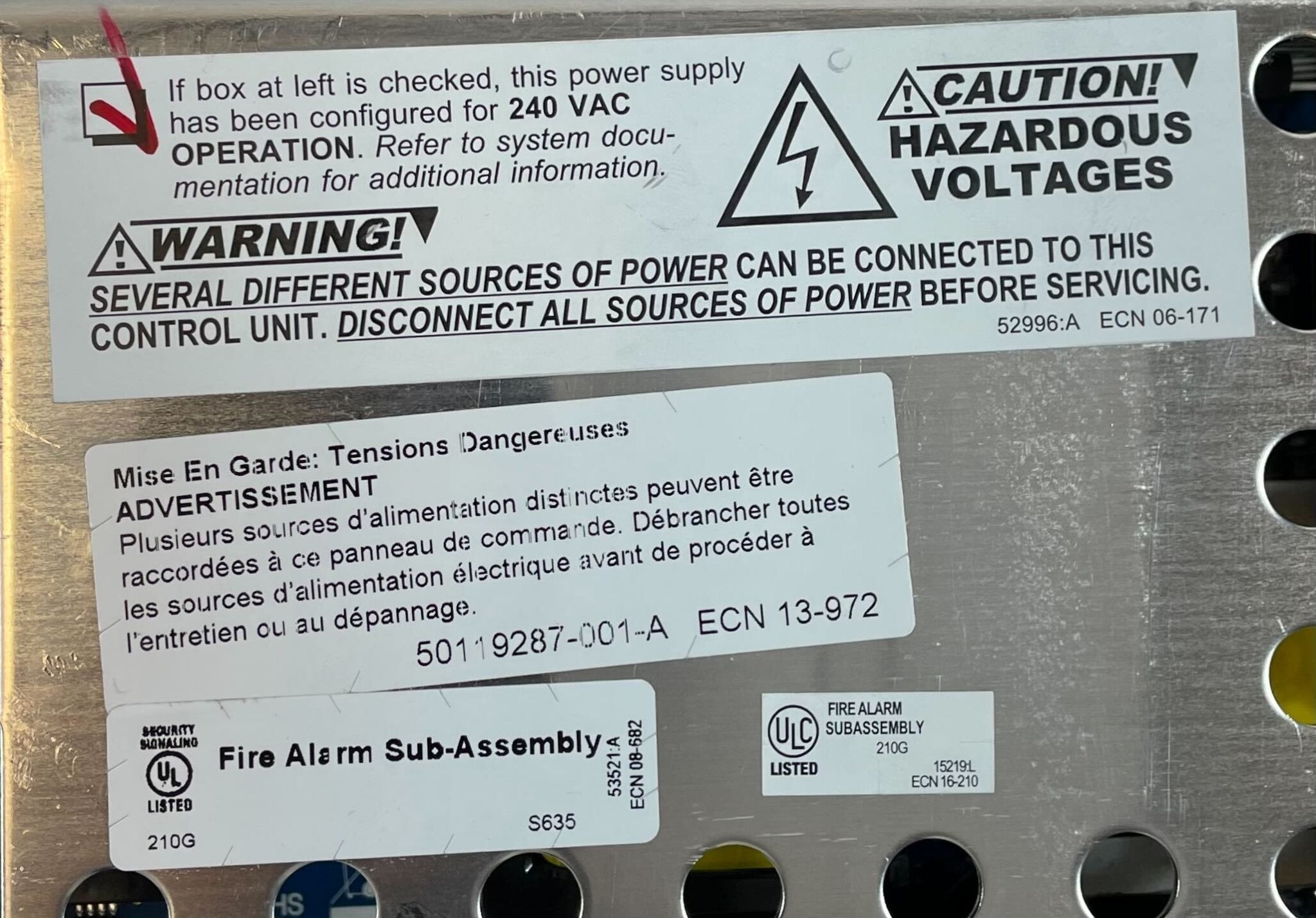

The E suffix marks the 240 VAC mains version; the otherwise identical CPU2-640 is the 120 VAC board. It ships factory-mounted on its chassis and carries the FlashScan polling, the built-in notification circuits and the battery charger for a complete ONYX Series NFS2-640E system.
- Primary input 220/240 VAC, 50/60 Hz, 2.5 A
- Offline switching supply rated 3.0 A, 6.0 A in alarm, shared by all internal circuits
- One isolated intelligent signaling line circuit expandable to two, Class A, B or X
- 159 intelligent detectors plus 159 monitor or control modules per loop
- Four notification circuits at 1.5 A each; resettable 24 V at 1.25 A
- Battery charger range 18 to 200 AH at a 27.6 V float rate

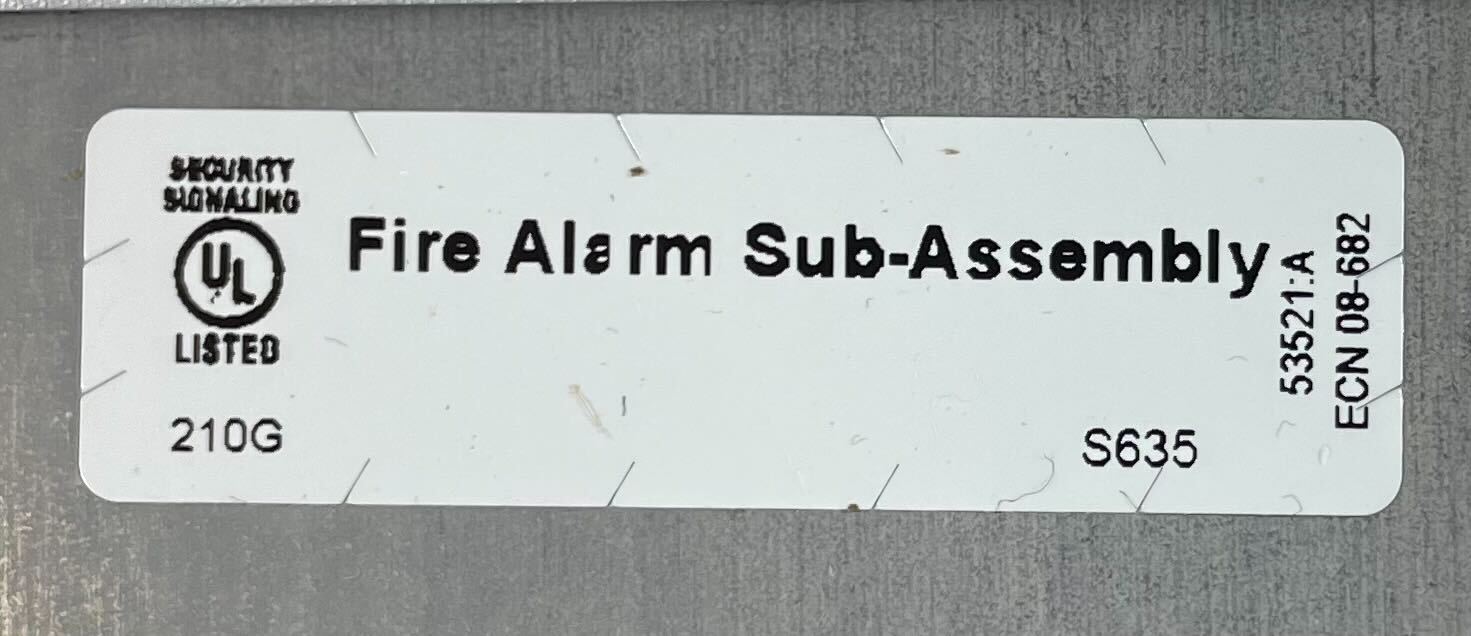

- UL and ULC Listed S635 and FM Approved; shipping weight 14.55 lb
Confirm the mains voltage before ordering, because the CPU2-640 is the same board built for 120 VAC. CPU2-640E-PO and CPU2-640E-SP are the Portuguese and Spanish versions of this part.
