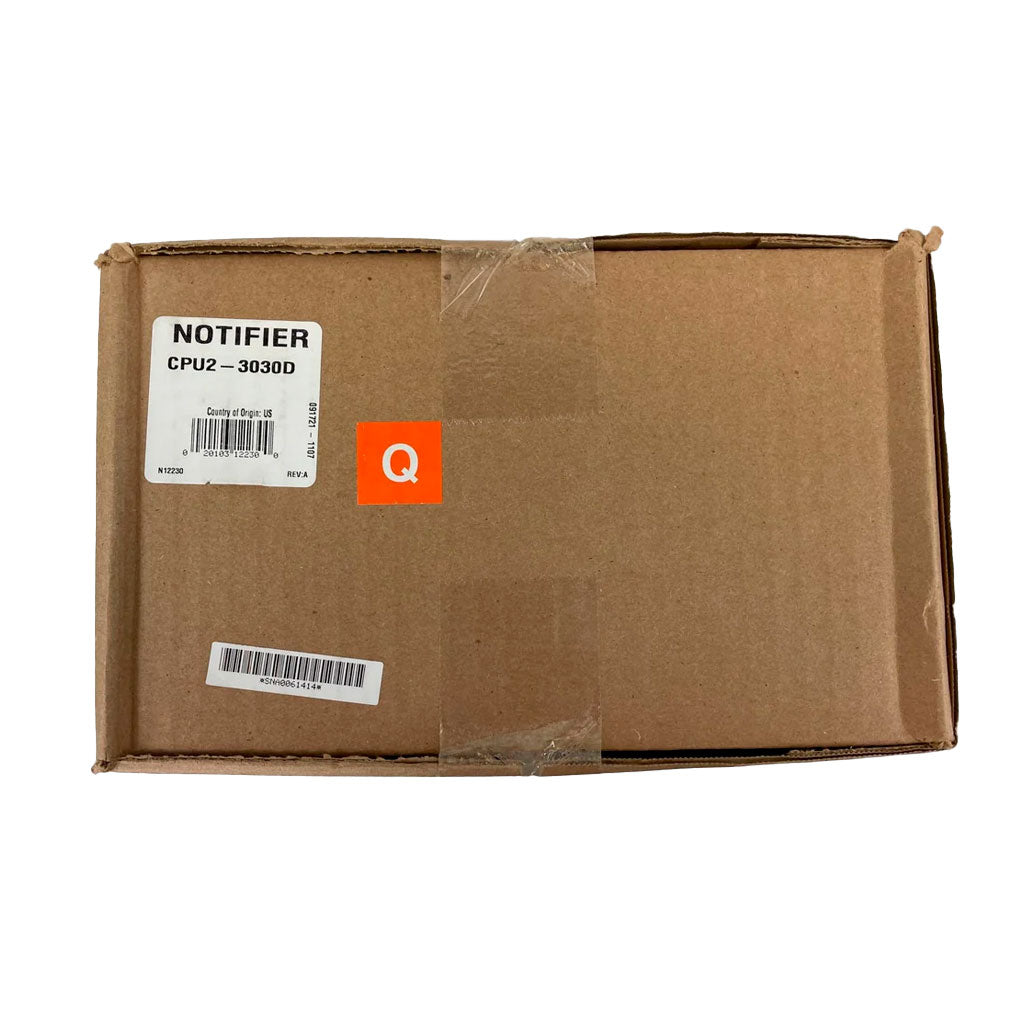

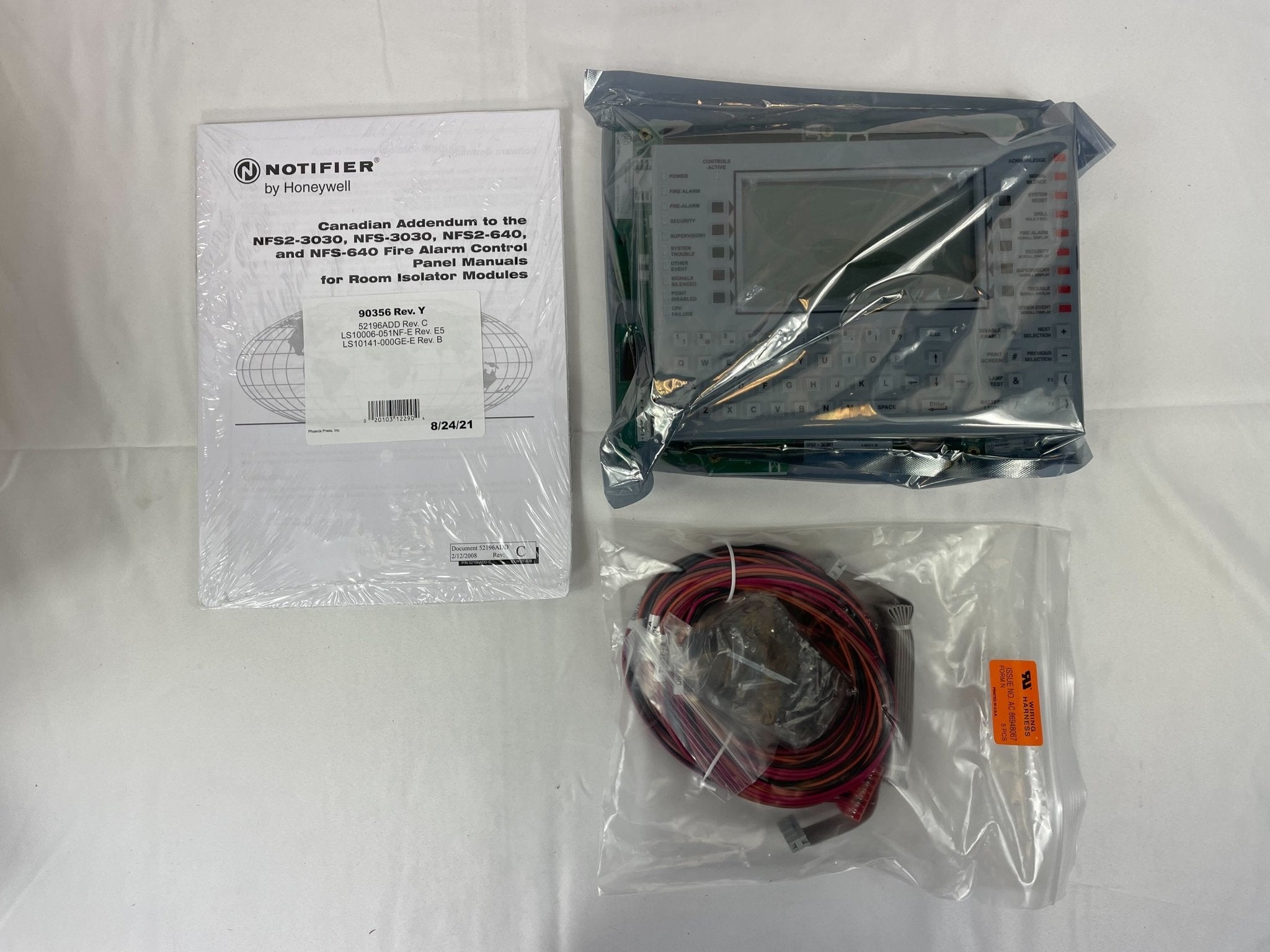

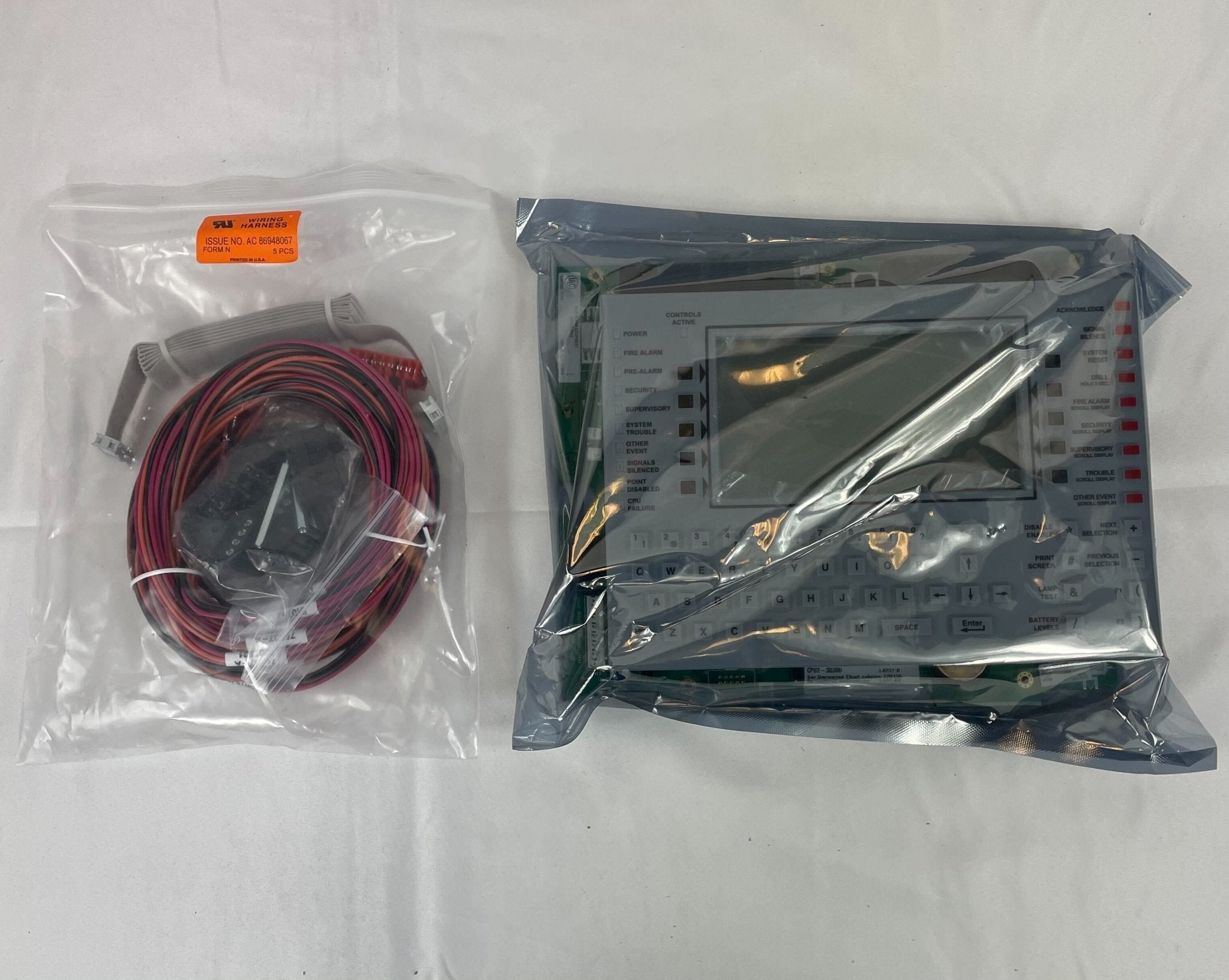

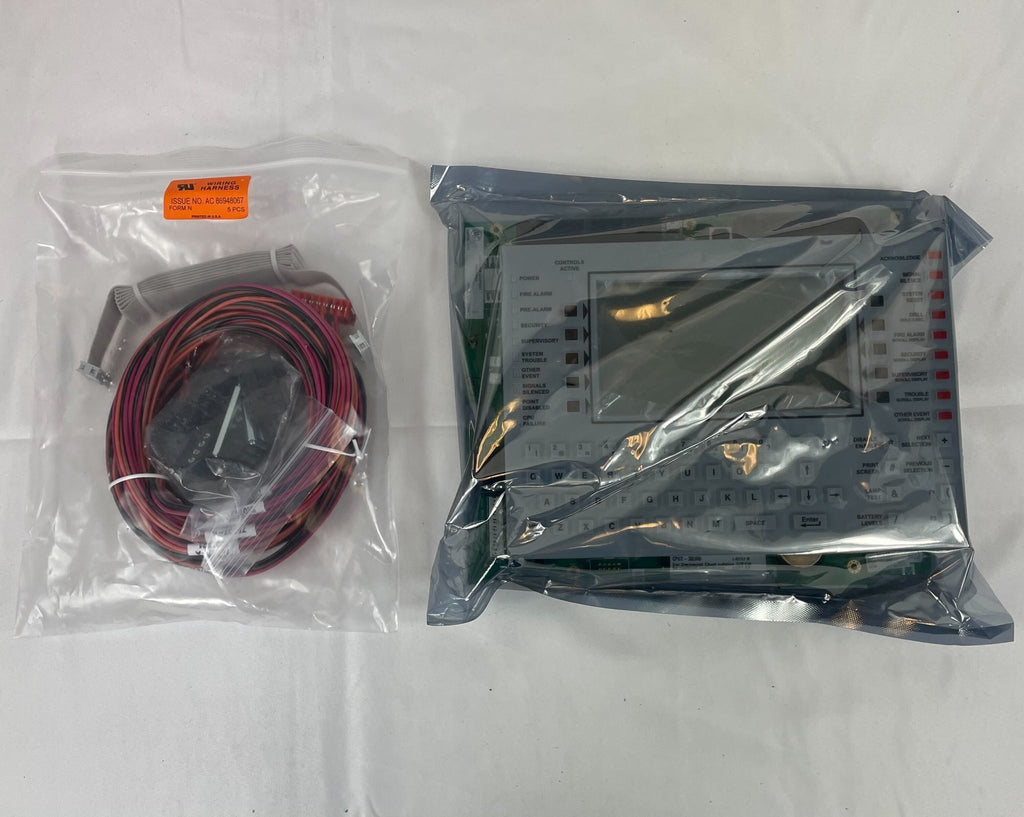

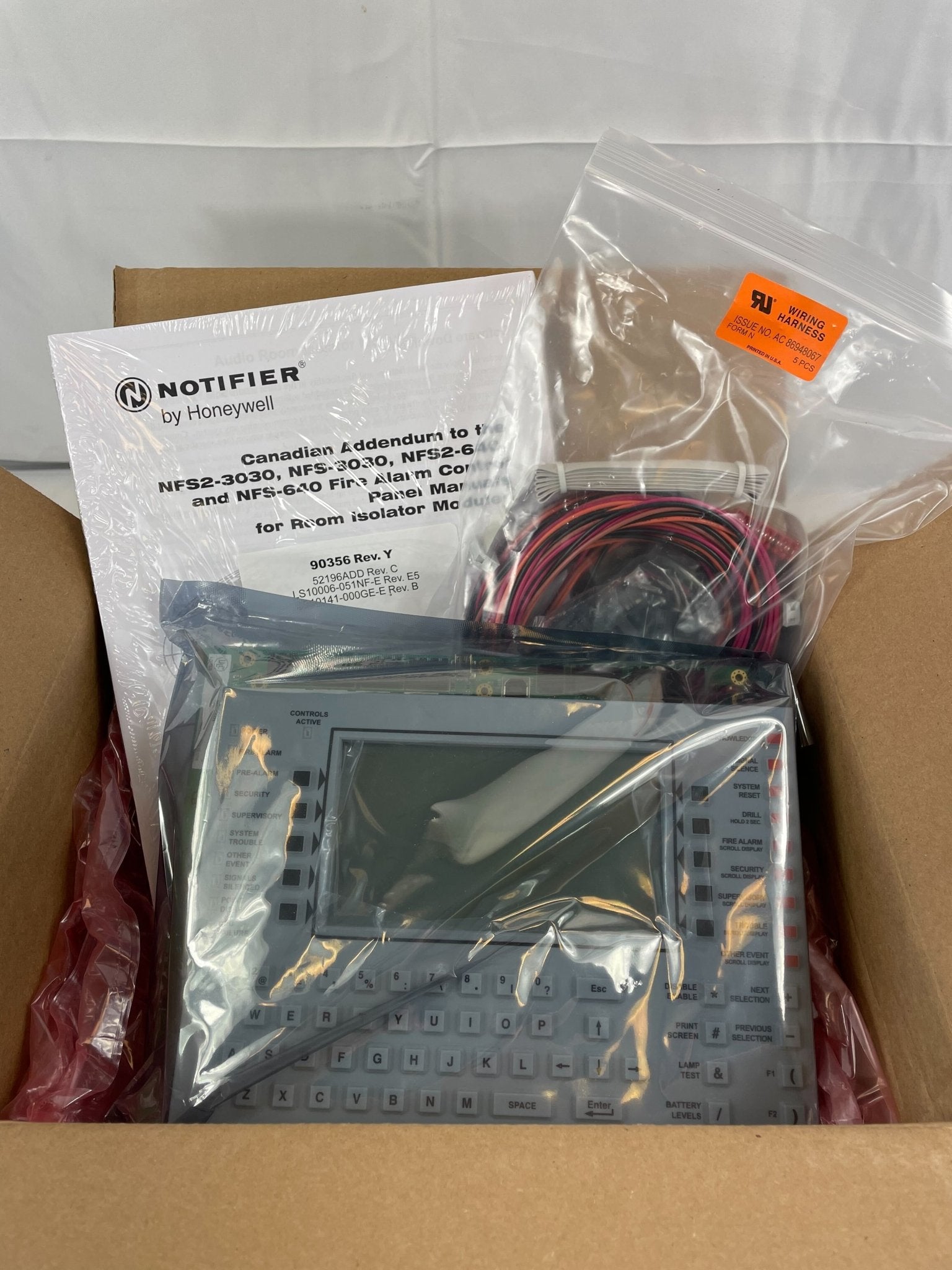

Notifier CPU2-3030D — central processing unit for the NFS2-3030 addressable fire alarm panel, shipped with its 640-character keypad and display installed.
This is the board that runs the panel and the operator interface in one assembly, which is why data sheet DN-7070 lists it as the panel primary display. It is not an add-on annunciator.
- Backlit LCD of 640 characters, 16 lines × 40 characters, with full QWERTY keypad
- 11 LED indicators plus Acknowledge, Signal Silence, Drill, Reset and Lamp Test controls
- Drives 1 to 10 signaling line circuits and up to 3,180 devices per panel
- Draws 0.340 A; requires an AMPS-24(E) supply and one CHS-M3 chassis
- Supports 32 ACS annunciator addresses at 64 or 96 points each
- UL/ULC listed S635, FM approved, FM6320 approved for gas detection
The direct sibling is the CPU2-3030ND, the same processor without a display, drawing 0.120 A. CPU2-3030DC is the English ULC version. Do not confuse the board with the DP-DISP, the dress panel that trims the top row once a CPU2-3030D is fitted.
