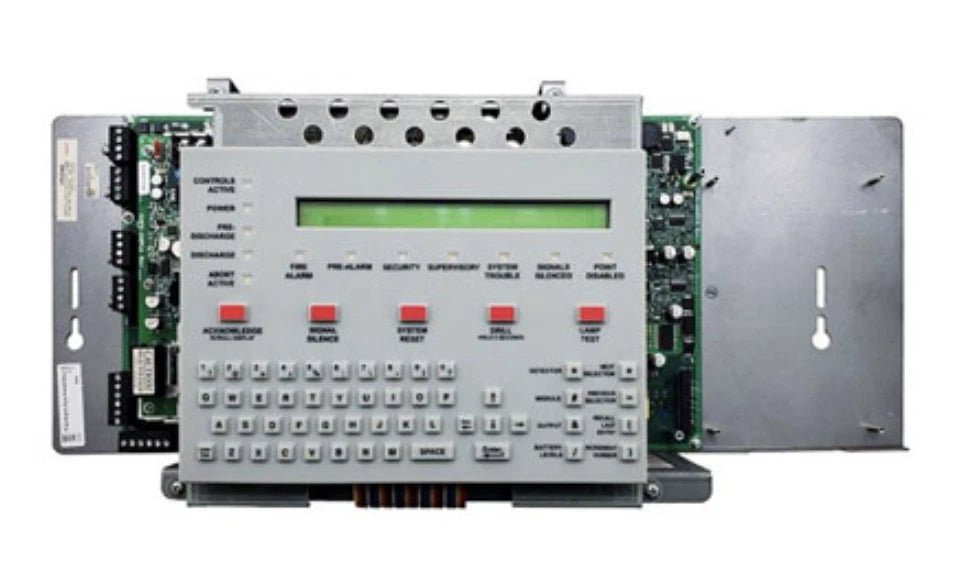

At the core of every Notifier NFS-320SYS system is the CPU-320SYS: an FACP factory-mounted on a chassis with an integral 3.0 A (6.0 A in alarm) power supply and one Signaling Line Circuit. It belongs to Notifier's ONYX Series and works as a stand-alone panel for small to large buildings or as a node on a larger network.
Key Features
- One isolated intelligent SLC (Style 4, 6 or 7) supporting up to 159 detectors and 159 modules (318 devices)
- FlashScan protocol polls up to 318 devices in under two seconds
- Four built-in Class A/B NACs with selectable System Sensor, Wheelock or Gentex strobe synchronization
- Built-in Alarm, Trouble and Supervisory relays
- Standard 80-character display and full QWERTY keypad
- 800-event history file plus a separate 200-event alarm-only file
Specifications
-
Manufacturer: Notifier
-
Part Number: CPU-320SYS
-
System: NFS-320SYS
-
Power Supply: Integral 3.0 A (6.0 A in alarm)
-
SLC Capacity: 1 SLC; 159 detectors + 159 modules (318 devices max.)
-
Display: 80-character, included
-
Included: Factory-mounted chassis, 80-character display, documentation kit
-
Batteries: Two 12 V batteries, 18 to 200 AH (sold separately)
-
Listings: UL listed, ULC listed, FM approved (basic control panel)
-
Ordering: Order one per system, or as needed on a network system. A non-English version is also available: CPU-320SYS-FR
Compatibility
Supports FlashScan intelligent detectors and modules and can connect to Notifier's high-speed network (up to 200 nodes) or standard network (up to 103 nodes) with other ONYX Series panels, such as the NFS2-3030 and NFS2-640.
