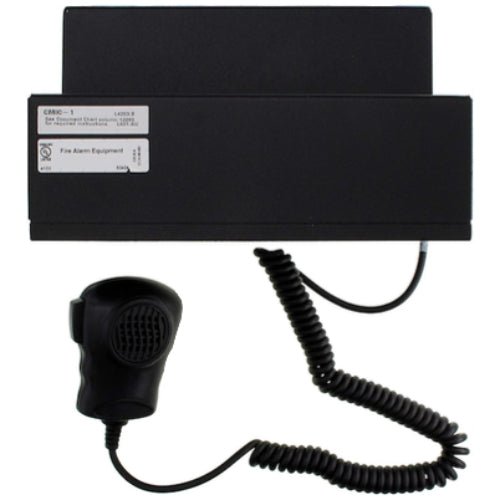

Notifier CMIC-1 is the optional paging microphone and microphone well assembly for the CA-1 chassis in a Notifier DVC Digital Voice Command system. It gives the voice command station a local paging microphone.
The CA-1 chassis occupies one tier of a CAB-4 Series enclosure. Its left side holds one DVC and an optional DVC-KD keypad, and its right side houses the CMIC-1 microphone and well. A DPA-1 dress panel is used with the CA-1 when it is configured with a DVC, DVC-KD and CMIC-1.
Specifications
| Type |
Paging microphone and microphone well |
| Mounts in |
Right side of the CA-1 chassis |
| Enclosure |
CAB-4 Series cabinet, one tier |
| Color |
Black |
| Dress panel |
DPA-1 |
Installation notes
- Order the CA-1 chassis, DVC and DPA-1 dress panel separately
- DPA-1A4 is the dress panel to use when the CMIC-1 is not fitted
- A DVC-RPU can also be built into a CAB-4 cabinet using a CA-1 chassis and a CMIC-1
Related models
CMIC-RP is the microphone and well used in the small CAB-RP wall cabinet.
