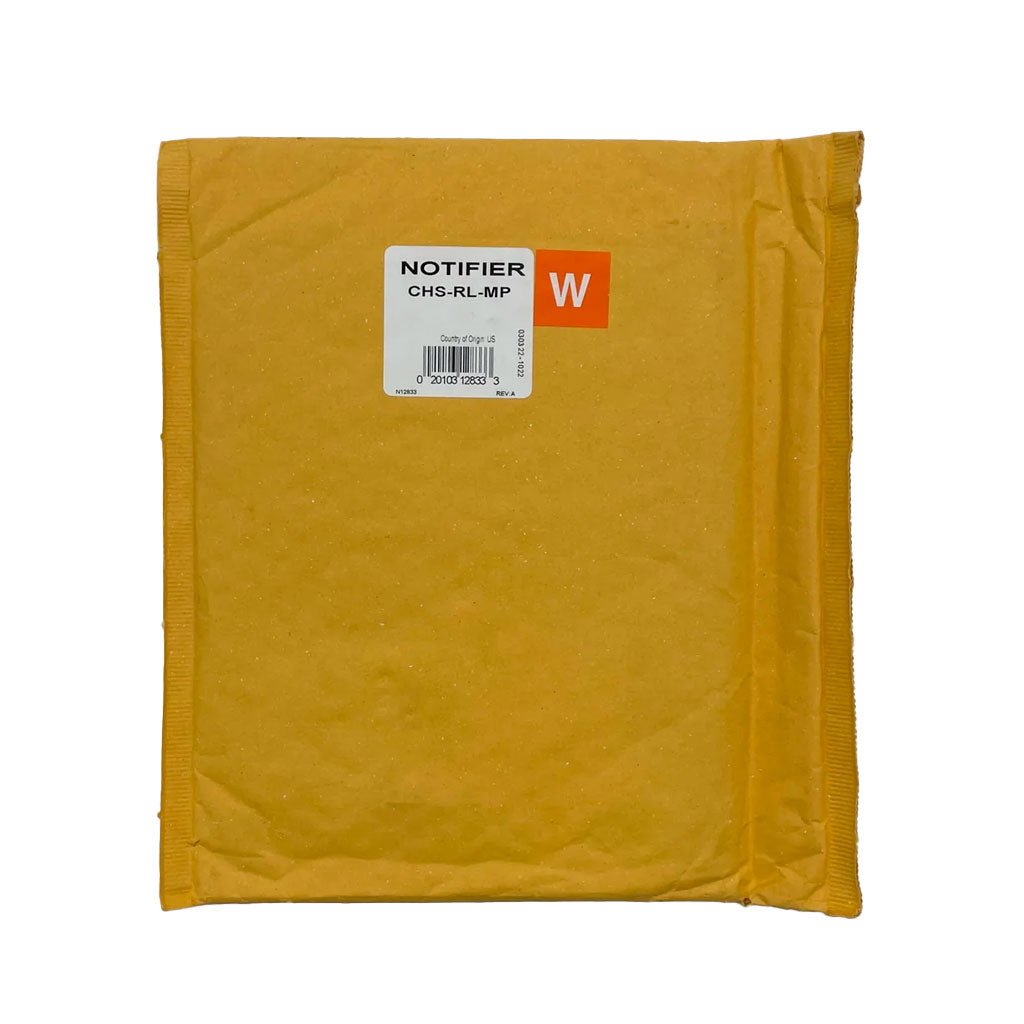

Notifier CHS-RL-MP — cabinet mounting hardware for the HS-NCM High-Speed Network Communications Module. The listing note that it is for the HS-NCM is correct.
The HS-NCM connects a panel to High-Speed NOTI-FIRE-NET. Wire versions can go on a dress panel, but fiber versions must sit in a fixed position inside the back box so the fiber is not over-bent. The CHS-RL-MP is the mounting part Notifier calls out for that case, and it has its own installation document, P/N 53215.
- HS-NCM Installation Document 54014:C1 covers mounting wire or fiber HS-NCM versions on the CHS-RL-MP chassis
- NCA-2 Manual 52482:M9 states that a fiber connection network control module is to use the CHS-RL-MP chassis
- Notifier groups it under Cabinets and Chassis in its related documentation tables
- Applies to the HS-NCM family: HS-NCM-W, -MF, -SF, -WMF, -WSF and -MFSF
- The module it carries draws 24 VDC at 400 mA and operates from 0 to 49 °C
Do not substitute an option-module chassis. CHS-4L, CHS-4N, CHS-M3, CHS2-M3 and CHS-2D are full card chassis, and BMP-1 is the blank module plate used to door-mount an HS-NCM-W.
