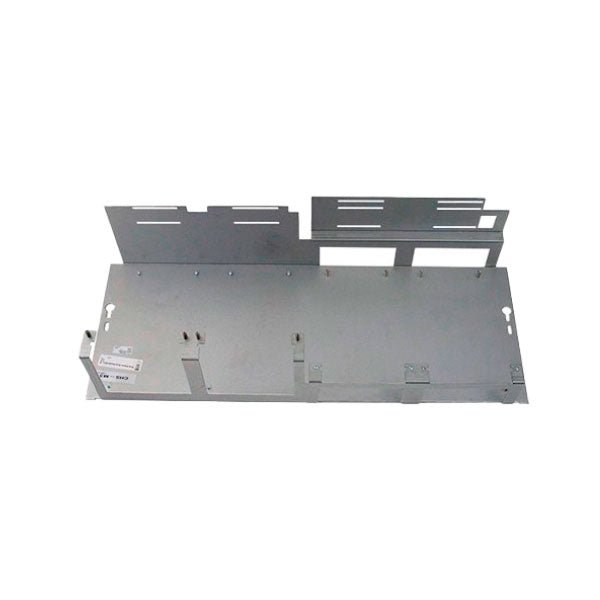

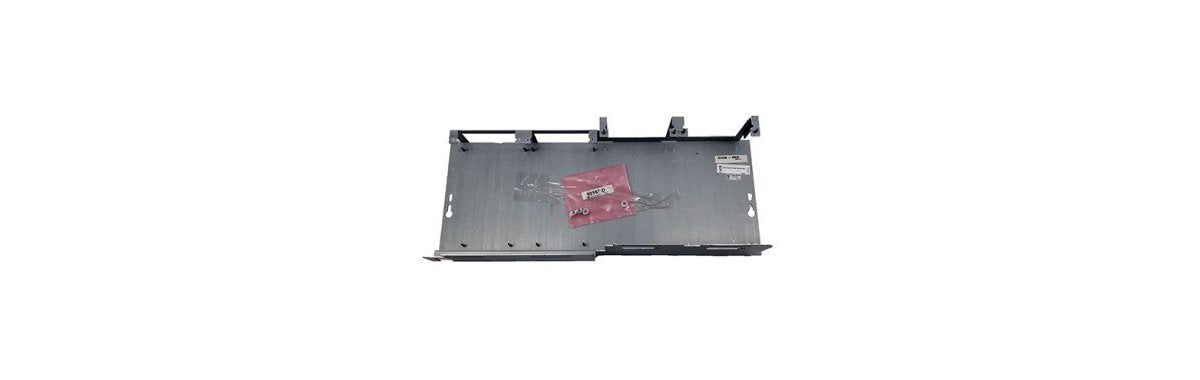

Notifier CHS-M3 — four-position mounting chassis that carries the CPU2-3030 in the top row of an NFS2-3030 fire alarm control panel.
An NFS2-3030 mounts in a CAB-4 series backbox on either a CHS-M3 or a CA-2 audio chassis. On the CHS-M3 the CPU and its optional display take positions 1 and 2, leaving 3 and 4 for option boards and annunciators. One is required per CPU, so it is part of every panel build rather than an upgrade accessory.
- Four chassis positions; positions 3 and 4 accept up to four layers of equipment
- Mounts in the top row of a CAB-4 series backbox, A through D size
- One required per CPU2-3030D or CPU2-3030ND
- CPU sits on three stand-offs: 1.5 in. for the CPU2-3030D with keypad and display, 0.25 in. for the CPU2-3030ND
- Takes LCM-320, LEM-320, NCM and HS-NCM, TM-4 and DPI-232 boards; annunciators may be door-mounted in front of it
It is easily confused with the other chassis in the same cabinet: CHS-4L holds AA-30 amplifiers, CHS-4N up to four APS-6Rs, CHS-6 the XP6 and XP10 multi-modules, and CHS-BH1 is a battery chassis.
