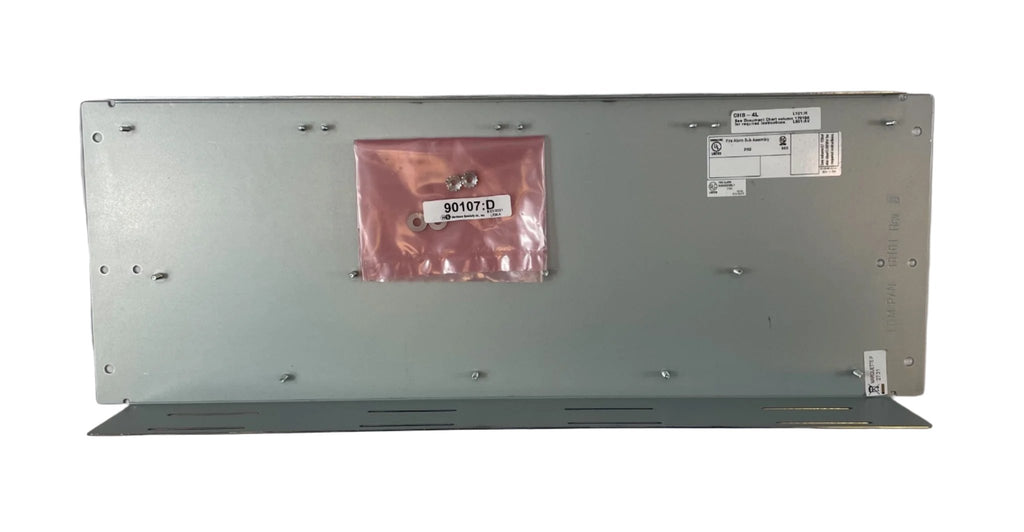

Notifier CHS-4L — low-profile four-position mounting chassis for NOTIFIER intelligent addressable fire alarm control panels.
The CHS-4L is carrier hardware: it holds no electronics and supplies no power, but it is what lets amplifiers, power supplies and network cards sit in a panel row. Four positions are available and the larger boards occupy two each, which is why a four-position chassis is rated for two amplifiers rather than four.
- Mounts two AA-30 audio amplifiers, or one AMG-E together with one AA-30
- The AA-30 is a 30 watt, 25 VRMS amplifier with input supervision and automatic switchover
- An APS2-6R auxiliary power supply takes two of the four positions on a CHS-4L or CHS-4
- NCM-W and NCM-F network communications modules also install in it
- Named in the current parts lists of both the NFS2-3030 and the NFS2-640
Do not confuse it with its neighbours in those lists: the CHS-4 and CHS-4N each mount up to four APS-6R supplies, the CHS-6 takes up to six XP6 or XP10 multi-modules, and the CHS-M3 is the chassis required for each CPU2-3030D.
