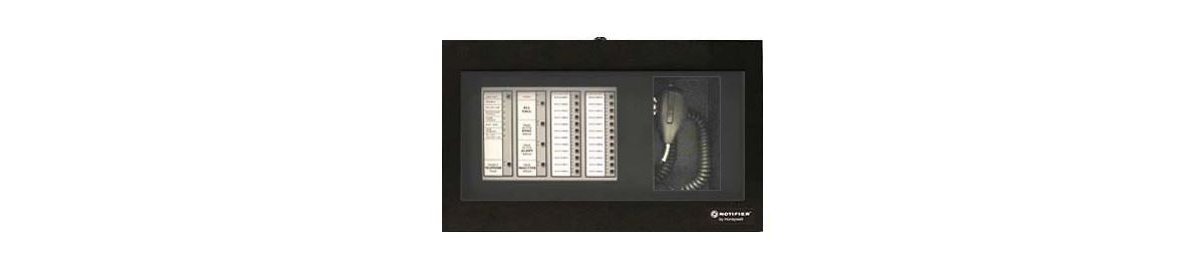

Notifier CAB-RP is a small black wall-mounted cabinet for building a DVC-RPU remote paging station in MNS/ECS applications. It houses a DVC-RPU keypad/display and a CMIC-RP microphone and well.
The door gives a clear view of the interior and hinges downward for access from any direction. The Notifier key lock can be swapped for the included thumb-turn latch, although keyless entry is not intended for UL 864 remote microphone use and needs AHJ approval. The cabinet has a mounting location for an STS-200 tamper switch, ordered separately and monitored by a module such as the FMM-1.
Specifications
| Type |
Single-row wall-mounted cabinet |
| Color |
Black (CAB-RPR for red) |
| Houses |
DVC-RPU and CMIC-RP |
| Alternate use |
Two positions for ACM-24AT or AEM-24AT annunciators or a BMP-1 blank plate |
| Lock |
Notifier key lock; thumb-turn latch included |
| Tamper |
Provision for STS-200 tamper switch |
Installation notes
- An RM-1 remote paging microphone can be fitted on the right side where the DVC-RPU is not used
- Custom labels are supported; DVC-RPU ships with MASS NOTIFICATION and HVAC EMERGENCY SHUTDOWN labels for use with AHJ approval
- For larger stations use a CAB-4 Series cabinet with a CA-1 chassis and CMIC-1
Related models
CAB-RPR is the red version.
