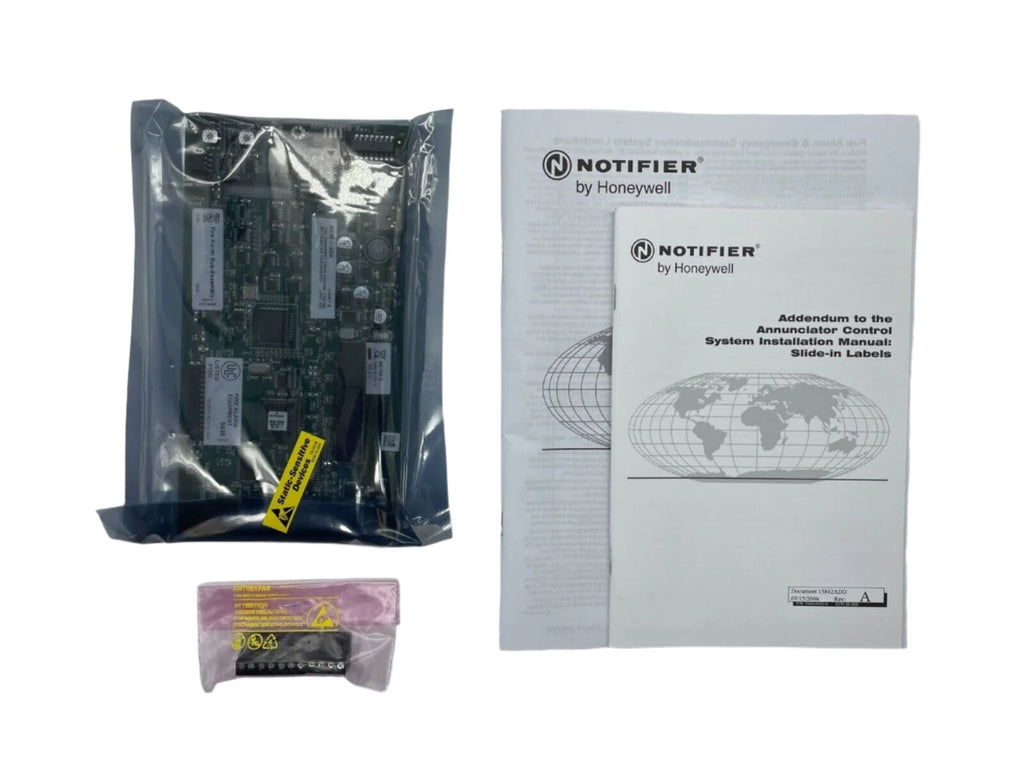

Notifier ACM-48A is an ONYX Series ACS annunciator control module with 48 annunciation points. Each point has an Alarm/Circuit On LED (for control relays the LED shows ON/OFF), and each column of 24 points can be color-configured red, green or yellow with a DIP switch. The module also has a System Trouble LED, an On-Line/Power LED and a local piezo sounder with a Silence/Acknowledge switch.
The ACM-48A annunciates points on Notifier ONYX Series fire alarm control panels, network control annunciators and legacy addressable panels. It communicates over an EIA-485 serial loop and can be located up to 6,000 ft from the panel. One AEM-48A expander raises capacity to 96 points.
Specifications
| Points |
48 annunciation points |
| LED colors |
Red, green or yellow, set per column of 24 |
| Expansion |
One AEM-48A, 96 points max |
| Communication |
EIA-485 multi-drop, up to 6,000 ft from panel |
| Power |
24 VDC from the panel or a remote power supply |
| Dimensions |
8.375 in. (21.27 cm) H x 4.375 in. (11.11 cm) W |
| Operating environment |
32°F to 120°F (0°C to 49°C) |
Features
- Alarm and trouble resound with flash of new conditions
- On-board end-of-line resistors enabled or disabled by switch
- Slip-in custom labels and plug-in terminal blocks
- Microprocessor-controlled, fully supervised
Related models
- AEM-48A: 48-point expander for the ACM-48A
- ACM-24AT: 24-point annunciator with control switches
- AEM-24AT: expander for the ACM-24AT only
Documents
FAQ
Does the ACM-48A have control switches?
No. It provides 48 annunciation points, each with an Alarm/Circuit On LED, plus a System Trouble LED, On-Line/Power LED and a local sounder with a silence/acknowledge switch. For per-point switches use the ACM-24AT.
How is the LED color set?
Each column of 24 LED points can be set to red, green or yellow with a DIP switch.
Can it be expanded?
Yes. One AEM-48A expander can be added for a maximum of 96 points (subject to the panel). The AEM-24AT cannot be used to expand the ACM-48A.
How far from the panel can it be installed?
Up to 6,000 ft, on an EIA-485 loop using four wires: a twisted pair for communication and two for 24 VDC regulated power.
