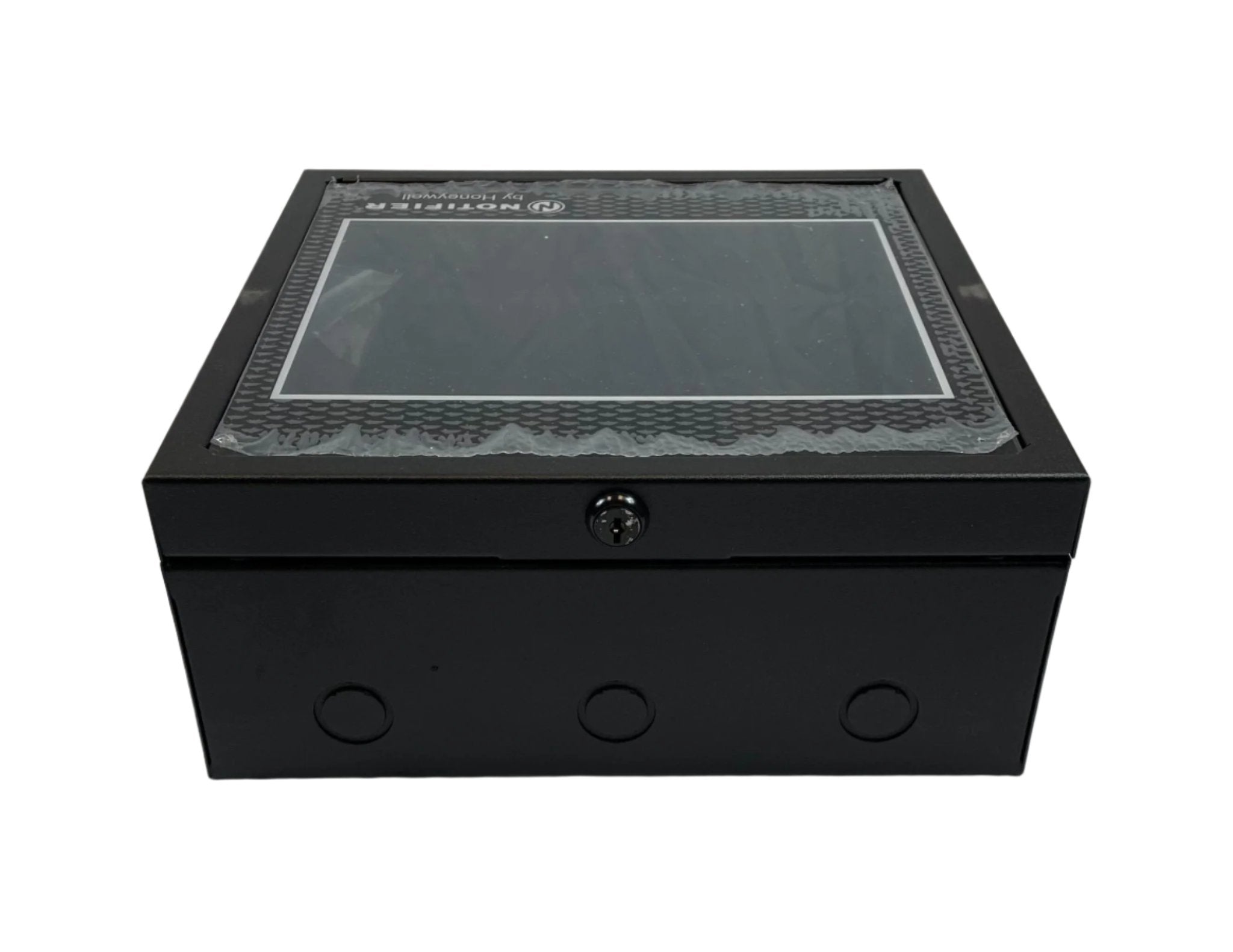

Notifier ABS-2D — black single-row annunciator backbox with locking door, for surface or semi-flush mounting.
Remote annunciators are often installed at a lobby entrance where the equipment has to be protected and still readable. This enclosure holds a single row of annunciator modules behind a locking door fitted with a clear window, so the display stays visible while the switches stay secured. Conduit can enter from almost any face, and the box works either surface mounted or set into the wall with the optional trim ring.
- Used with ACS Series annunciators, the SCS series, NCA-2 and NCA-2 Black
- Holds one NCA-2 together with one NCM-W or NCM-F network module
- Backbox 12.00" high × 12.00" wide × 3.80" deep; door 1.25" deep

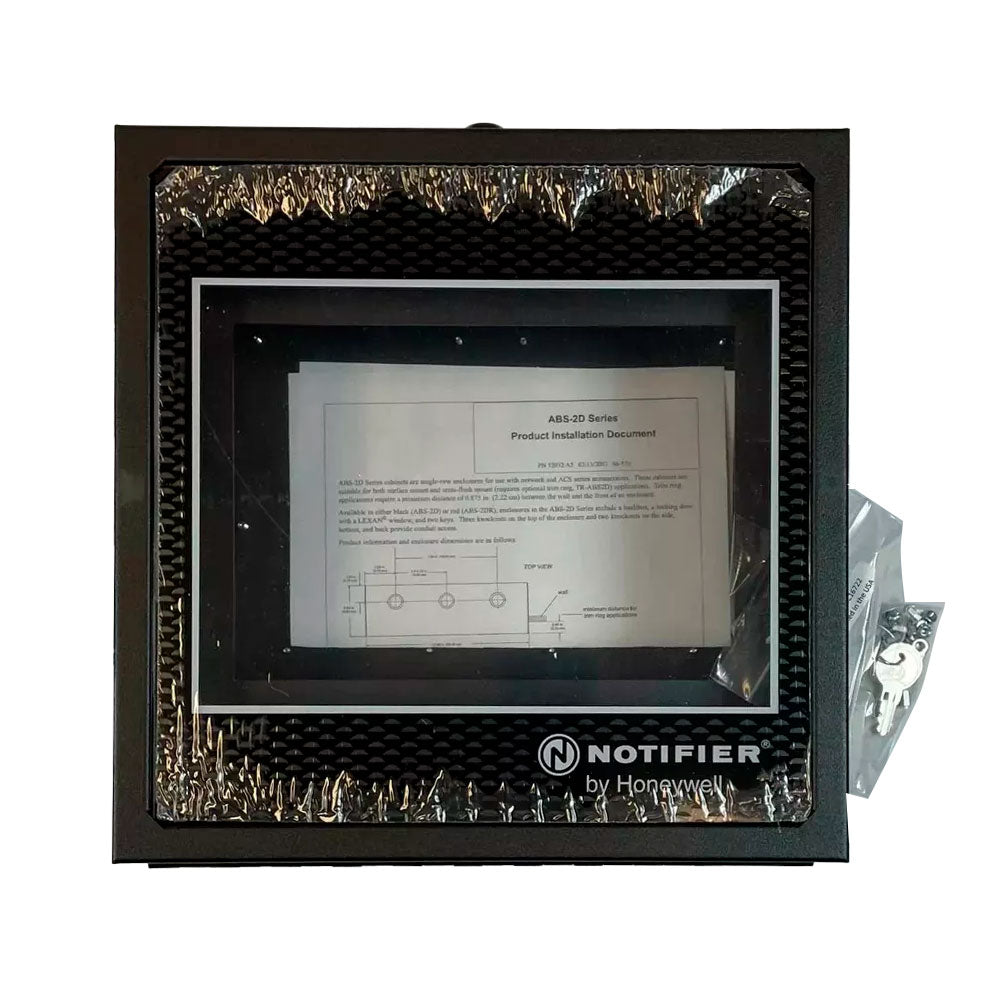

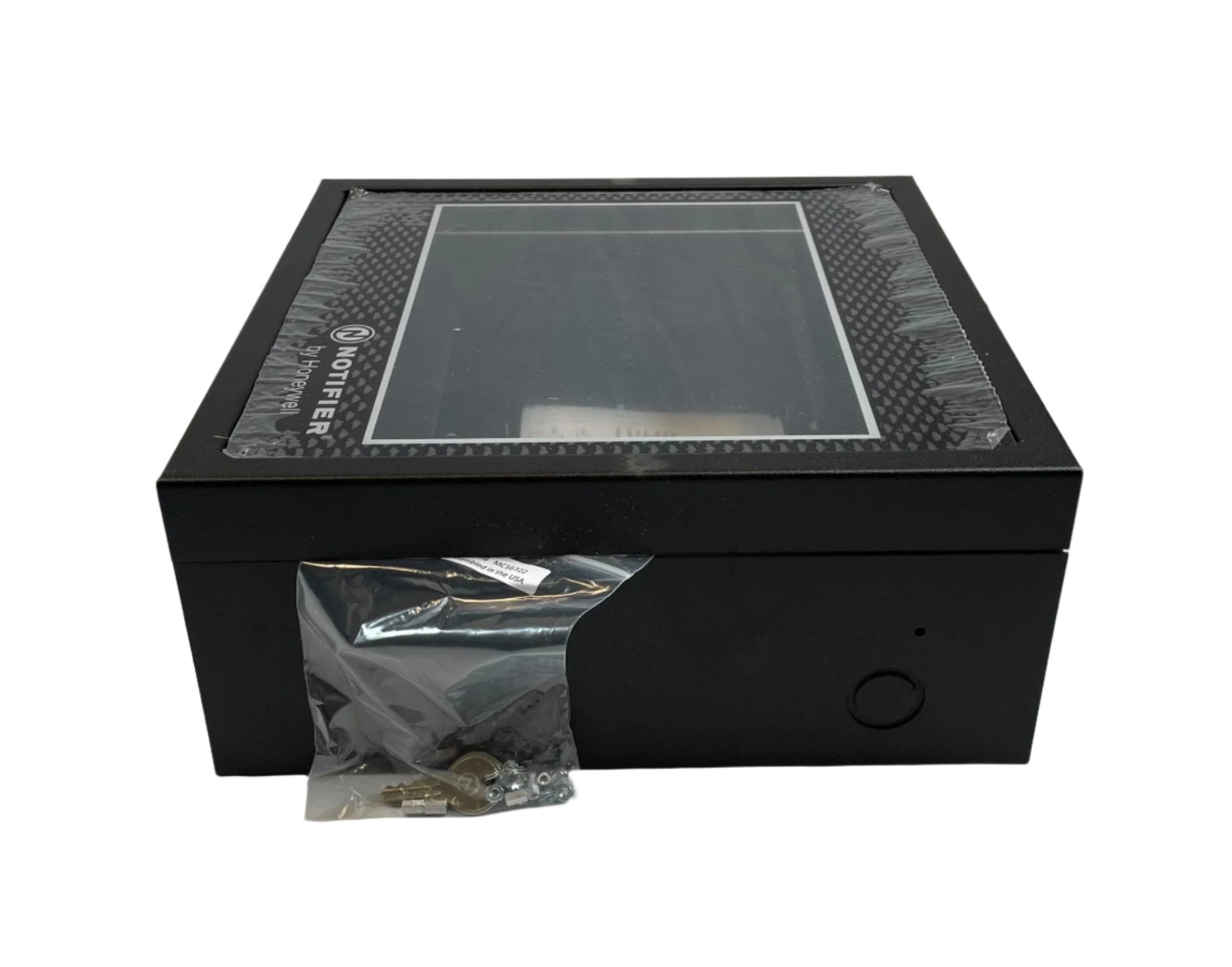

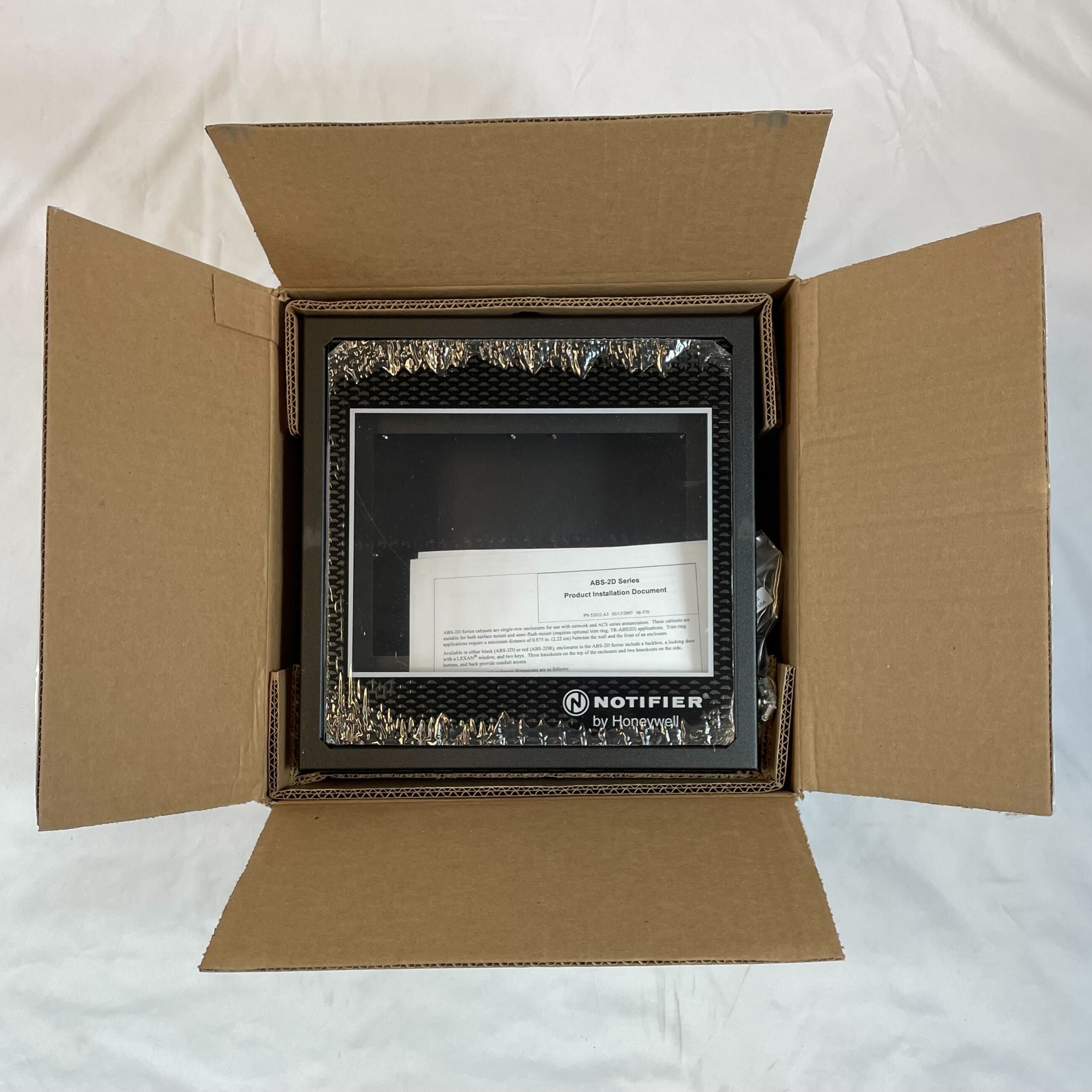

- Supplied with backbox, locking door with window and two keys
- Three knockouts on top, two each on the sides, bottom and back
- Trim ring use needs 0.875" clearance behind the enclosure front
Order accessories to match: TR-ABS2D is the trim ring and CHS-2D the chassis needed when an NCA-2 is mounted here. ABS-2DR is the same box in red.
FAQ
Which annunciators fit in the ABS-2D?
It is used with ACS Series annunciators, the SCS series, the NCA-2 and NCA-2 Black. It holds one NCA-2 together with one NCM-W or NCM-F network module.
Can it be semi-flush mounted?
Yes, with the TR-ABS2D trim ring. Trim ring use needs 0.875 in. of clearance behind the enclosure front.
What else is needed to mount an NCA-2?
The CHS-2D chassis is required when an NCA-2 is mounted in this backbox.
Is there a red version?
Yes, the ABS-2DR is the same backbox in red.
