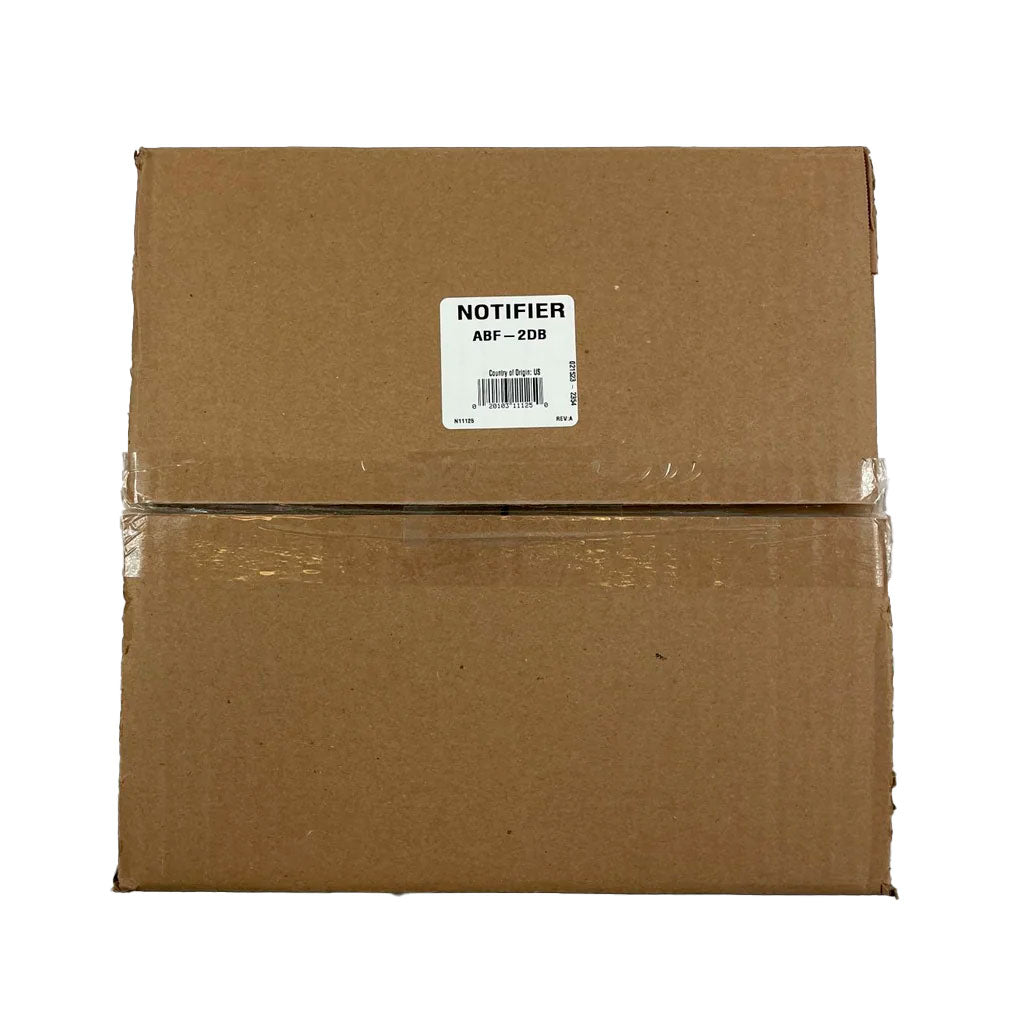

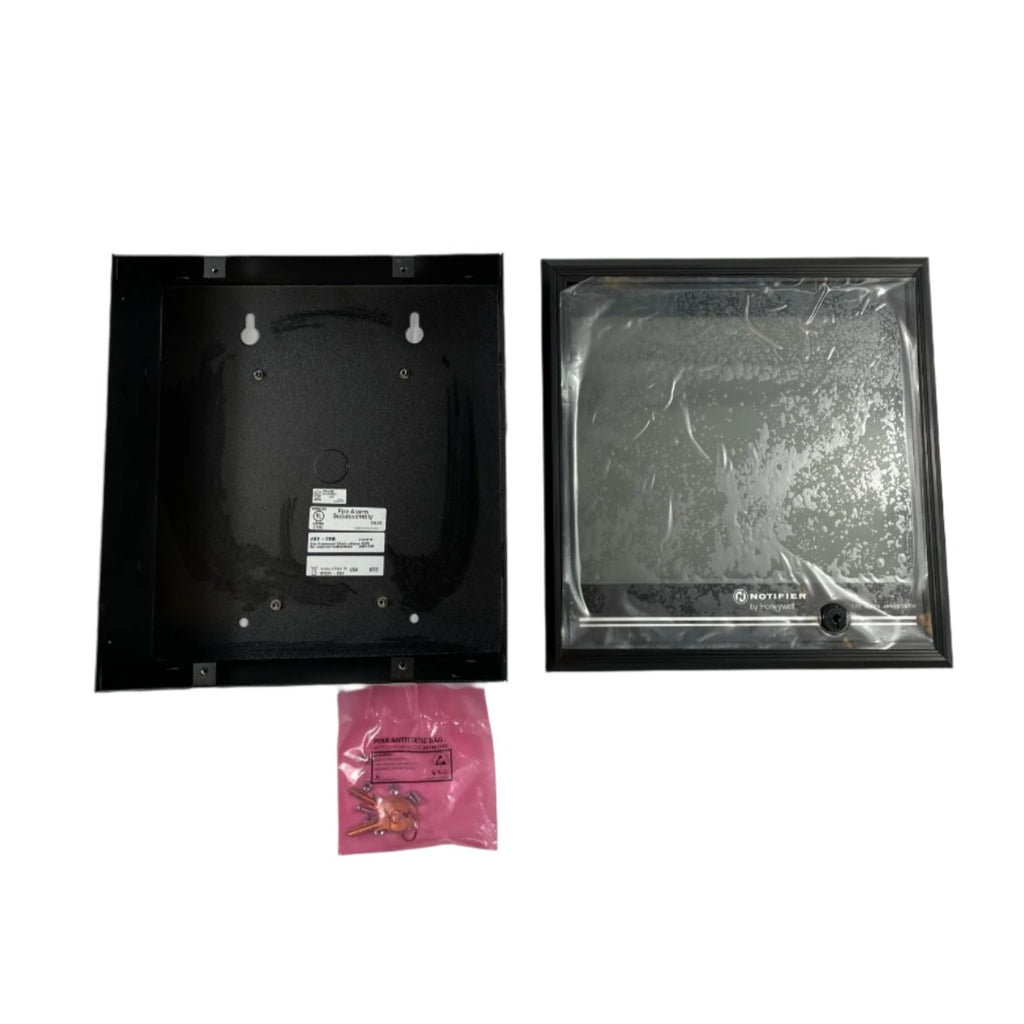

Notifier ABF-2DB — black semi-flush-mount backbox with a smoked glass door and keylock, sized for two ACS Series annunciator modules.
ACS Series annunciators report point status and control outputs over a serial interface and may sit up to 6,000 ft from the panel, so each remote position needs an enclosure. The ABF-2DB is the two-module semi-flush version: the box recesses into the wall and the door closes over the modules.
- Holds two ACS Series annunciator modules, or one NCA or NCA-2
- Box 9.938 in. high × 9.188 in. wide × 3.750 in. deep
- Door 11.0 in. high × 10.375 in. wide × 0.75 in. deep
- Knockouts provided for 1/2 in. conduit; black finish
- Modules are separate catalog numbers, each 8.375 in. × 4.375 in.
The ABF-1DB is the same build for one module and the ABS-4D takes four and hinges at the bottom. The nearest confusion is ABF-2B, the flush-mount two-module box, which ships with a painted black metal trim plate and an annunciator label instead of a glass door — Notifier states no trim plate for the ABF-2DB.
Documents
FAQ
How many annunciator modules does the ABF-2DB hold?
Two ACS Series annunciator modules. The ABF-1DB holds one and the ABS-4D up to four.
Is it flush or surface mount?
Semi-flush. The box recesses into the wall and the smoked glass door closes over the modules.
What are the dimensions?
Box 9.938 in. high x 9.188 in. wide x 3.75 in. deep; door 11 in. high x 10.375 in. wide x 0.75 in. deep.
Are the modules included?
No. The annunciator modules are ordered separately.
