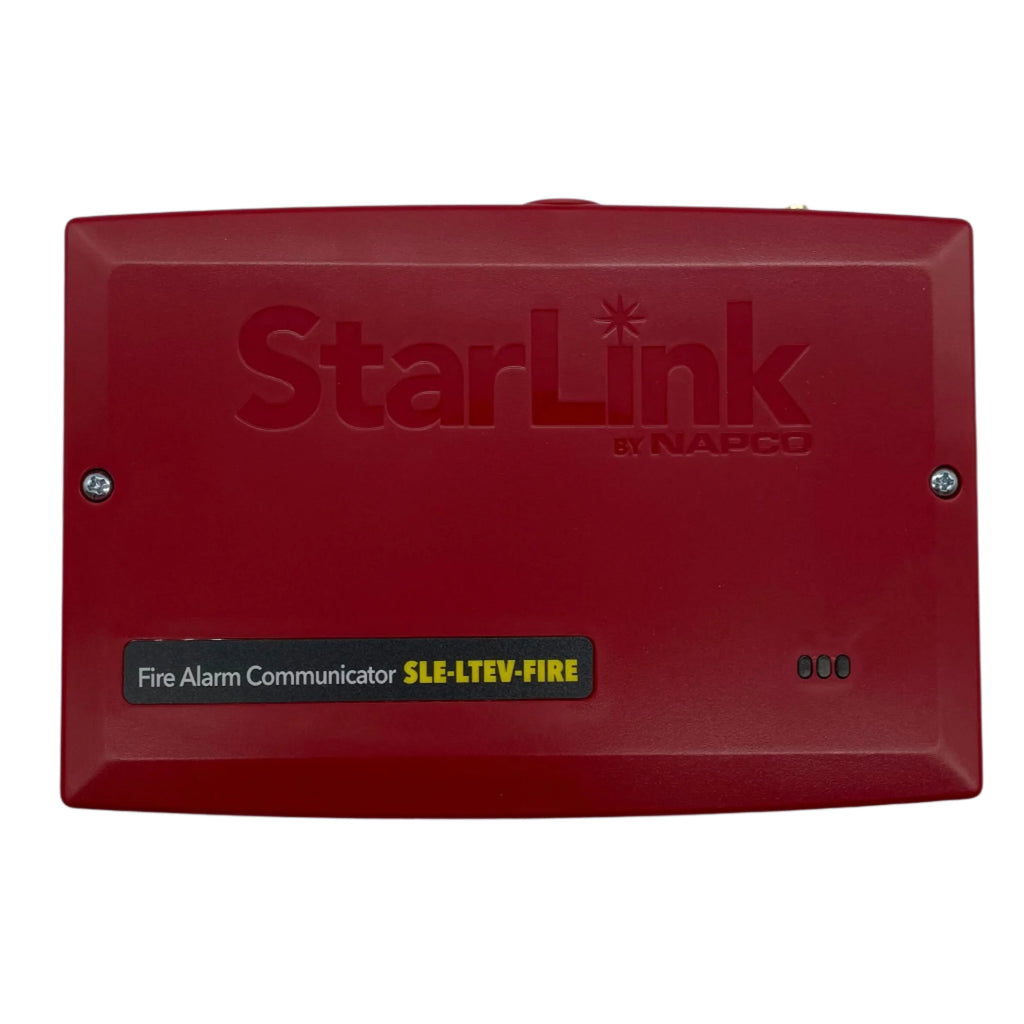

Napco SLE-LTEV-FIRE — StarLink Fire sole path cellular commercial fire alarm communicator on the Verizon LTE network, in an ABS plastic housing.
The SLE-LTEV-FIRE reports alarms from any brand of 12 V to 24 V fire alarm control panel that communicates in Contact ID or 4/2, as a primary or backup path, to a central station. It is powered by the panel (Panel-Powered Technology), so it needs no extra power supply or conduit, and it is self-supervised on four wires. Supervisory check-in plans range from 200 seconds to 5 minutes to 1 hour, and firmware can be updated over the air.
Specifications
| Model |
SLE-LTEV-FIRE |
| Communication path |
Sole path cellular, Verizon LTE |
| Panel support |
12 V to 24 V FACPs, Contact ID and 4/2 |
| Power |
Panel powered; 71 mA standby, 200 mA during transmission |
| Inputs |
IN1 (from FACP NAC), IN2, IN3 |
| Outputs |
Three open collector PGM outputs |
| Housing |

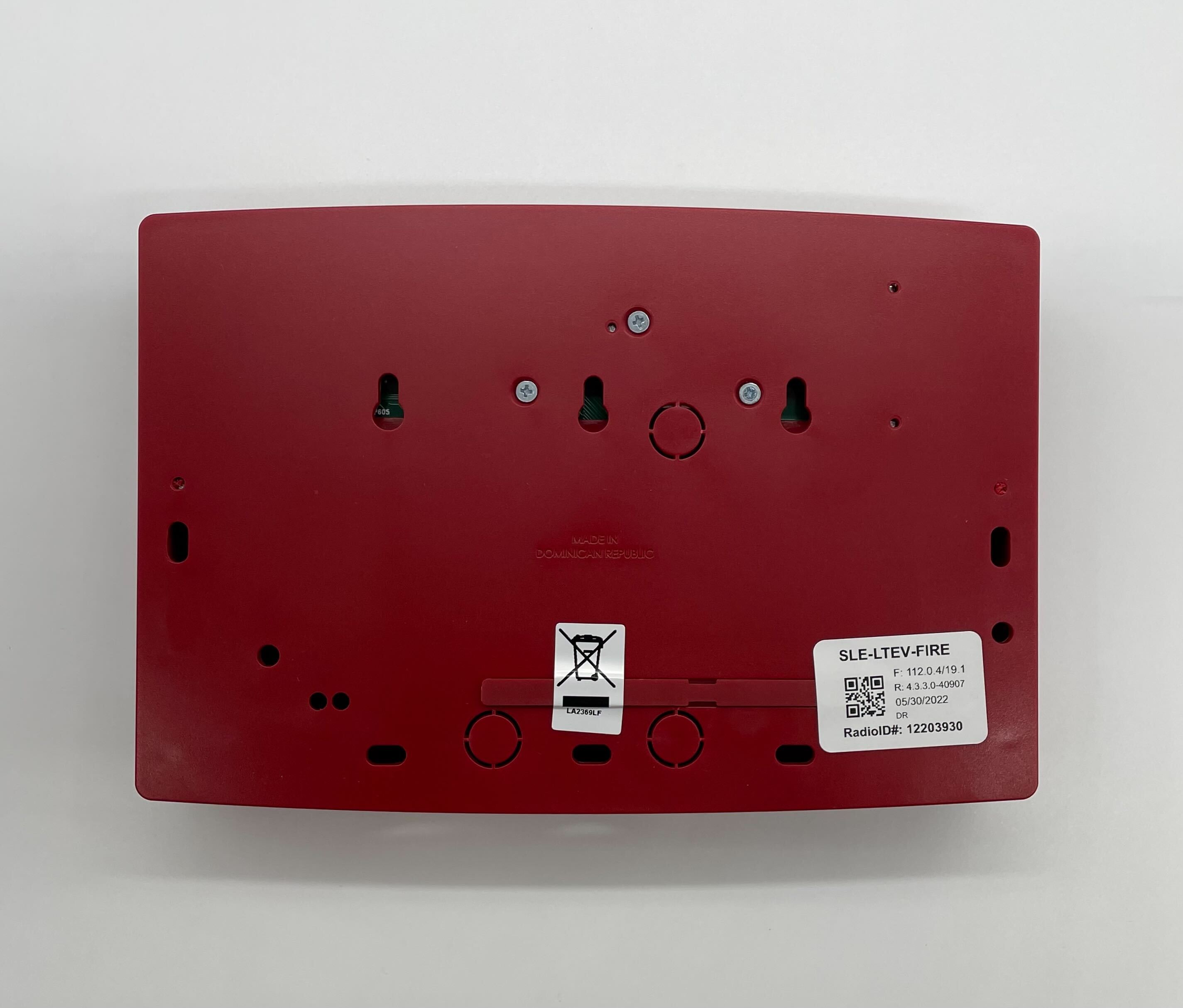

ABS plastic, three keyhole slots (aligns with triple-gang boxes) |
| Dimensions |
5-3/8 x 7-7/8 x 1-7/8 in. (H x W x D) |
| Weight |
13.5 oz |
| Indicators |
Green signal strength, amber busy/activation, red trouble |
| Operating environment |
32–120°F (0–49°C), up to 93% RH non-condensing |
| Compliance |
NFPA 72 (2007–2016), UL 864 9th Ed., UL 1610, UL 985, UL 1023, CSFM, NYCFD, LAFD |
Features
- Signal Boost circuitry and dual diversity antennas for signal acquisition and null avoidance
- Replaces two POTS lines per FACP
- Full high-speed remote upload and download for Napco panels
- Optional extended antennas SLE-ANTEXT30, SLE-ANTEXT50 and SLE-ANTEXT75 for weak signal locations
Related models
- SLE-MAX2-FIRE: replacement model
- SLE-LTEVI-FIRE: dual path cellular and/or IP version
Documents
FAQ
What replaces the SLE-LTEV-FIRE?
The SLE-LTEV-FIRE is discontinued and replaced by the Napco SLE-MAX2-FIRE.
Does it need its own power supply?
No. It is powered by the fire alarm control panel, drawing 71 mA standby and 200 mA during transmission, with no extra power supply or conduit.
Which panels does it work with?
Any brand of 12 V to 24 V fire alarm control panel that communicates in Contact ID or 4/2.
Is it dual path?
No. The SLE-LTEV-FIRE is the sole path cellular model on Verizon LTE. The SLE-LTEVI-FIRE adds an IP path.
