Napco SLE-ANTEXT50 — StarLink Omni-X extended range omnidirectional cellular antenna kit supplied with 50 ft of cable.

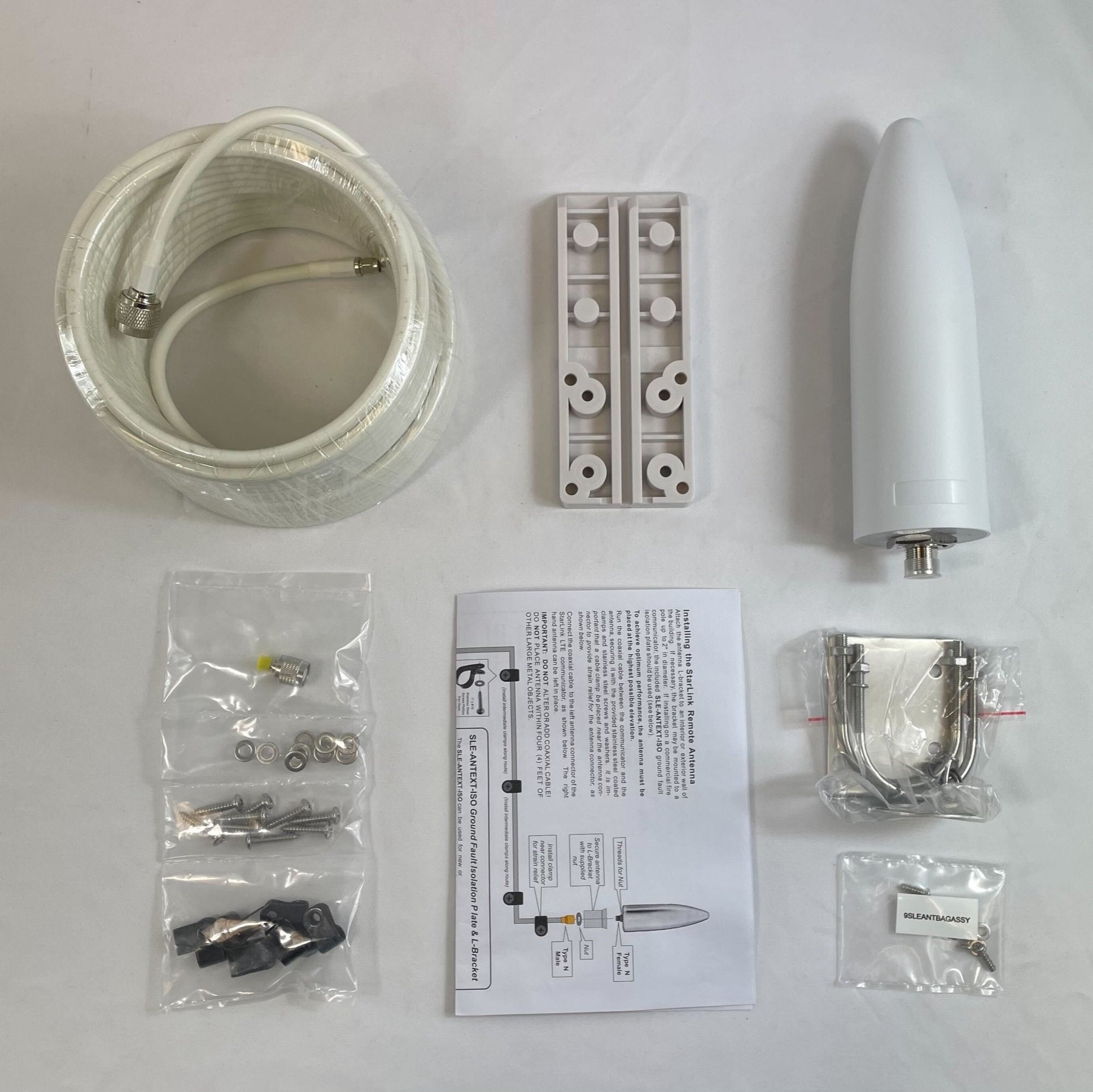

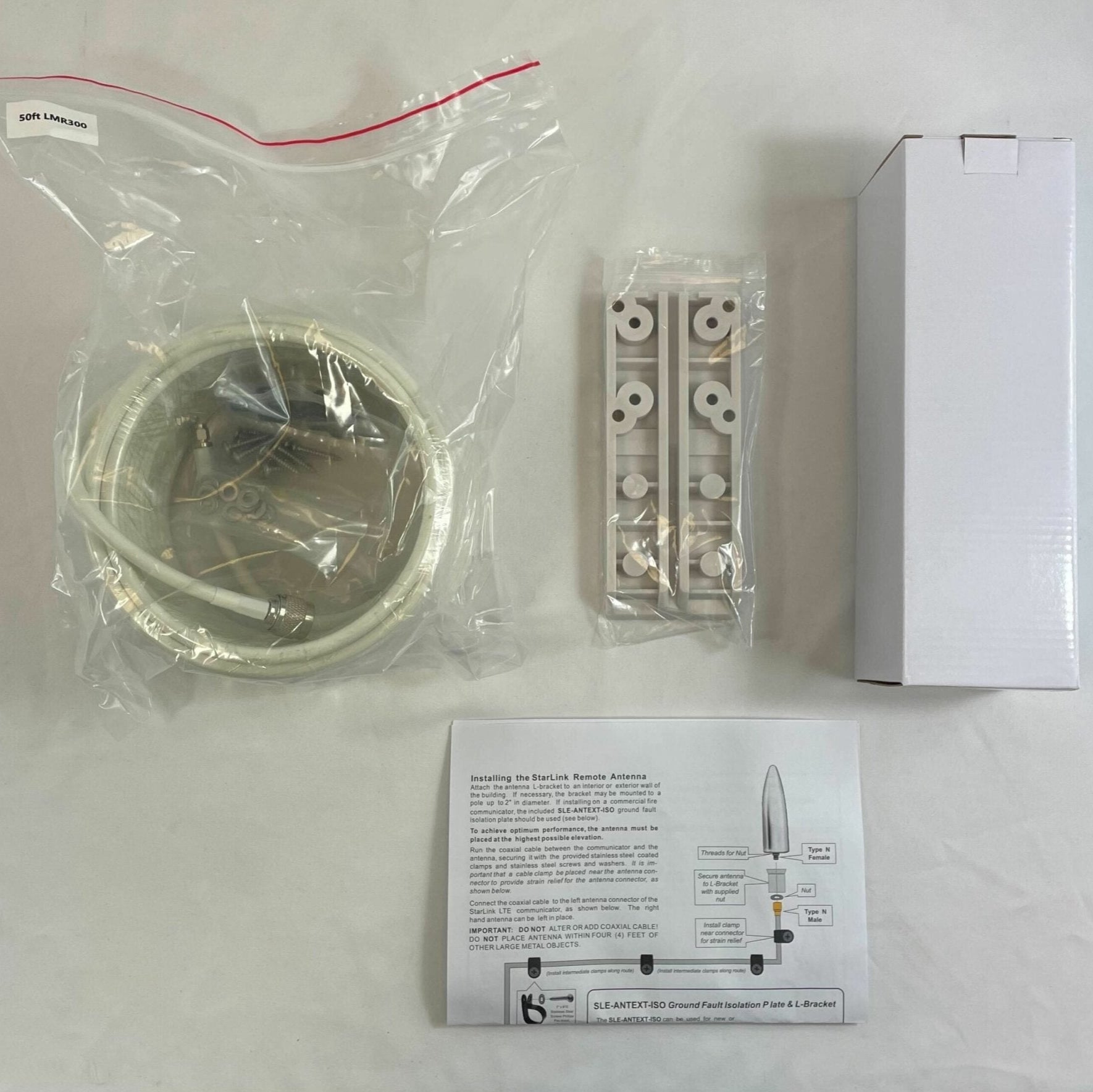

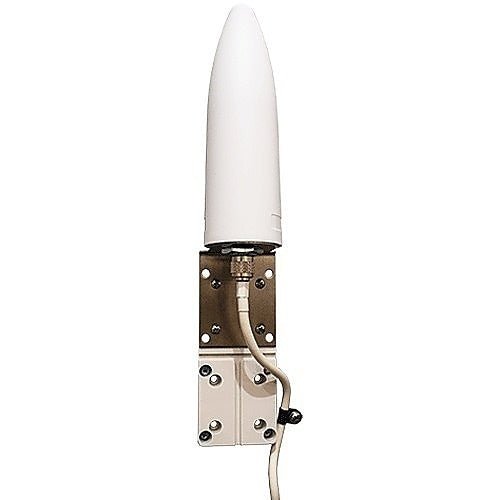

A communicator in a metal enclosure or a basement often cannot hold a signal, and this kit moves the antenna somewhere that can. The marine grade, UV stable conical antenna is omnidirectional and needs no aiming. Napco sells it complete with an L bracket and U-bolts, a ground fault isolation plate for commercial fire work, and cable.
- Supplied with 50 ft of premium low-loss LMR-type cable and hardware
- Gain 4 to 9 dBi, omnidirectional, vertical polarization, copper elements
- VSWR under 1.5:1 across 695 to 3000 MHz in all 3G and 4G bands
- Impedance 50 Ω, maximum input power 50 watts, PIM 155 dBc
- Antenna 8-7/8 in. long × 2-3/8 in. OD, Type N female connector
- Wind rating above 110 MPH, indoor or outdoor
The trailing number is the cable length and nothing else, so SLE-ANTEXT04, SLE-ANTEXT30, SLE-ANTEXT75 and SLE-ANTEXT100 are the same antenna on 4, 30, 75 and 100 ft runs. Keep it apart from SLE-ANTEXT, which Napco lists as the antenna alone; SLE-ANTEX names the series, not a part.
