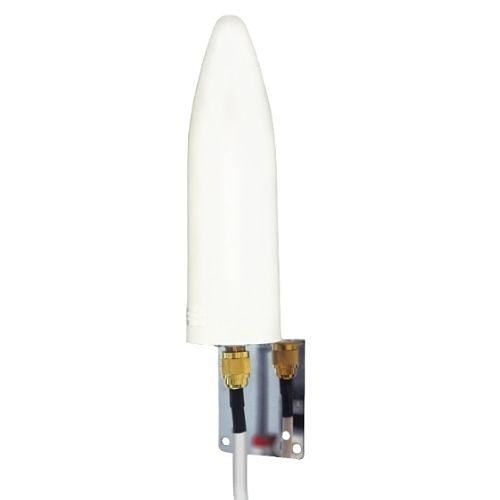

Napco SLE-ANTEXT30 — StarLink SLE-ANTEX Series extended range exterior cellular antenna, supplied as a kit with mounting hardware and a 30 ft low-loss cable.
An optional marine-grade outdoor antenna that moves the cellular antenna of a StarLink Cell/IP communicator to a location with better signal. Napco states it also supports most other brands of communicator radio. It is an omnidirectional wide-band antenna covering LTE, 4G and 3G bands, with field-proven 700 MHz LTE performance.
- Frequency range: 695 to 3000 MHz
- Gain: 4 to 9 dBi, omnidirectional, vertical polarization
- Impedance: 50 Ω; maximum input power 50 W
- RF connector: Type N female
- Antenna: 8-7/8 in. long × 2-3/8 in. diameter, UV-stable polyurethane conical housing, wind rating over 110 mph
- Mounting: included L-bracket with stainless steel U-bolts for pole up to 2 in. or wall
The digits give the cable length: SLE-ANTEXT50 and SLE-ANTEXT75 are the same kit with 50 ft and 75 ft cable, and Napco also lists an SLE-ANTEXT04 and SLE-ANTEXT100. SLE-ANT is the antenna alone, without cable. Napco publishes an LMR300 cable specification for the 04, 30 and 50 ft kits.
