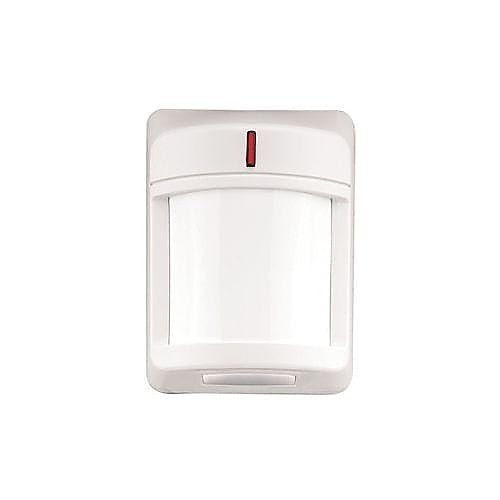

Napco PIR1680 Passive Infrared Motion Detector, 15.2x15.2m Range
The Napco PIR1680 is a microprocessor-based passive infrared motion detector with 50 x 50 ft wide-angle coverage, a look-down (creep) zone and nominal 20 lb animal immunity. Its processor compares signals against stored alarm and false-alarm signatures to reject sources such as heaters, fans and moving drapes. It also has built-in high- and low-temperature alert sensors and a periodic self-test that reports trouble to the control panel.
Key Features
- 50 x 50 ft (15.2 x 15.2 m) wide-angle coverage
- Look-down / creep zone directly beneath the sensor
- Nominal 20 lb (9 kg) animal immunity (PIR1680PT model: 65 lb pet immunity, 45 x 45 ft)
- Built-in temperature alerts: low 40 F (4 C), high 90 F (32 C), selectable
- Microprocessor signal analysis for false alarm rejection; automatic temperature compensation
- Active self-test with trouble output
- Sealed sensor chamber; RFI/EMI shielded to 20 V/m
- Wall or corner mount; tamper supervision; adjustable range
- 5-year warranty
Specifications
| Coverage |
50 x 50 ft (15.2 x 15.2 m) |
| Power |
Filtered 10.6 to 16 VDC |
| Current drain |
28 mA (idle/alarm) at 12 VDC |
| Alarm relay |
Form A, normally closed; 100 mA, 24 VDC with internal 10 ohm resistor |
| Mounting height |
12 ft (3.6 m) max.; 7 ft (2.1 m) recommended for pet applications |
| Operating temperature |
-10 to +50 C (14 to 122 F) |
| Dimensions (H x W x D) |
3.3 x 2.5 x 1.9 in. (8.4 x 6.4 x 4.8 cm) |
| Shipping weight |
5 oz (142 g) |
Compatible With
- Hardwired alarm control panels supplying filtered 10.6-16 VDC with battery backup
