Napco NETWORXPANEL is a wireless single-door controller for AirAccess, Napco's cellular cloud-based access control system. It supports 26 to 63-bit Wiegand readers, and releases the door lock, such as a magnetic lock or electric strike, when a valid user code or proximity credential is presented.

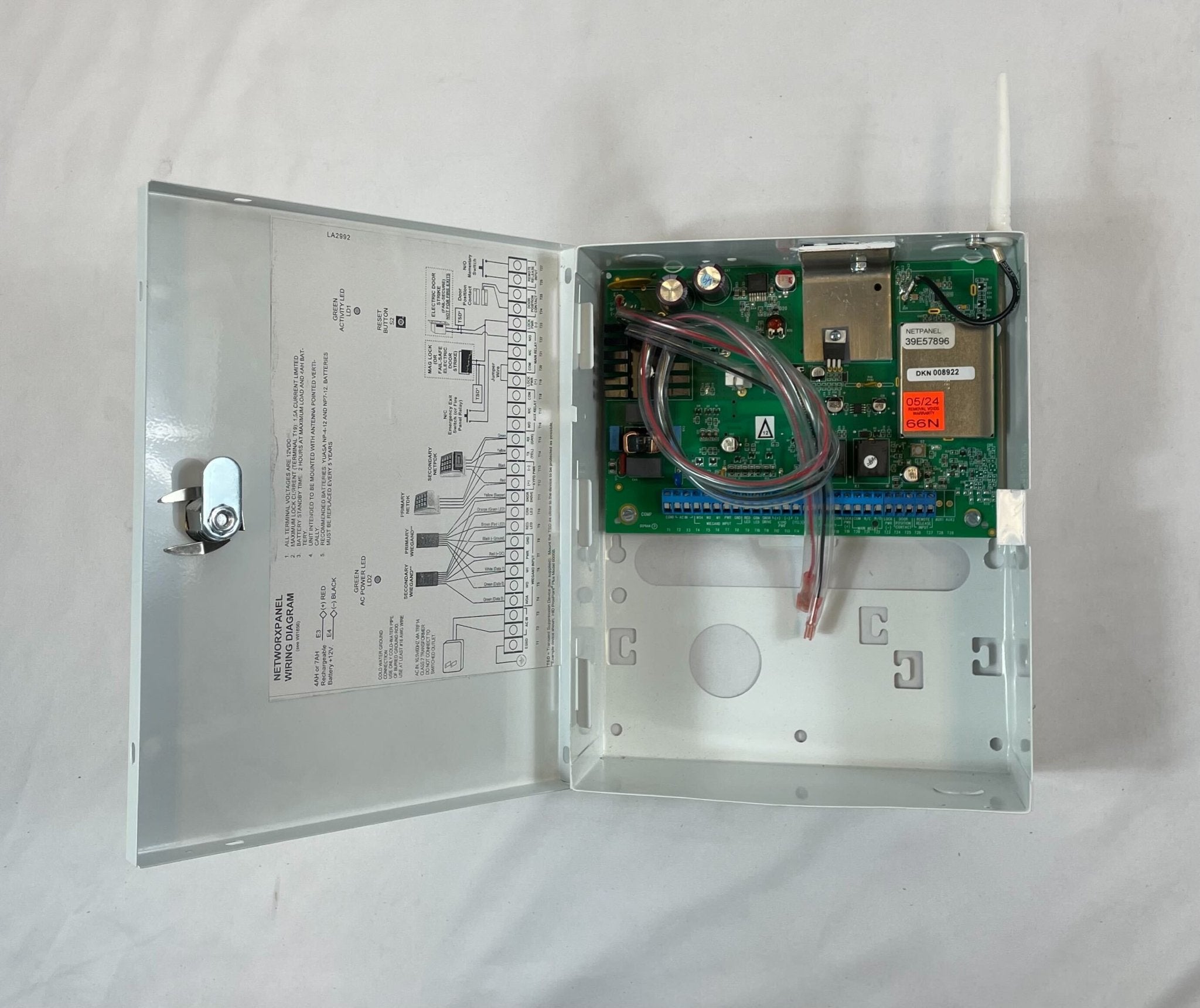

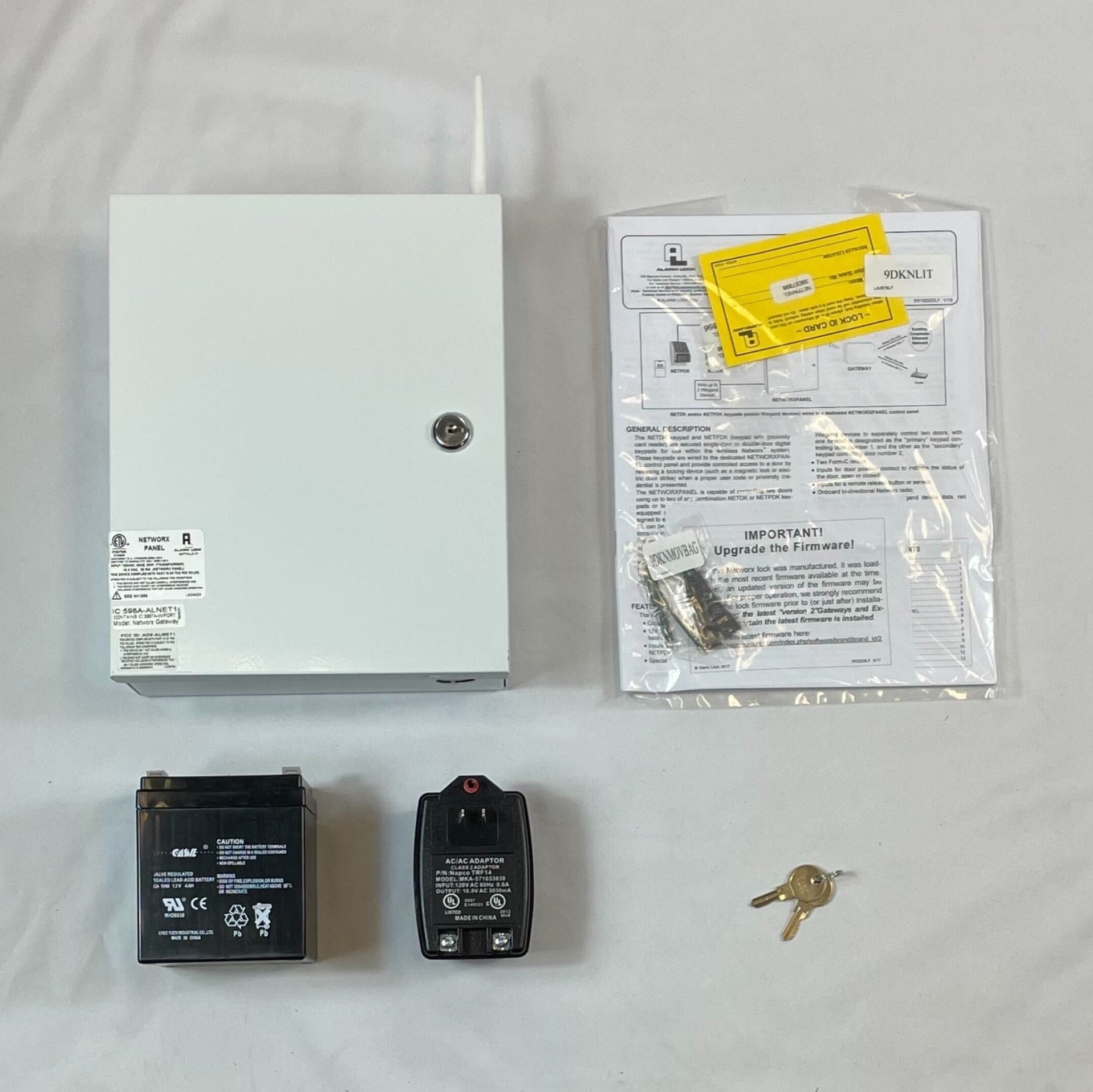

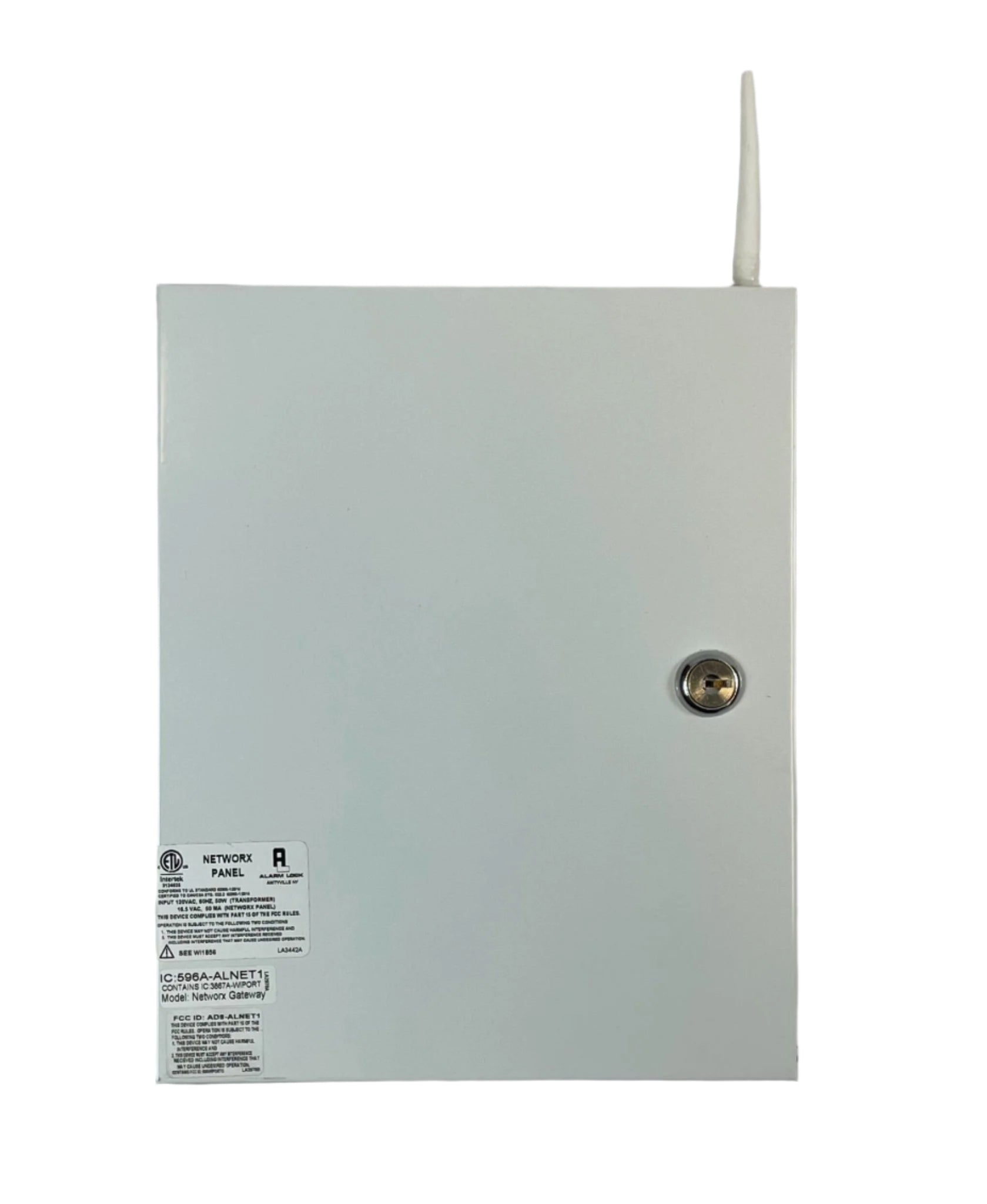

It has two relays: one for the strike and a second auxiliary relay that can serve as a shunt. The unit ships in a lockable steel enclosure with a 12 V power supply and transformer.
Features
- Single-door controller for use with AirAccess
- Supports one or two Wiegand devices (readers or keypads) in 26 to 63-bit formats
- Up to 5000 badges, 99 time schedules, 99 access groups and 5 x 30 holidays
- Global lockdown support
- Onboard bi-directional Networx radio; up to 63 Networx panels per gateway
- Input for a door position contact to show door status
- Firmware downloadable to flash memory
