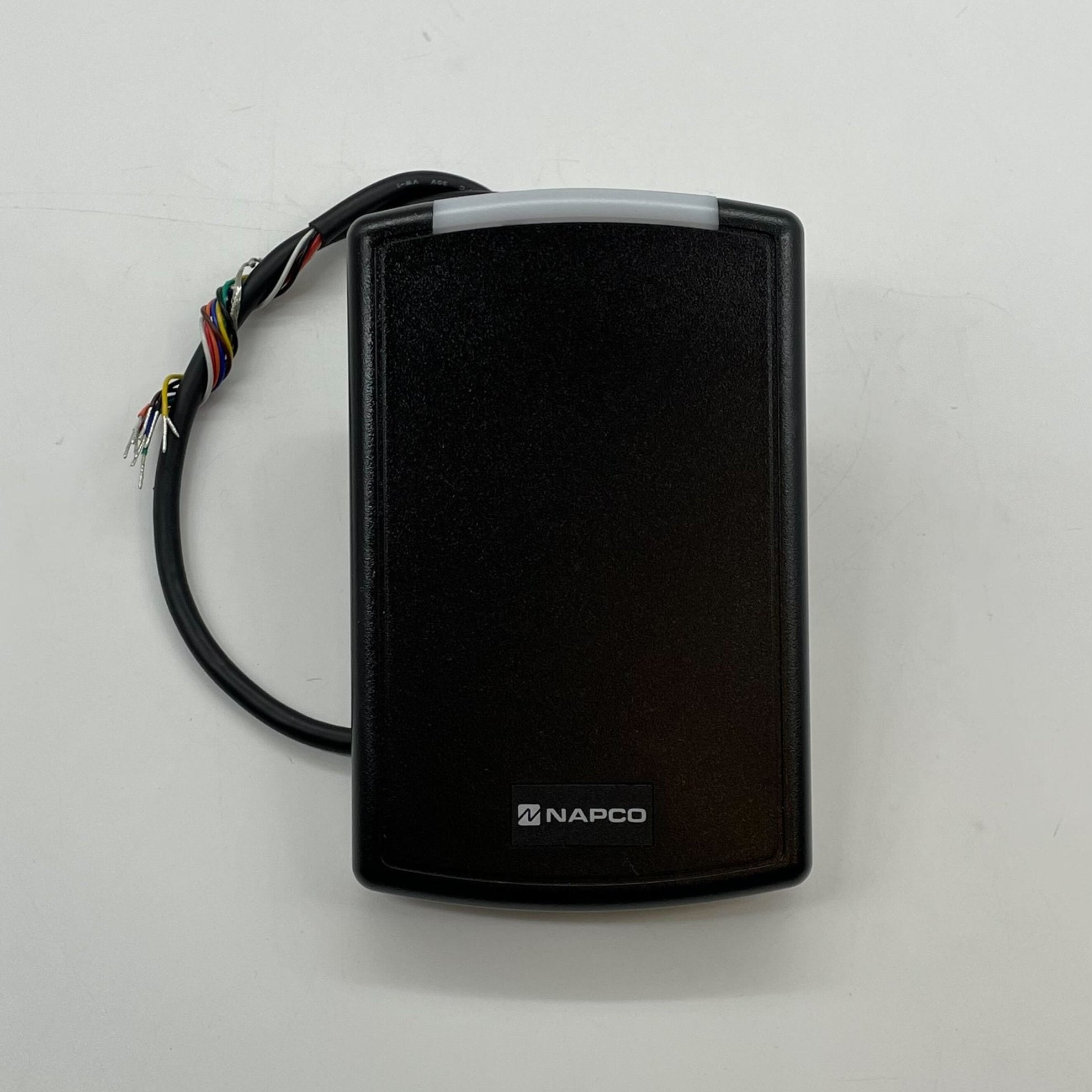

Napco NAE-ET20 Single Gang Reader, Reads Proximity, Bluetooth and Mifare Smart Credentials
The NAE-ET20 is a single-gang mount card reader for Napco's E-Access embedded access control system. It reads proximity, NFC, Bluetooth mobile and high-frequency (13.56 MHz Mifare) smart credentials and connects to the controller over Wiegand or OSDP, which it auto-detects on the same wires.
Key Features
- Single-gang mount reader
- Reads NFC, proximity, Bluetooth Low Energy and HF 13.56 MHz Mifare credentials
- Wiegand and OSDP support, auto-detected over the same wires
- Transaction times under one second
- Supports no-touch Bluetooth mobile credentials
- 3-year hardware warranty
Specifications
| Mounting |
Single gang |
| Credential technologies |
NFC, proximity, Bluetooth, HF 13.56 MHz Mifare |
| Interface |
Wiegand / OSDP |
Compatible With
- Napco E-Access controllers NAE-1DC, NAE-2DM / 2DMPL, NAE-4DM / 4DMPL
