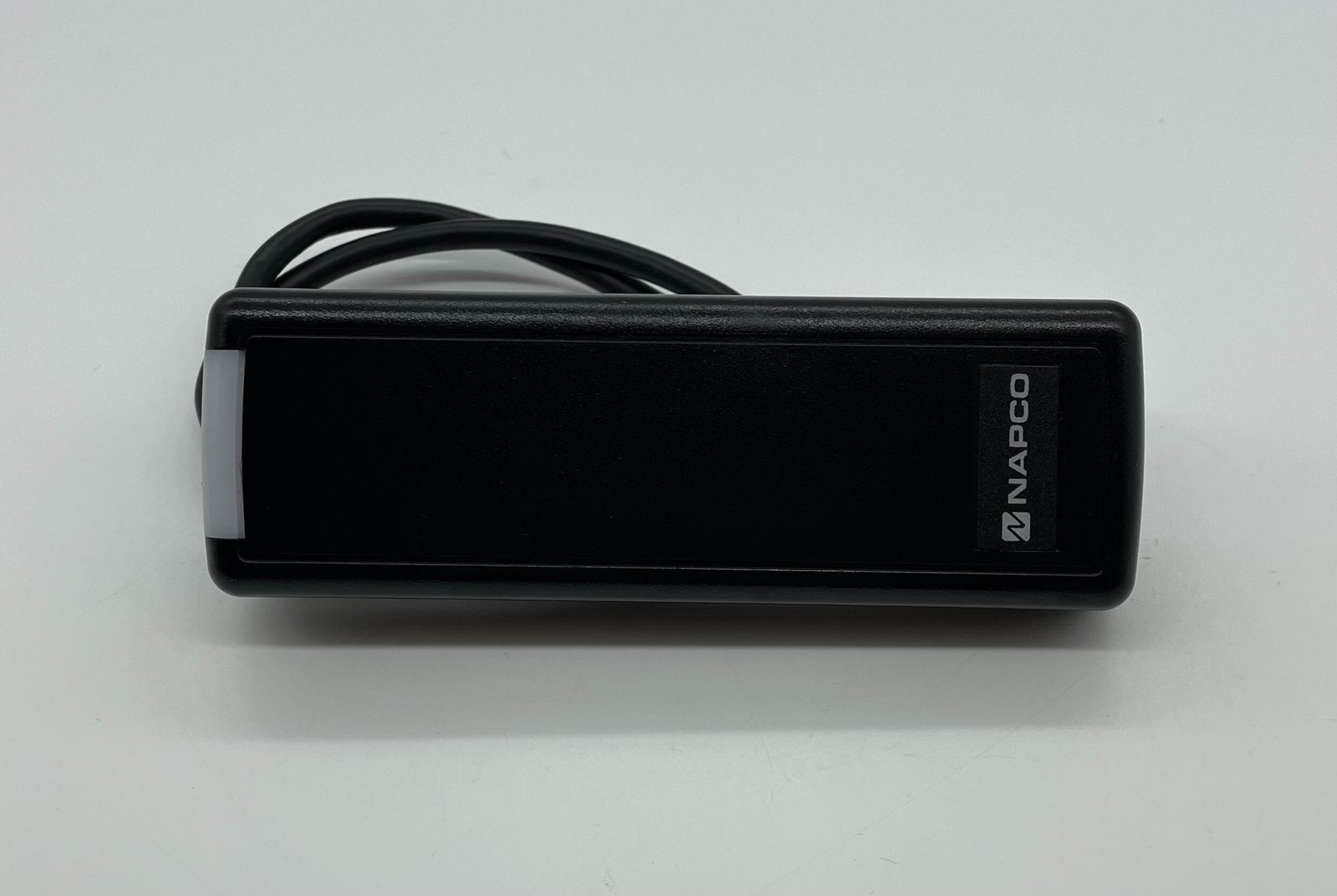

Napco NAE-ET10 — E-Access mullion-mount card reader for 125 kHz proximity, 13.56 MHz MIFARE, NFC and Bluetooth mobile credentials.
The NAE-ET10 is the mullion-format reader of the Napco E-Access line that reads both legacy 125 kHz proximity cards and MIFARE smart cards, plus no-touch Bluetooth Low Energy mobile credentials. It talks to the door controller over Wiegand or OSDP and auto-detects either over the same wires; credentials can be issued as 26-bit or 36-bit for legacy systems.
- Credentials: 125 kHz proximity, 13.56 MHz MIFARE, NFC and Bluetooth mobile
- Read range: 1.2 in. (EV1), 2.2 in. (EV2), up to 4 in. (125 kHz)
- Output: Wiegand or OSDP, auto-detected
- Supply 5–16 VDC; 106 mA average, 144 mA peak
- Indoor or outdoor, IP55; UL-tested -35 to 66 °C
- Face 5.1 × 1.7 in.
- Certifications include FCC, IC, CE and UL 294
The NAE-ET5 is the mullion reader without 125 kHz proximity; the NAE-ET20 (single gang) and NAE-ET25 (single gang with keypad) are the wider formats. The CAE-ET10 carries identical specifications under the Continental E-Access name.
