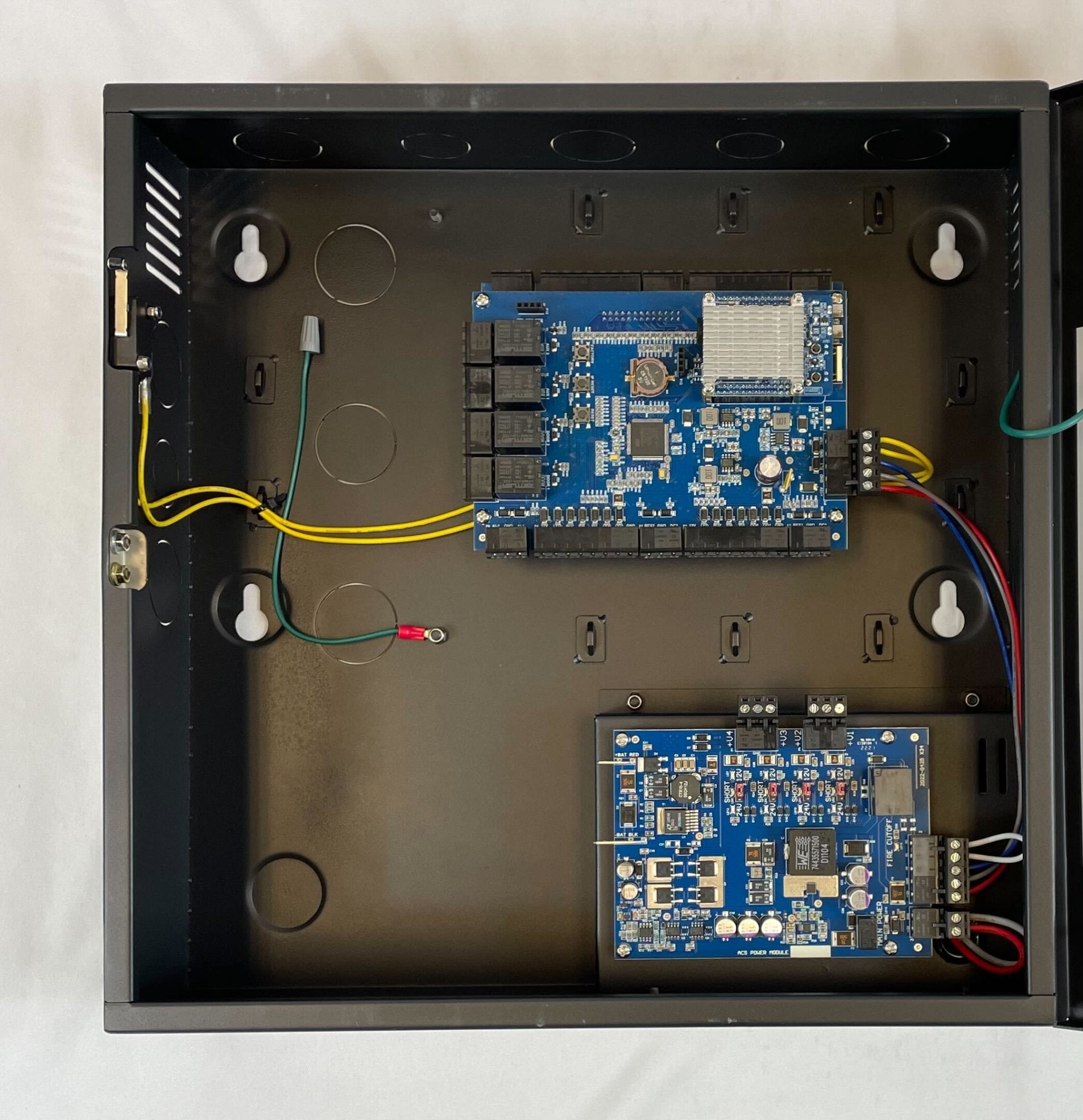

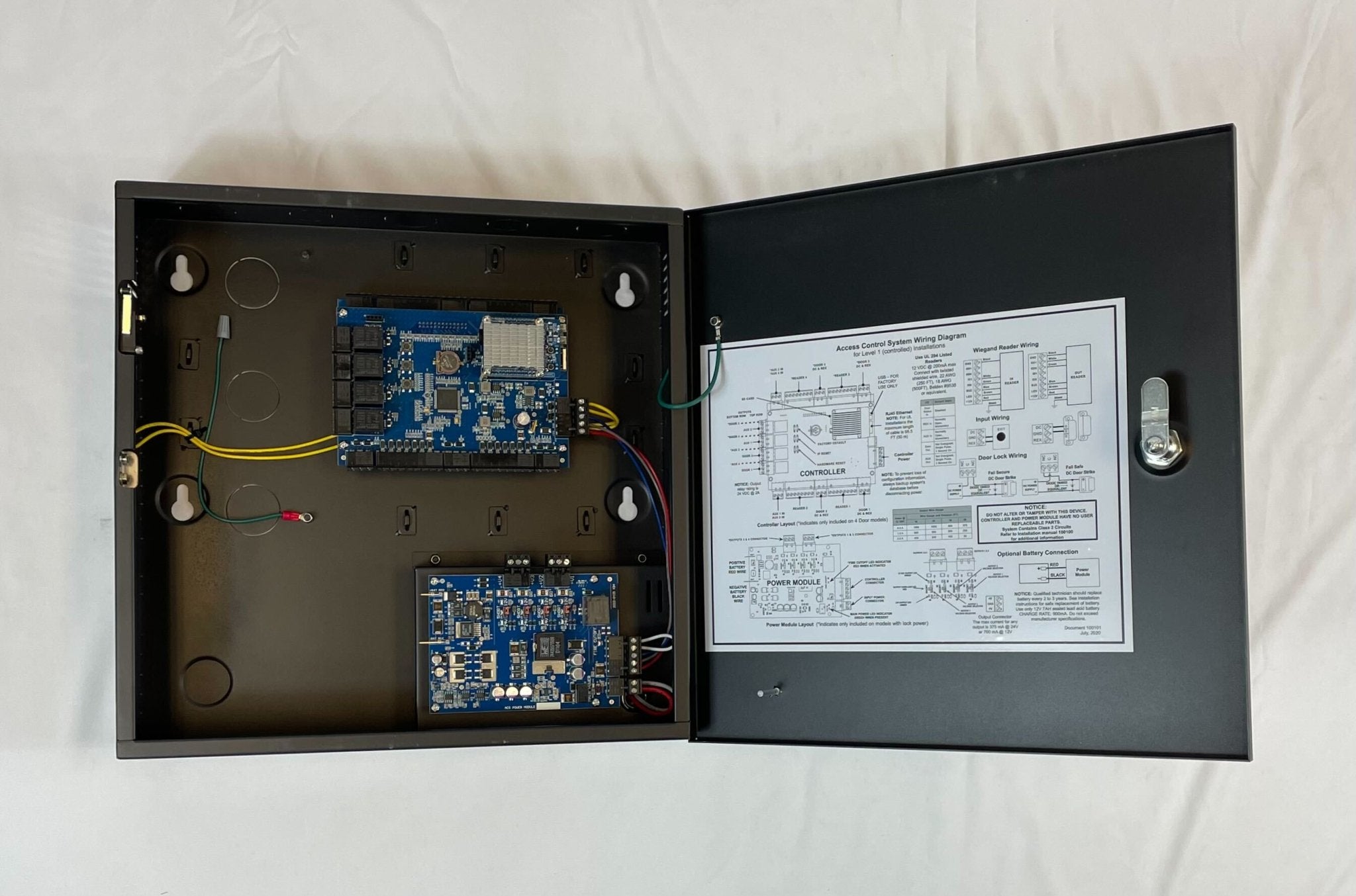

Napco NAE-4DMPL is an embedded four-door controller in a metal enclosure with a power package that supplies 12 or 24 VDC for door locks. It is part of the Napco E-Access platform, is browser-managed and runs an embedded Linux operating system. Installers use it to control up to four doors from one cabinet.
Specifications
| Reader ports |
8 (4 in / 4 out), Wiegand |
| Relays |
8 Form C (4 lock, 4 auxiliary), 24V @ 2.0A |
| Inputs |
12 (4 request to exit, 4 door position, 4 auxiliary) |

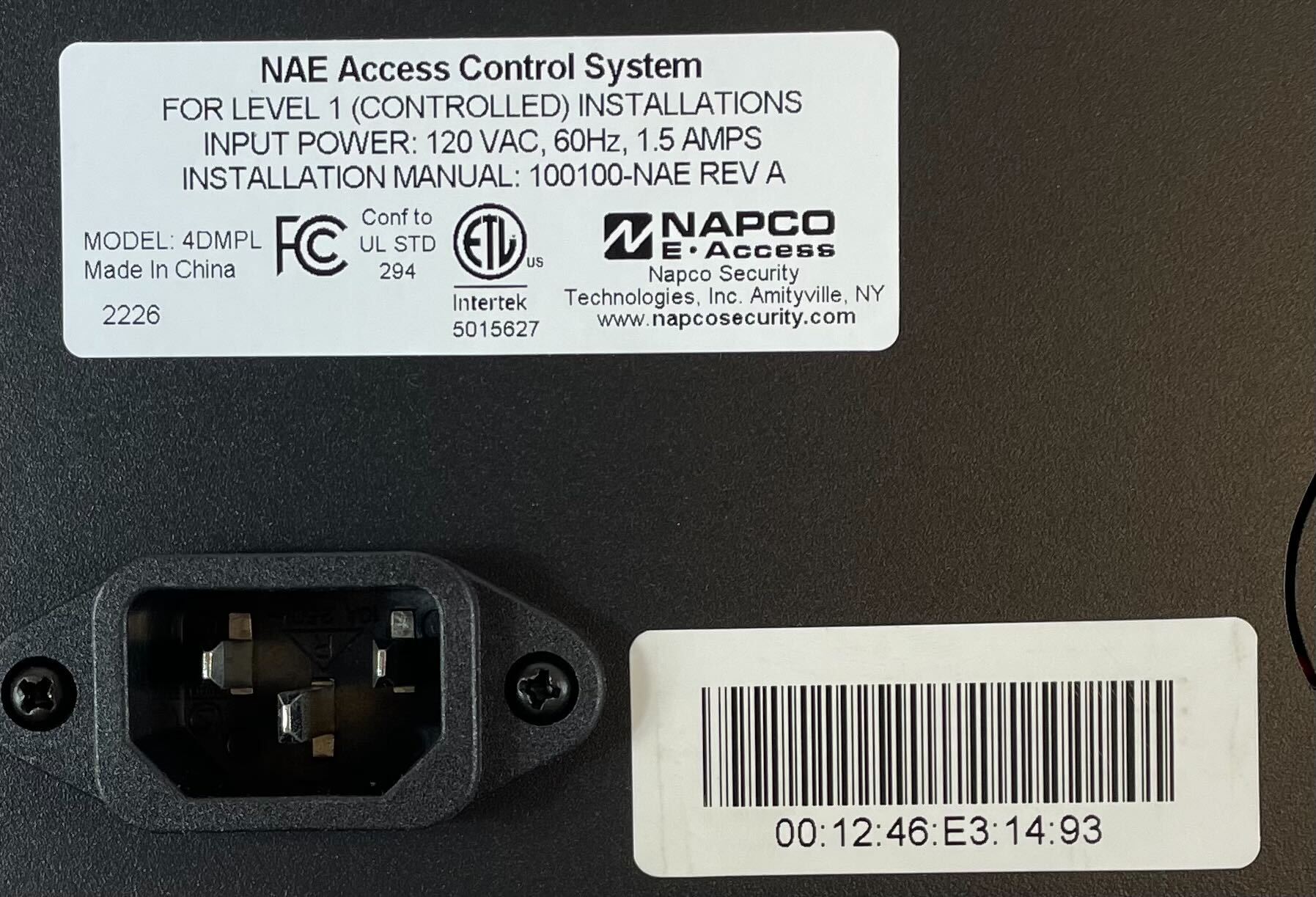

| Input power |
115 VAC @ 1.5A |
| Lock power |
12 VDC 700 mA or 24 VDC 350 mA |
| Standby current |
450 mA @ 12V |
| Reader power |
300 mA per reader, 1000 mA per system |
| Backup battery |
12V 7AH sealed lead acid (not included) |

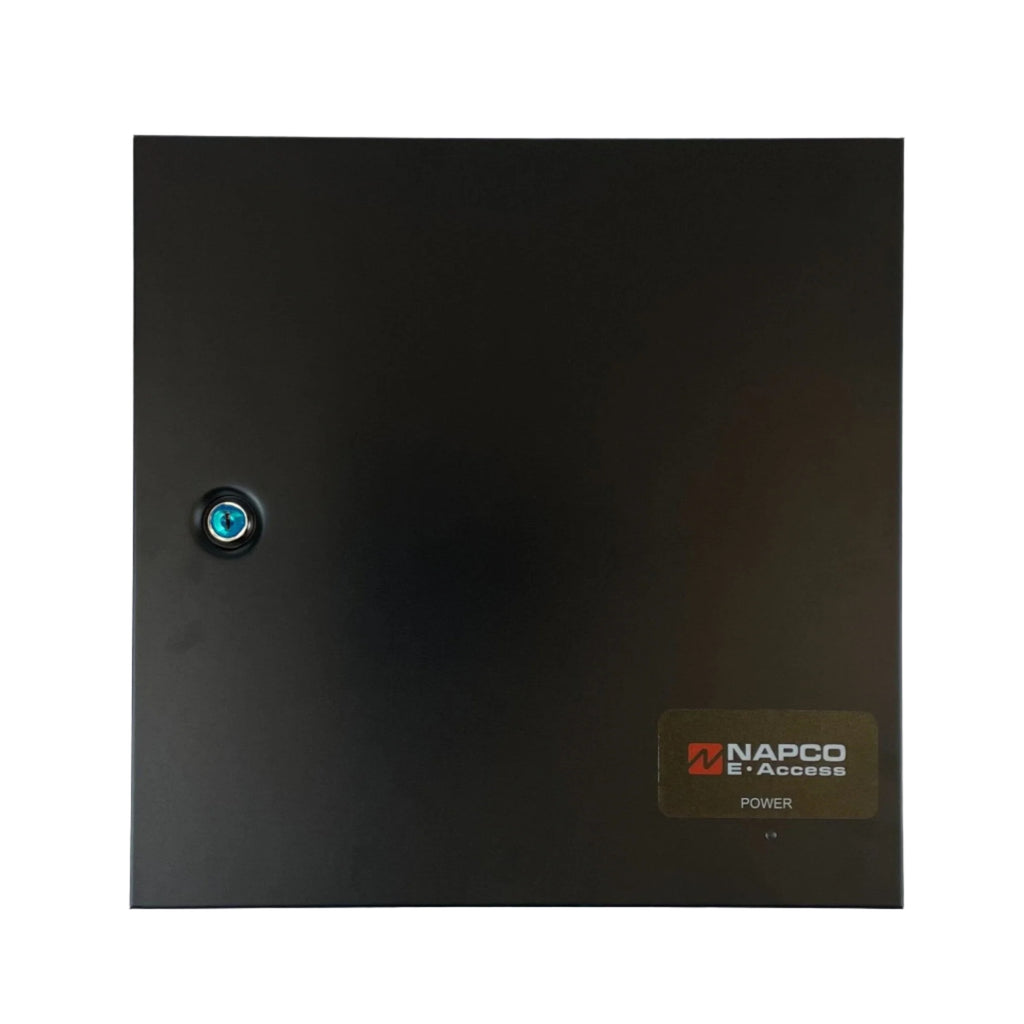

| Enclosure |
14.25 x 14.25 x 3.75 in. (362 x 362 x 95 mm) |
| Approval |
ETL / UL 294 |
| Warranty |
3 years |
Features
- Tamper and power fault inputs
- Battery backup for controller, readers and door locks
- Expandable to four doors with the NAE-ACM
