Napco NAE-2DM 2-Door Controller, Expandable up to 4 doors with basic power

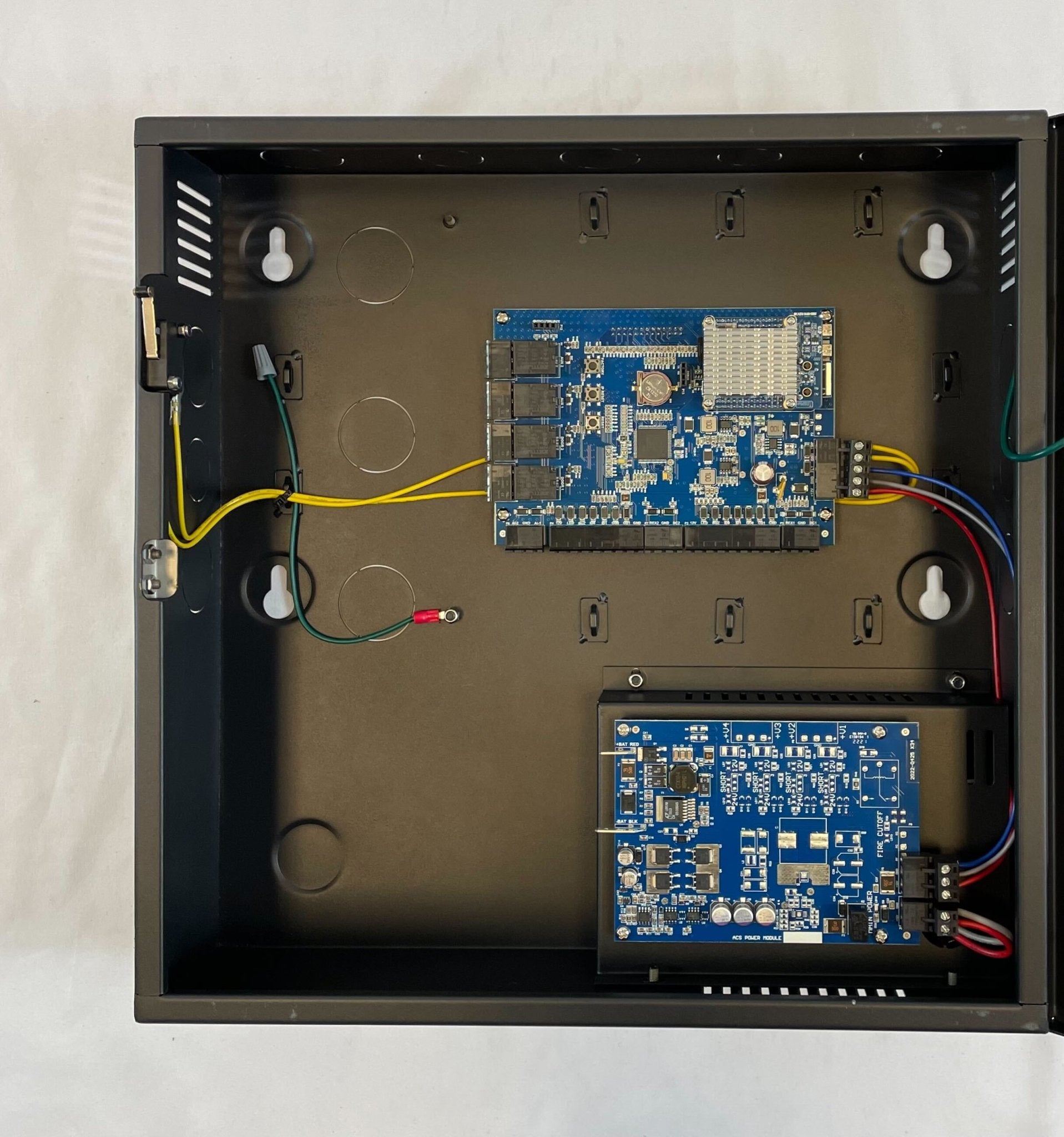

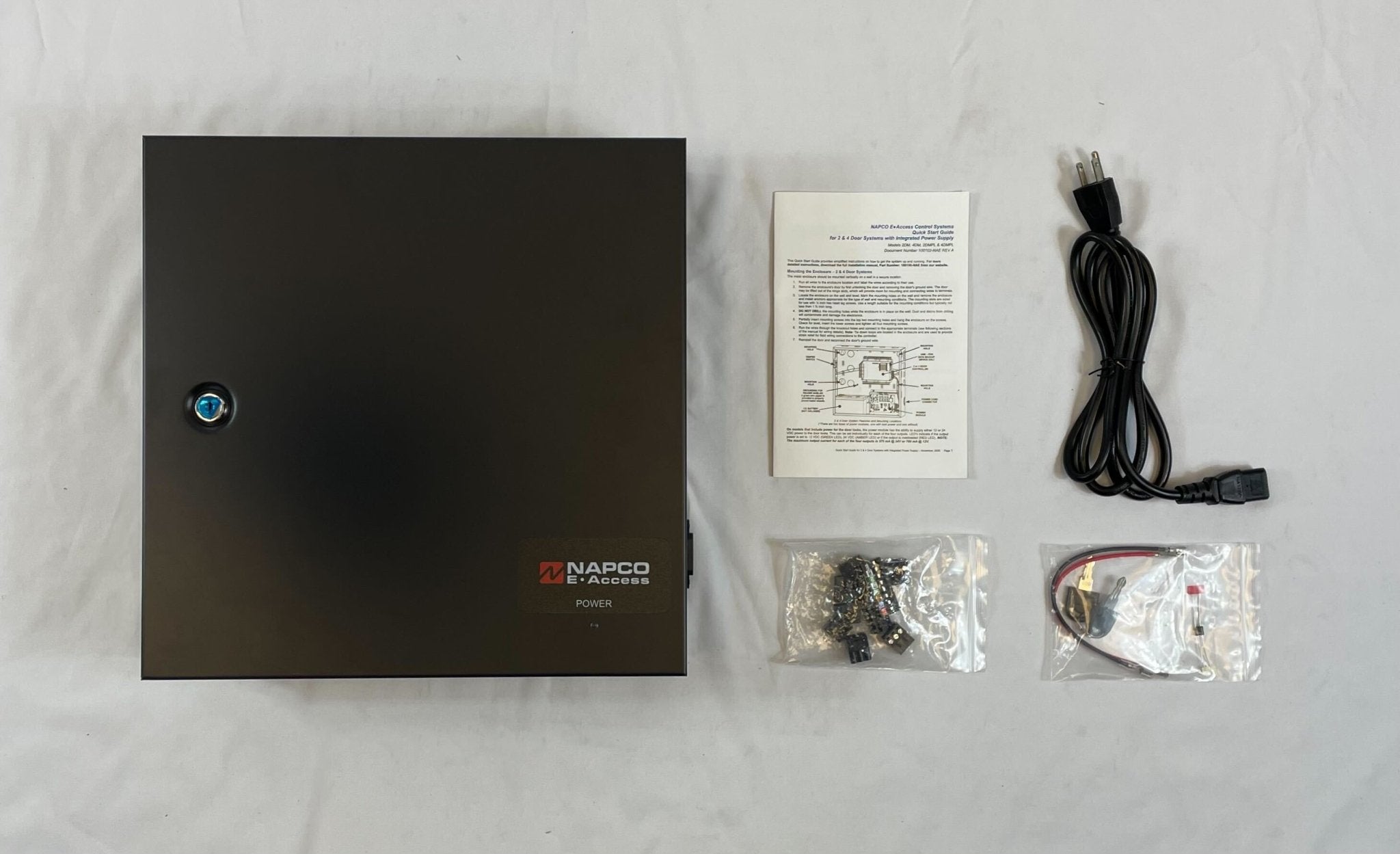

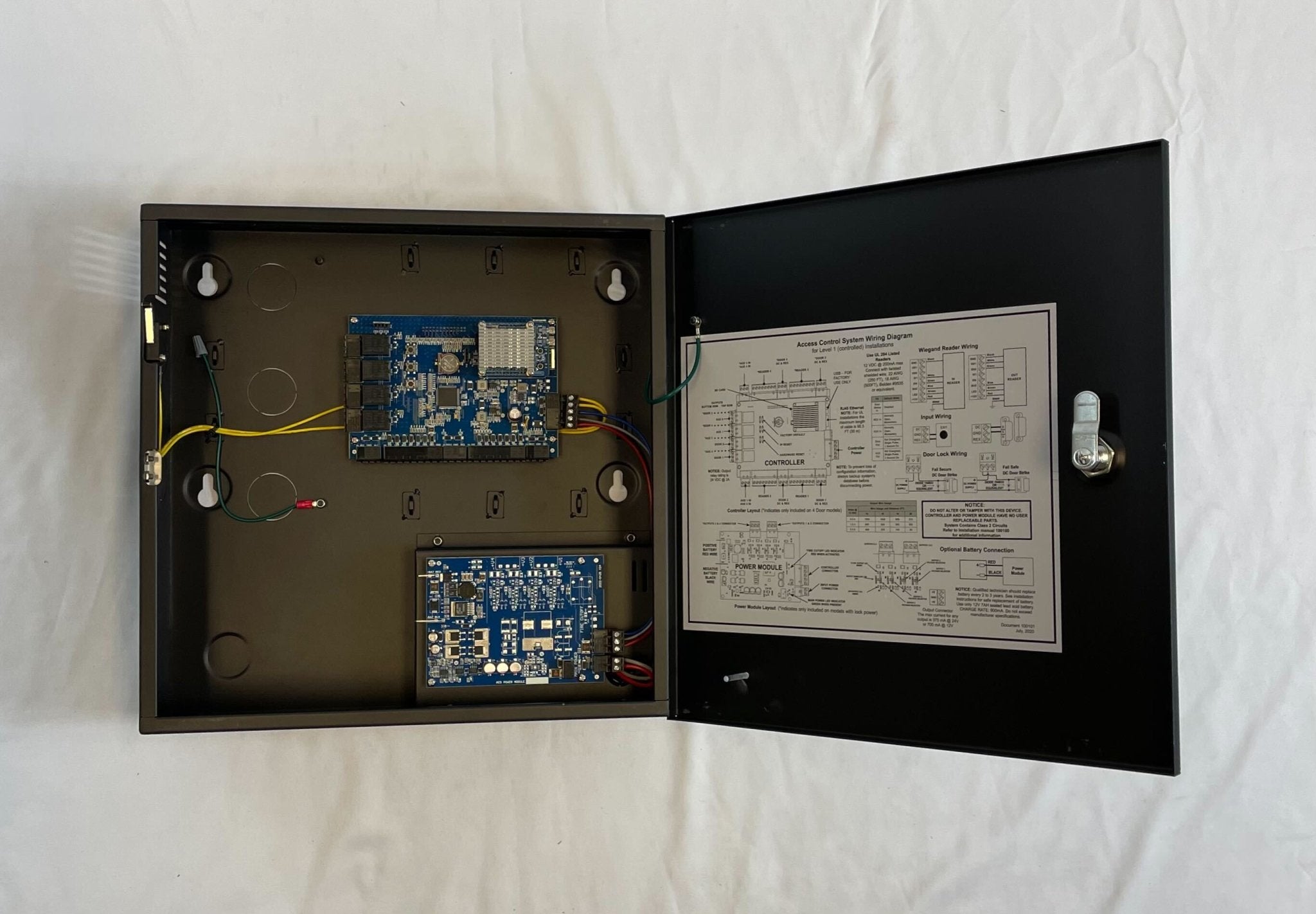

The NAE-2DM is the two-door controller in Napco's E-Access embedded access control platform, housed in a metal enclosure with a power supply for the controller and readers. It is managed from a web browser with no software to install, runs an embedded Linux operating system, and can act as a server, expansion panel or elevator module. It can be expanded to four doors in the same housing with the NAE-ACM module.
Key Features
- 2-door controller, expandable to 4 doors in the same housing with NAE-ACM
- 4 reader ports (2 in / 2 out), Wiegand
- 4 Form C relays (2 lock, 2 auxiliary), 24 V @ 2.0 A
- 6 inputs (2 request-to-exit, 2 door position, 2 auxiliary) plus tamper and power-fault inputs
- Browser-managed, embedded Linux; functions as server, expansion panel or elevator module
- System scalable to 128 doors / 64 panels (512 doors with a second server)
- Internal power supply for controller and readers only (lock power requires the NAE-2DMPL version)

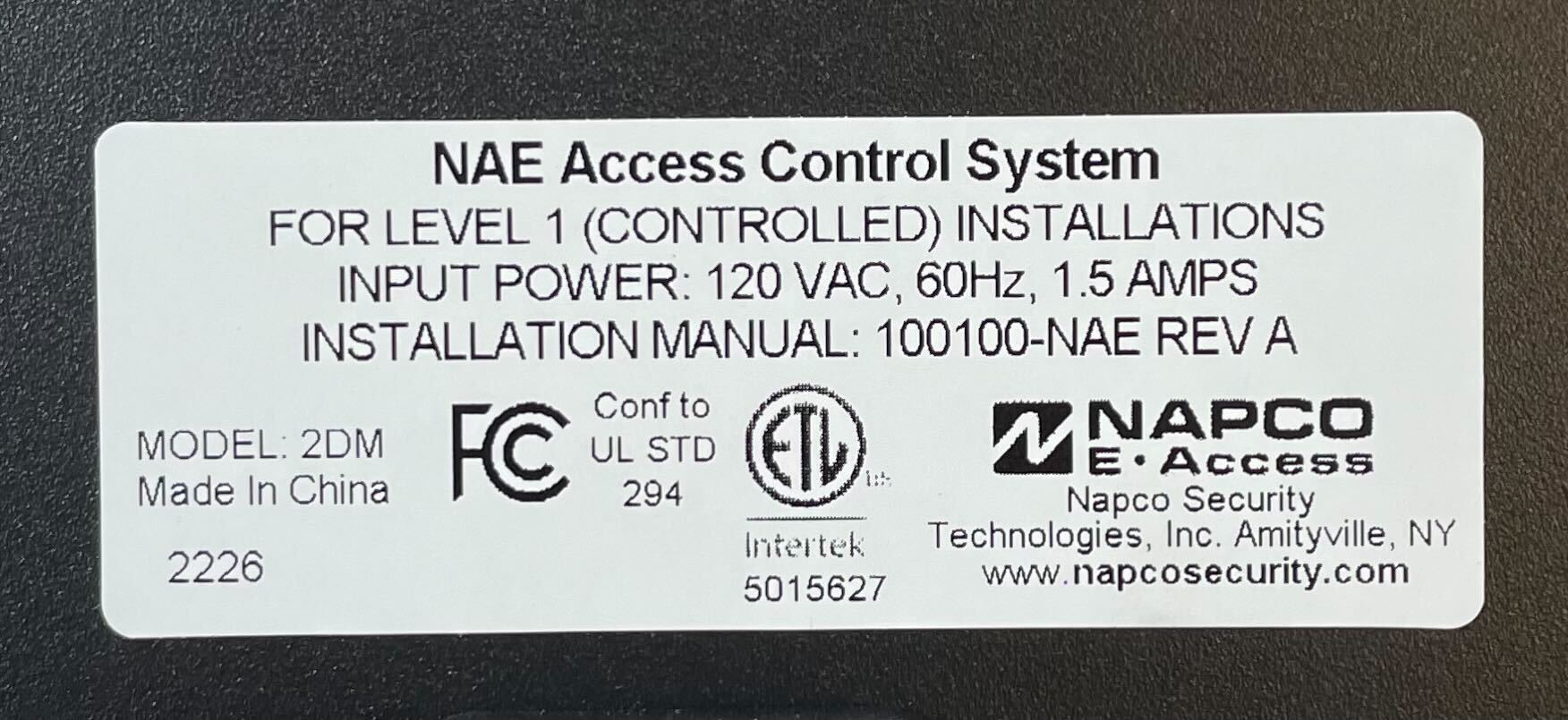

- ETL / UL 294; 3-year hardware warranty
Specifications

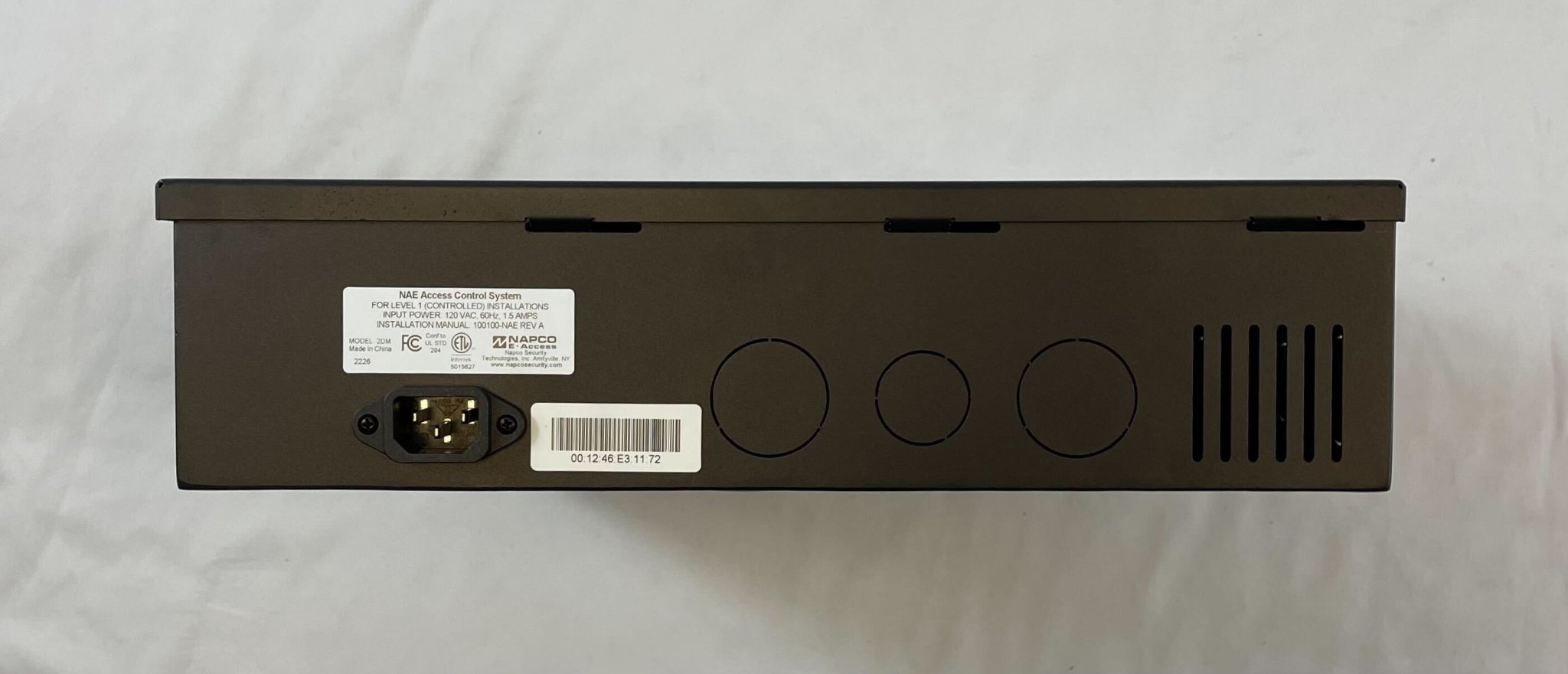

| Power input |
115 VAC @ 1.5 A |
| Enclosure (W x H x D) |
14.25 x 14.25 x 3.75 in. |
| Reader power |
300 mA @ 12 V max per reader; 1000 mA max per system |
| Standby power |
400 mA @ 12 V |
| Backup battery (sold separately) |
12 V, 7 AH sealed lead acid |
| Processor / memory |
Quad-core Cortex 1.5 GHz; 1 GB DDR3, 8 GB eMMC |
| Operating temperature |
50 to 95 F (10 to 35 C) |
Compatible With
- Napco E-Access readers NAE-ET5, NAE-ET10, NAE-ET20, NAE-ET25
- NAE-ACM expansion module
- Wiegand readers
