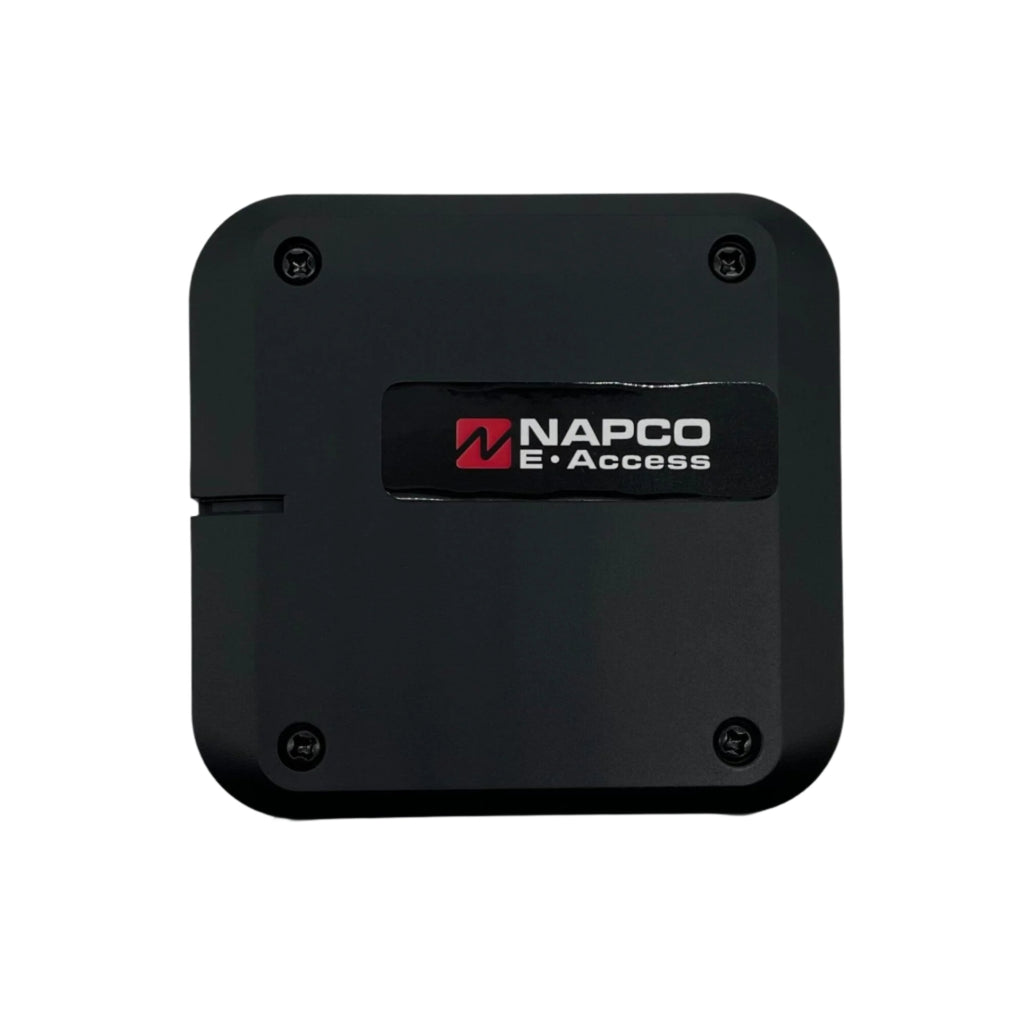

Napco NAE-1DC is an embedded single-door controller from the Napco E-Access platform. It is browser-managed, runs an embedded Linux operating system and can act as a server, expansion panel or elevator module. It requires 12 VDC power, which is not supplied. Installers use it to control one door with an in reader and an out reader.
Specifications
| Reader ports |
2 (1 in / 1 out), Wiegand |
| Relays |
2 Form C (1 lock, 1 auxiliary), 24V @ 1.0A |
| Inputs |
3 (request to exit, door position, auxiliary) |
| Power |

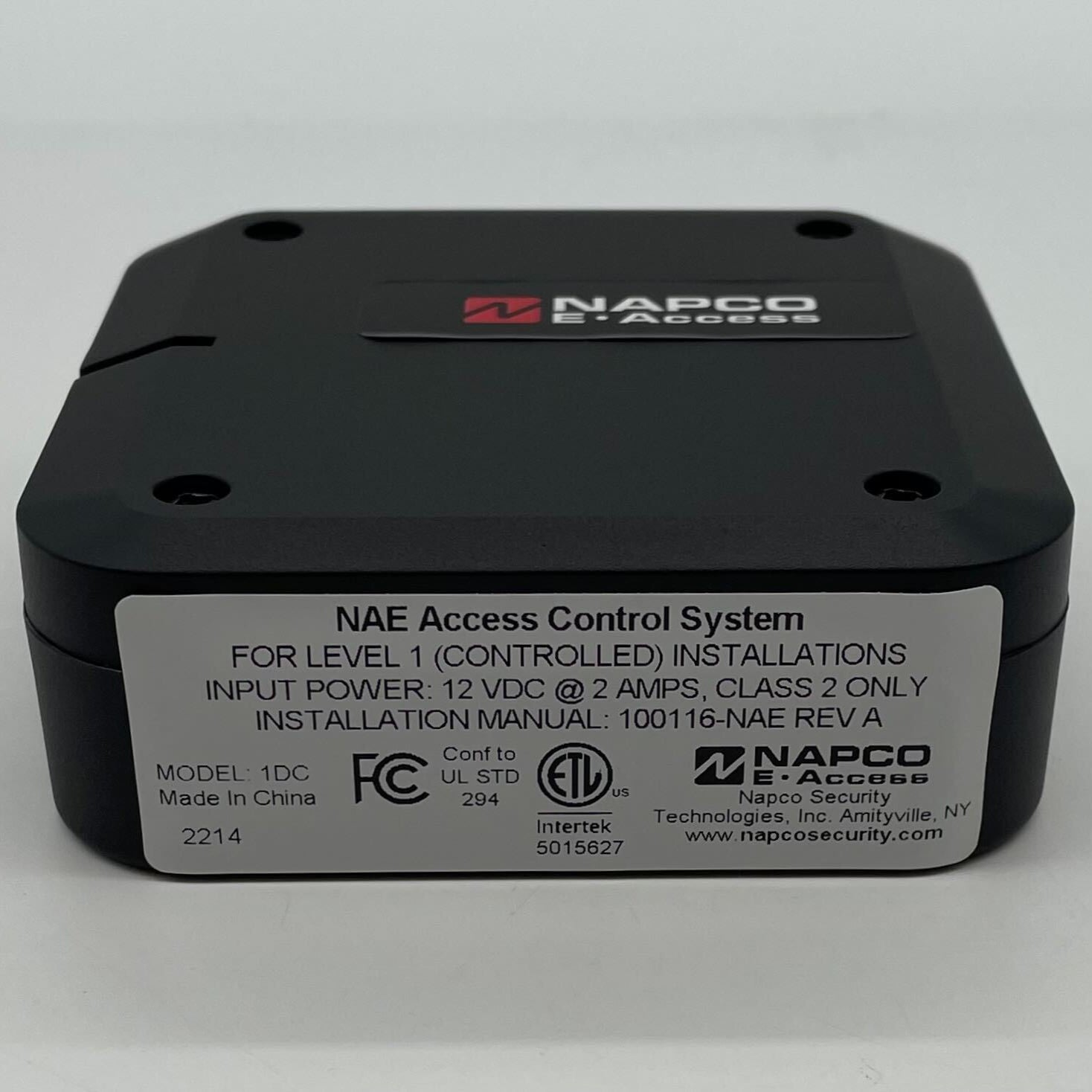

Regulated 12 VDC @ 2A, Class 2 (not supplied) |
| Standby current |
350 mA @ 12V |
| Reader power |
300 mA per reader, 600 mA per system |
| Network |

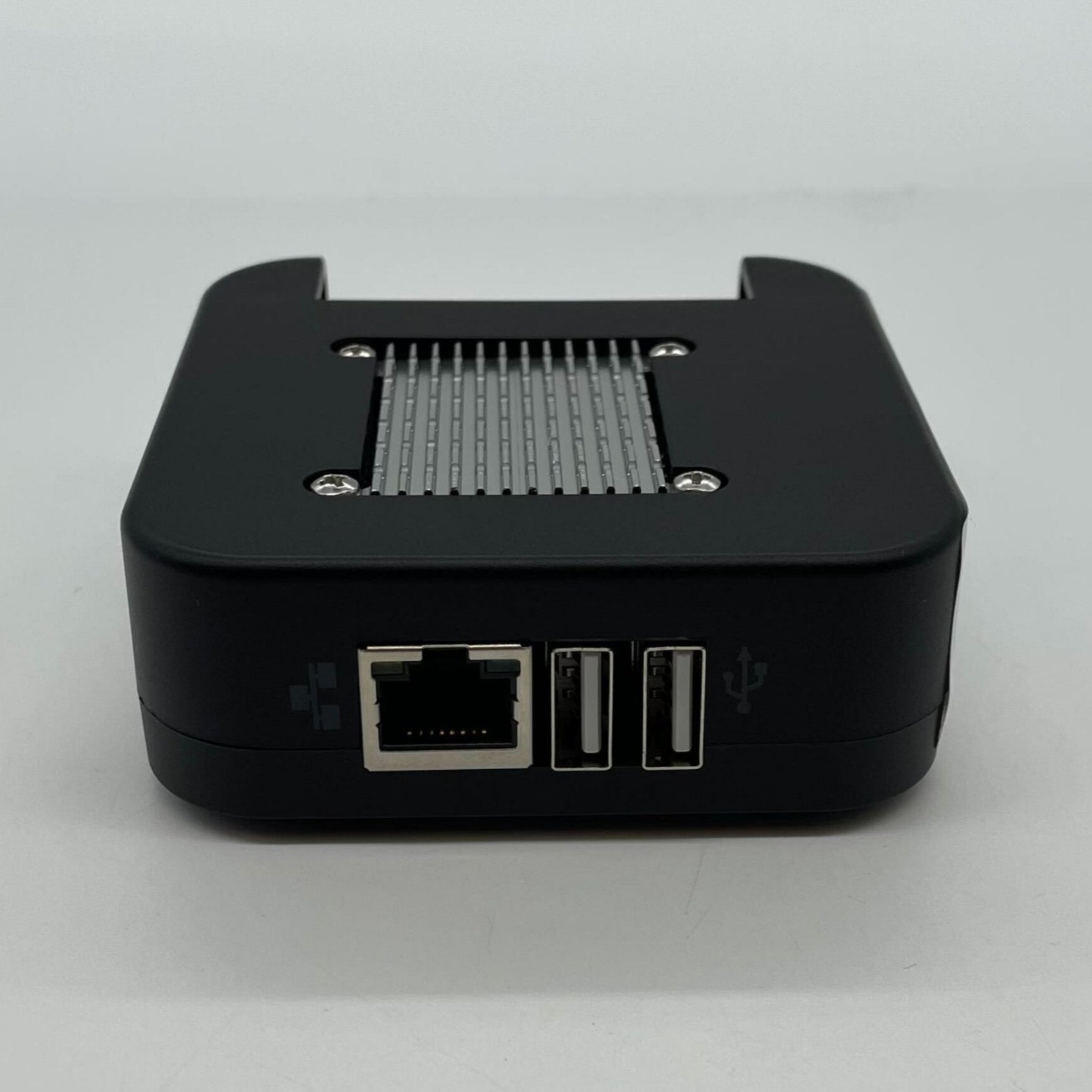

1 Gigabit auto-sensing Ethernet port |
| Enclosure |
3.2 x 3.0 x 1.3 in. (81 x 78 x 32 mm) |
| Operating temperature |
50°F to 95°F (10°C to 35°C) |
| Approval |
ETL / UL 294 |
| Warranty |
3 years |
Features

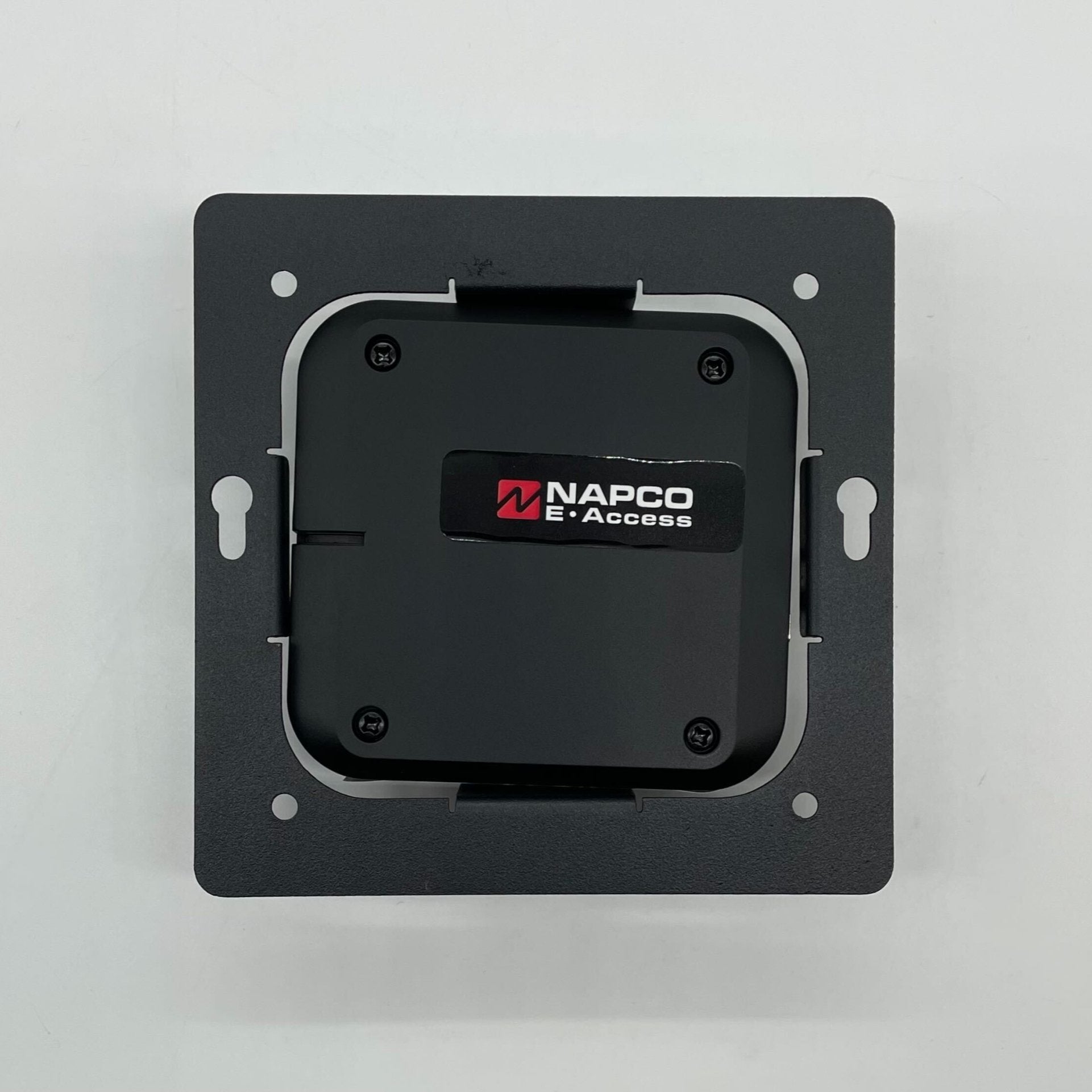

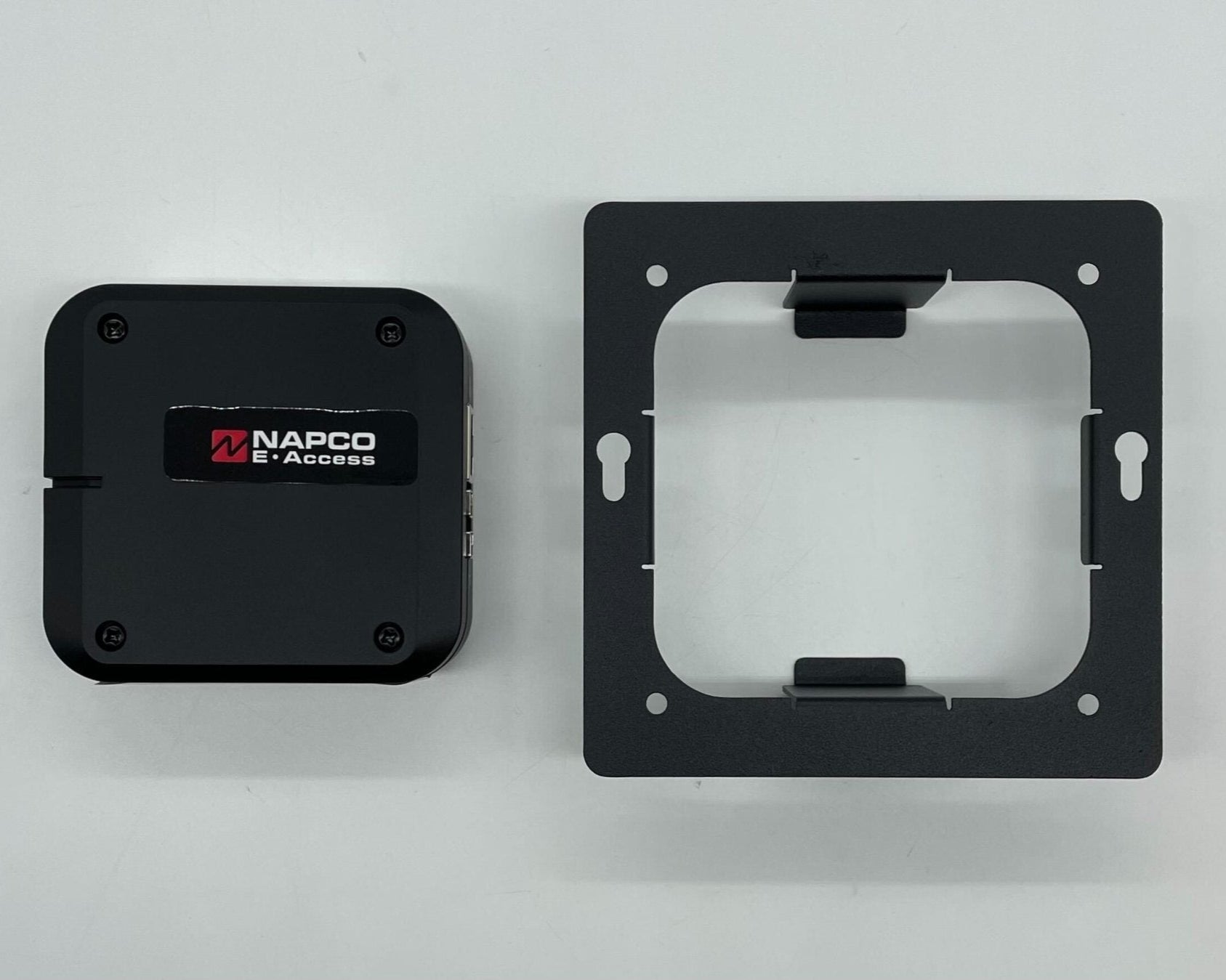

- Mounting bracket included
- Optional NAE-POE-1D 12 VDC 2A PoE power supply
- Includes mobile app support
