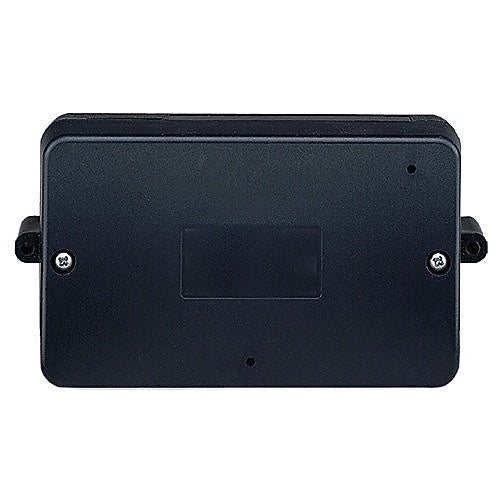

Napco GEMC-EZM8 is a zone expansion module for GEMC-Series control panels. Each module adds up to eight zones and can be configured for either four or eight zones.
Installation involves wiring the expansion zones to the module and then the module to the control panel.
Features
- Adds up to 8 zones, configurable as 4 or 8
- Input power of 7.5 to 12.5 V DC at 60 mA
- PGM output (active low) 5 mA at 12 V, for power-limited circuits under 14 V DC only
- PGM output for burglary applications only
Specifications
| Type |
Zone expansion module |
| Zones |
4 or 8 (configurable) |
| Input power |
7.5 to 12.5 V DC, 60 mA |
| PGM output |
Active low, 5 mA, 12 V |
| Works with |
Napco GEMC-Series control panels |
