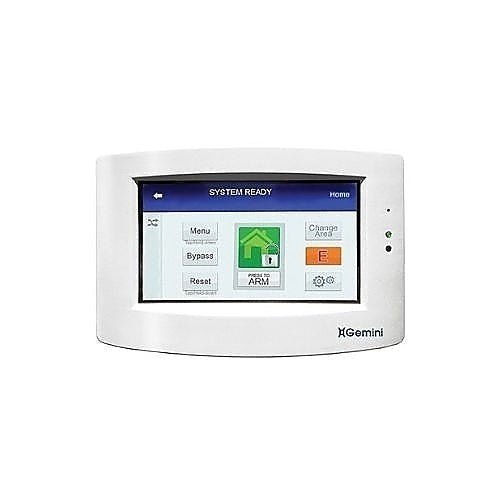

Napco GEM-TOUCH — Gemini 4.3 in. full color security touchscreen keypad, hardwired, with a four zone EZM expander built in.
This is a keypad for the Napco Gemini intrusion panels rather than a fire annunciator, and it ships with a trim plate so it drops into the opening left by a larger Gemini alphanumeric keypad without reprogramming. One limit first: Napco states that the GEM-TOUCH cannot be used to program the panel.
- Supported panels GEM-P816, GEM-P1632, GEM-P1664, GEM-P3200, GEM-P9600 and GEM-X255
- Built-in four zone EZM expander, with a retrofit trim plate included
- 5.38 in. W × 3.75 in. H × 1.38 in. D
- Nominal operating current 148 mA peak, boot 249 mA, USB update 198 mA
- PGM output maximum 5 mA at 12 V nominal; 32 °F to 122 °F (0 °C to 50 °C)
- One-button arming with status icons or a traditional keypad view, dual-line display by area
It retrofits the GEM-RP1CAe2 and GEM-K1CA directly, and Napco warns that on a multi-keypad system all keypads must be classic GEM-RP prefix or all K Series GEM-K prefix, never mixed. From the factory it is addressed 00, not 01 as other Gemini keypads are.
