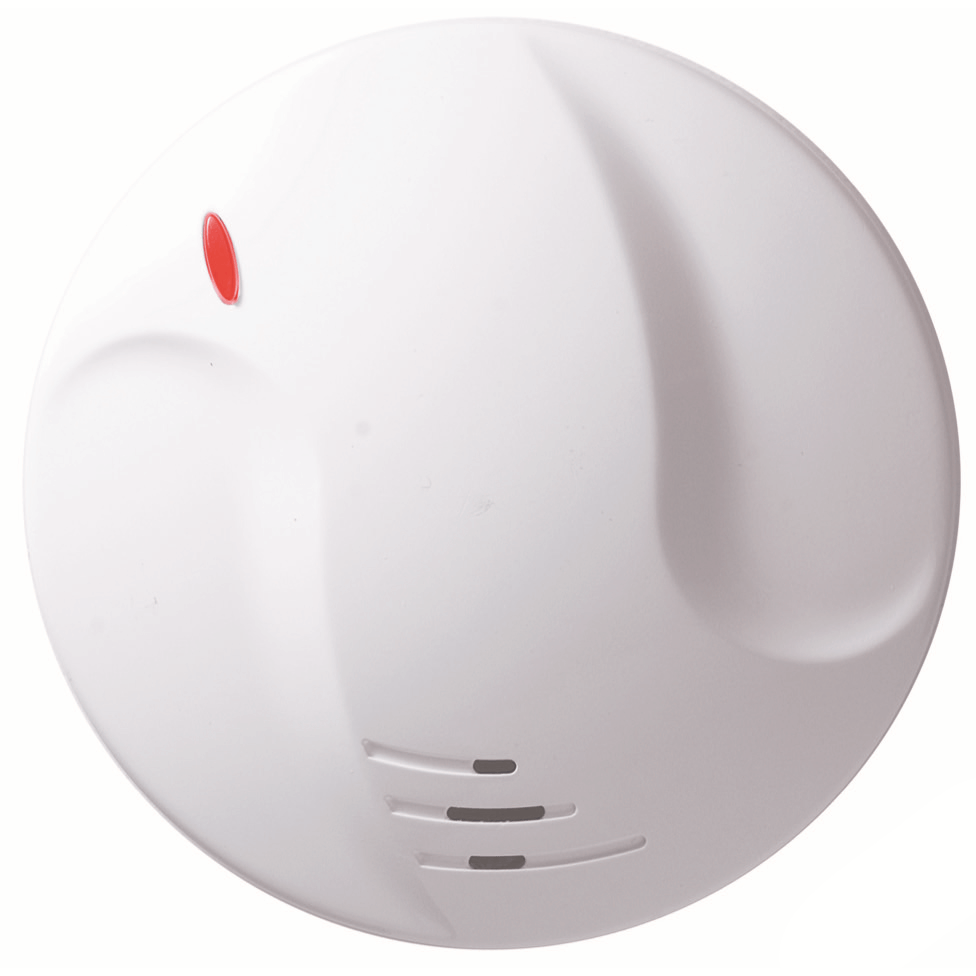

Napco GEM-SMK-E is an indoor, residential, wireless, single-station photoelectric smoke detector. Its RF transmitter sends alarm, trouble and supervisory signals to compatible Napco fire alarm control units. It is used for wireless smoke detection in residential installations where running detector wiring is impractical.
Specifications
| Detection |
Photoelectric smoke |
| Type |
Single-station, battery operated, wireless |
| RF frequency |
319 MHz |
| Battery |
One removable 3 VDC CR123A (Panasonic CR123A or Duracell DL123A) |
| Standard |
UL 268, 7th Edition |
| Application |
Indoor, residential |
| Approval |
CSFM approval 7272-0992:0505, category 7272 system-type photoelectric smoke detector |
Features
- Supervised digital wireless operation
- Sends alarm, trouble and supervisory signals
- For use with separately certified compatible residential fire alarm control units
- Installed per Napco instructions, NFPA 72 and local codes
- Model PSMK is the 433 MHz version of the same detector
