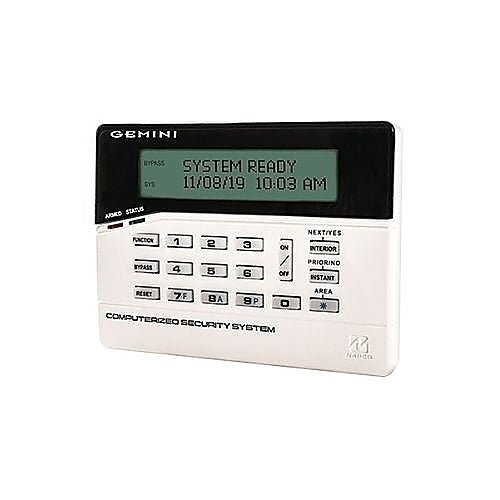

Napco GEM-RP1CAE2 — Gemini alphanumeric LCD keypad with a built-in four-zone expansion module, written GEM-RP1CAe2 by Napco.
Napco installation manuals class it a 2-line combination fire, burglary and access keypad. It is the classic keypad rather than the later K Series; the GEM-K1CA is the same four-wire bus device with stay and away buttons added.
- 32-character backlit dual-line display with custom alphanumeric zone directory
- Integral 4-zone EZM, supplied only on the GEM-RP1CAe2 and GEM-K1CA
- 100 mA draw, or 35 mA with backlighting disabled by cutting W1, W2 and W3
- Up to seven keypads per panel, each set to its own address, 1 through 7
- Four-wire remote bus; 1000 ft. maximum run on 22 AWG, divided by the keypads and EZMs on it
- 4 × 5 × 1 in. (HWD); fire, police and auxiliary programmable panic keys
GEM-K1CA is the K Series equivalent, and Napco advises using all classic or all K Series keypads rather than a mixture. GEM-RP2ASe2 is the utility LCD keypad built on preset words, and GEM-RP3DGTL the digital keypad; neither carries the zone expander.
Documents
FAQ
How many keypads can one panel take?
Up to seven keypads, each set to its own address from 1 to 7.
Does it include a zone expander?
Yes. The GEM-RP1CAe2 has an integral 4-zone expansion module.
How far can it be from the panel?
The four-wire remote bus runs up to 1000 ft on 22 AWG, shared by all keypads and expanders on it.
Can I mix it with K Series keypads?
Napco advises using all classic or all K Series keypads rather than a mixture.
