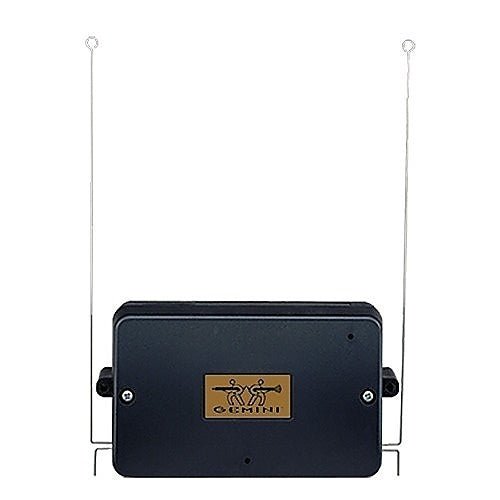

Napco GEM-RECV32 is a 32-zone wireless receiver module that acts as the hardwired interface between GEM-series control panels and their wireless transmitters. The wireless system uses a compatible GEM-series panel, at least one GEM-RECV receiver, and one or more GEM-series transmitters.
The transmitters can be wireless smoke detectors, space-protection devices, window and door sensors, or other devices that report zone status and supervision data to the receiver without wires.
Features
- 32 wireless zones
- Dual diversity antennas to reduce nulls
- Separate programmable supervisory times by device type
- Tamper and RF jamming supervision
- Audible fault-find mode in walk test
Specifications
| Type |
Wireless receiver module |
| Zones |
32 |
| Compatible panels |
GEM-series (GEM-DT, GEM-GB listed) |
| Color |
Black |
| Height |
3.6 in |
| Width |
6.8 in |
| Depth |
1.5 in |
