Napco GEM-P9600 — Gemini hardwire and wireless burglary and residential fire control panel with integral digital communicator.
Napco lists UL 1023 household burglar and UL 985 household fire warning, plus UL 609, UL 1610 and UL 365 burglar listings. No UL 864 certification appears, so it is a household fire panel, not a commercial fire alarm control unit.
- 8 on-board zones, expandable to 96 with expansion modules, wireless receivers and 4-zone keypads
- 8 partitions, 96 user codes, 15 keypads, 800-event log
- Fire zones accept 2-wire and 4-wire 12 VDC smoke detectors
- Powered from a 16.5 VAC Class 2 plug-in 40 VA or 50 VA transformer (TRF11 or TRF14)
- Residential fire or combination fire and burglary: 24 hours standby on an RBAT7 12 VDC 7 Ah battery, 150 mA standby, 650 mA alarm
- Relay outputs 12 VDC 1.2 A wet or 24 VDC 2 A dry; board 12 3/8 × 13 7/8 × 3 1/2 in. without cover

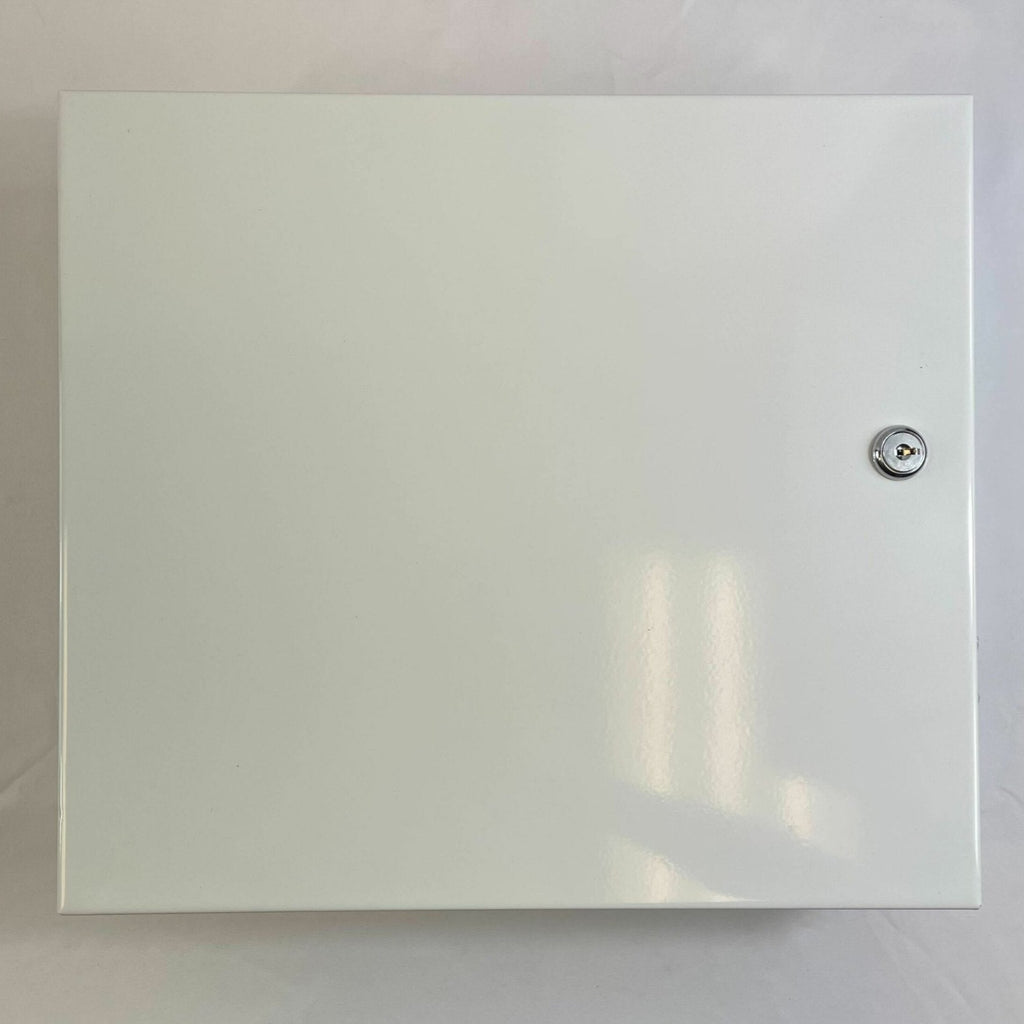

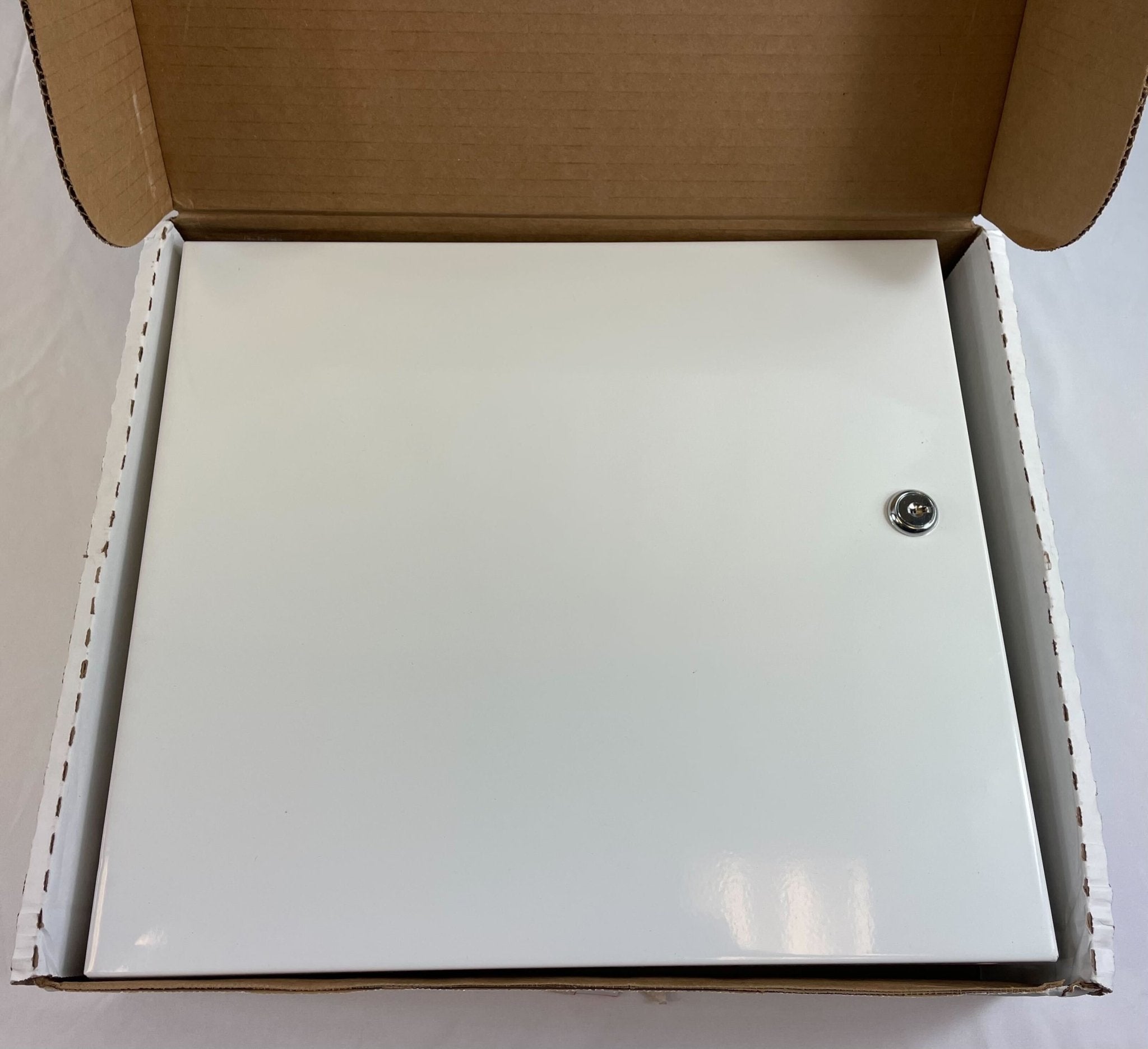

Keypads, transformer and battery are separate catalogue numbers. CSFM describes a board in a Model H299 enclosure; GEM-P9600M is the mercantile version in the H217 enclosure via the H1217 kit, where Napco says not to use fire zones.
