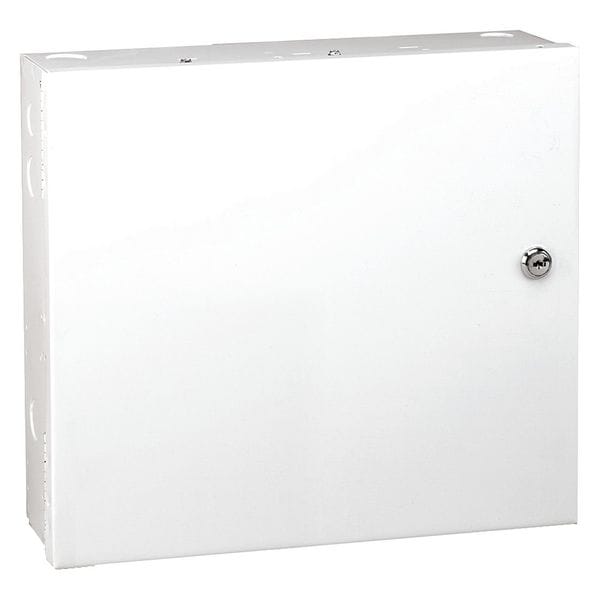

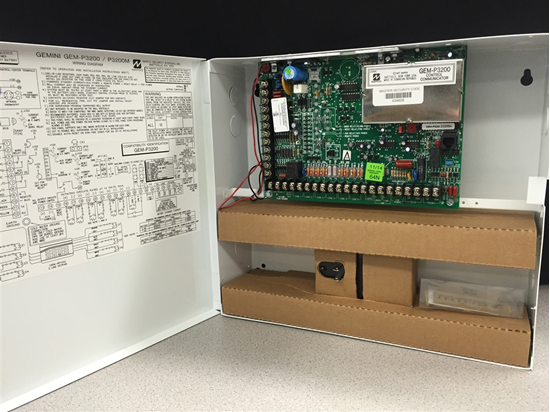

Napco Gemini GEM-P3200 — microcomputer-based burglary and residential fire alarm control panel of modular design, with an integral digital communicator.
That class noun is the one Napco uses, and the listings agree: UL 1023 household burglar alarm, UL 985 household fire warning, UL 609 local and UL 1610 central station. UL 864, the commercial fire standard, appears nowhere in its installation instructions, so fire capability here is the household kind.
- Integrally an 8-zone panel, expanded by zone modules, wireless receivers and keypad EZMs
- Zones 7 and 8 take two-wire smoke detectors by JP7 jumper; zones 1 to 6 convert with an EOL130 resistor and a board cut
- Two area partitions, 32 coded users, 800-event log
- Three on-board relay outputs, expandable to 24 external; keypad panics
- 16.5 VAC from a Class 2 plug-in 40 VA transformer; loop 10 to 13 VDC; up to seven keypads
Napco supplies the panel and transformer; keypads, the RBAT4 battery and modules such as GEM-EZM8 are separate. GEM-P3200M is the Mercantile version, made with the H1217 kit, where fire zones must not be used.
