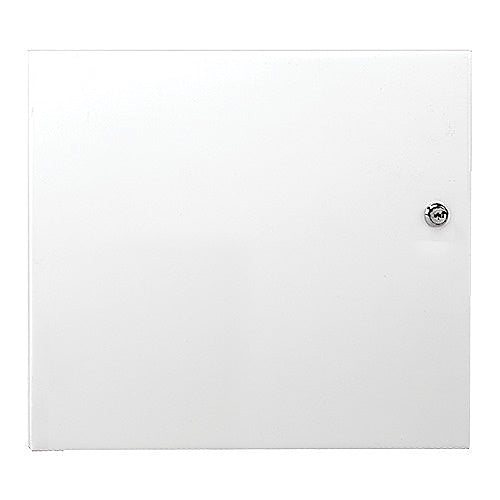

Napco GEM-P1664 is a Gemini microcomputer-based burglary and residential fire alarm control panel of modular design. It supports up to 64 zones, 4 partitions and 64 users.
The panel has 8 zones built in. Zone doubling, optional zone expansion modules, wireless receiver modules and GEM-RP1CAe2 / GEM-K1CA keypads bring the total to 64 zones.
Features
- 8 end-of-line resistor burglary zones, programmable for area, exit/entry delay, interior (stay) bypass and more
- Expandable to sixteen end-of-line resistors with zone doubling or series zone doubling with loop supervision
- Supports up to 64 zones with zone expansion modules, wireless receiver modules and 4-zone keypads
- User codes and zone descriptions outside a user's assigned areas can be blocked from the keypad display
- Dynamic battery test interrupts charging and puts the battery under load every four hours
Specifications
| Product type |
Universal alarm control / communicator |
| Built-in zones |
8 |
| Maximum zones |
64 |
| Partitions |
4 |
| Users |
64 |
