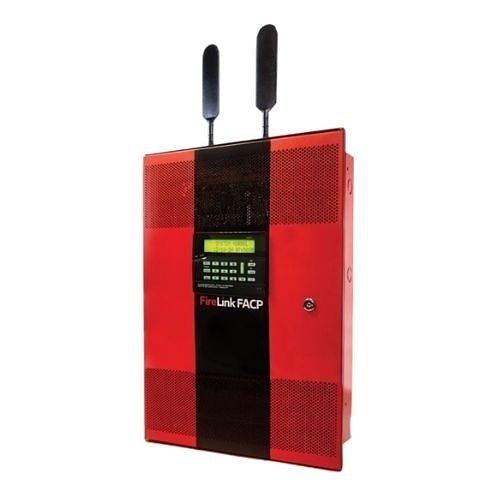

Napco FLX2-255 — FireLink commercial fire alarm control panel for 128 to 255 points, with a menu-driven LCD annunciator and a StarLink Fire MAX2 dual SIM cellular communicator built in.
Panel, annunciator and communicator share one locking red enclosure, and the dual SIM radio picks whichever of the Verizon and AT&T networks serves the site better, in place of two leased telephone lines.
- Four programmable NAC circuits at 2 A each at 24 V, or 6.5 A total; up to 96 outputs
- Onboard 7 A at 24 V power supply; preprogrammed on zones 1 to 8
- Conventional 2-wire or 4-wire smoke inputs and 1- to 4-zone EZM expanders
- Addressable SLC devices through the GEMC-FW-SLC module, two per panel at 128 devices each
- Enclosure 25 × 14.25 × 5.2 in., taking up to 32 Ah of 24 V standby battery
- UL 864 10th Edition, NFPA 72 2019 back to 2007, CSFM, LAFD, FDNY COA
Napco calls this panel addressable in its specification block and conventional in its own ordering line, and it is in practice both: conventional zones on the fire bus, addressable devices once an SLC module is fitted. The FLX2-32 is the smaller sibling.
