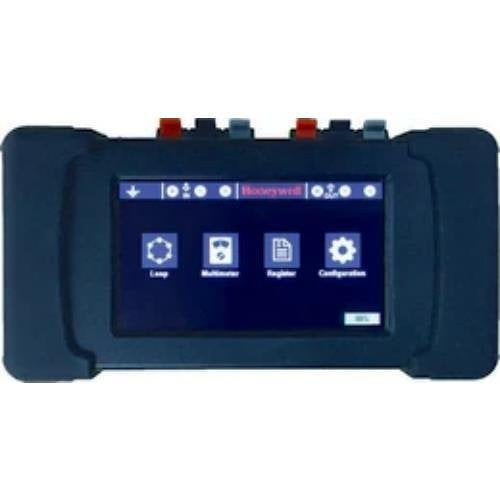

Honeywell POL-200-TS is a hand-held loop diagnostic tool that helps technicians install and maintain addressable fire detection systems. It recognizes addressable loop devices using the CLIP, OPAL and ADVANCED protocols of Notifier, Morley-IAS, System Sensor and Honeywell, and it can be used loop by loop before the panel is installed.
A color touch screen with simple icons runs one-touch functions and can be used while wearing gloves. The mapping function uses the device isolators to check the loop cabling topology, and the log function creates a file with the status of each loop device for maintenance records.
Specifications
| Power supply |
230 VAC with external 12 V charger, or internal rechargeable battery |
| Battery |
6 x AA Ni-MH 1.2 V (2000 mA), rechargeable |
| Battery life |
Up to 6 h on a full charge, depending on outputs and LEDs in use |
| Charger |
12 V 24 W (2000 mA); fast charge in 1 h with the unit off |
| Screen |
Color TFT 4.3 in. touch screen |
Features
- Loop mapping and fault location
- Reads production date and detailed device information
- Device serial number, sensor reading and date of manufacture shown for OPAL and ADVANCED protocols
- Testing of loop faults and wiring
Documents
FAQ
Which protocols does the POL-200-TS support?
CLIP, OPAL and ADVANCED protocols for Notifier, Morley-IAS, System Sensor and Honeywell devices.
Can it test a loop before the panel is installed?
Yes. It is portable and works loop by loop from any location on the loop before the panel is installed.
How long does the battery last?
Up to 6 hours on a full charge, depending on the outputs and LEDs in use; a fast charge takes 1 hour with the unit off.
