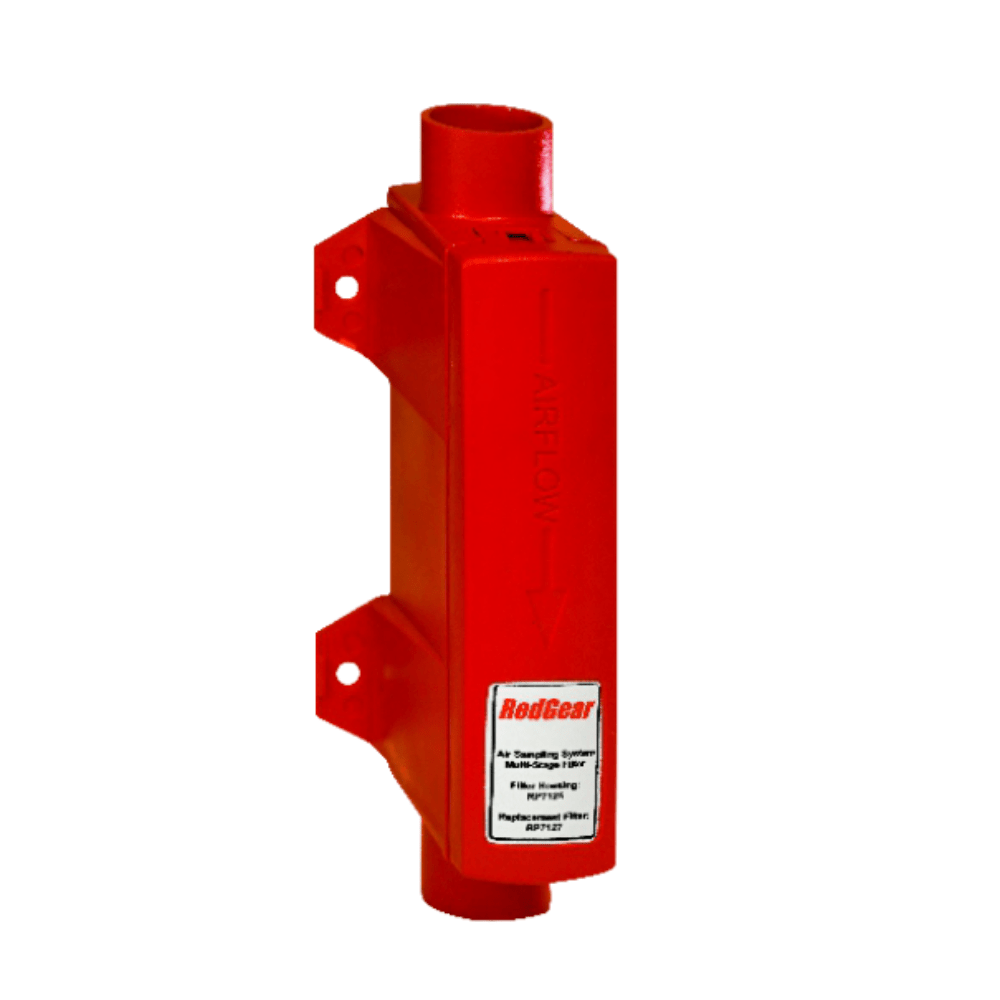

RP7125 is a 3/4 in. in-line air filter from the SAFE Fire Detection RedPipe range of air sampling installation supplies. It filters dust out of the air going into an air sampling smoke detection system and is intended for hazardous and industrial environments. In SAFE's system diagram the in-line filter sits in the pipe run next to the detector.
Specifications
| Type |
In-line air filter for air sampling pipe |
| Pipe size |
3/4 in. (RedPipe 3/4 in. SCH40) |
| Replacement element |
RP7127 |
| Origin |
Made in the USA |
Compatibility and installation notes
- SAFE lists the RedPipe range for use with all air sampling smoke detectors.
- Replacement filter for the RP7125 is ordered as RP7127.
- Not the same part as the RP5245 heavy duty dust/dirt filter or the RP5244 condensation trap, which are listed separately.
Documents
Specifications from SAFE Fire Detection RedPipe In-Line Filter Data Sheet v1.0 and RedPipe Catalog 2023 v1.0. Manufacturer specifications are subject to change.
