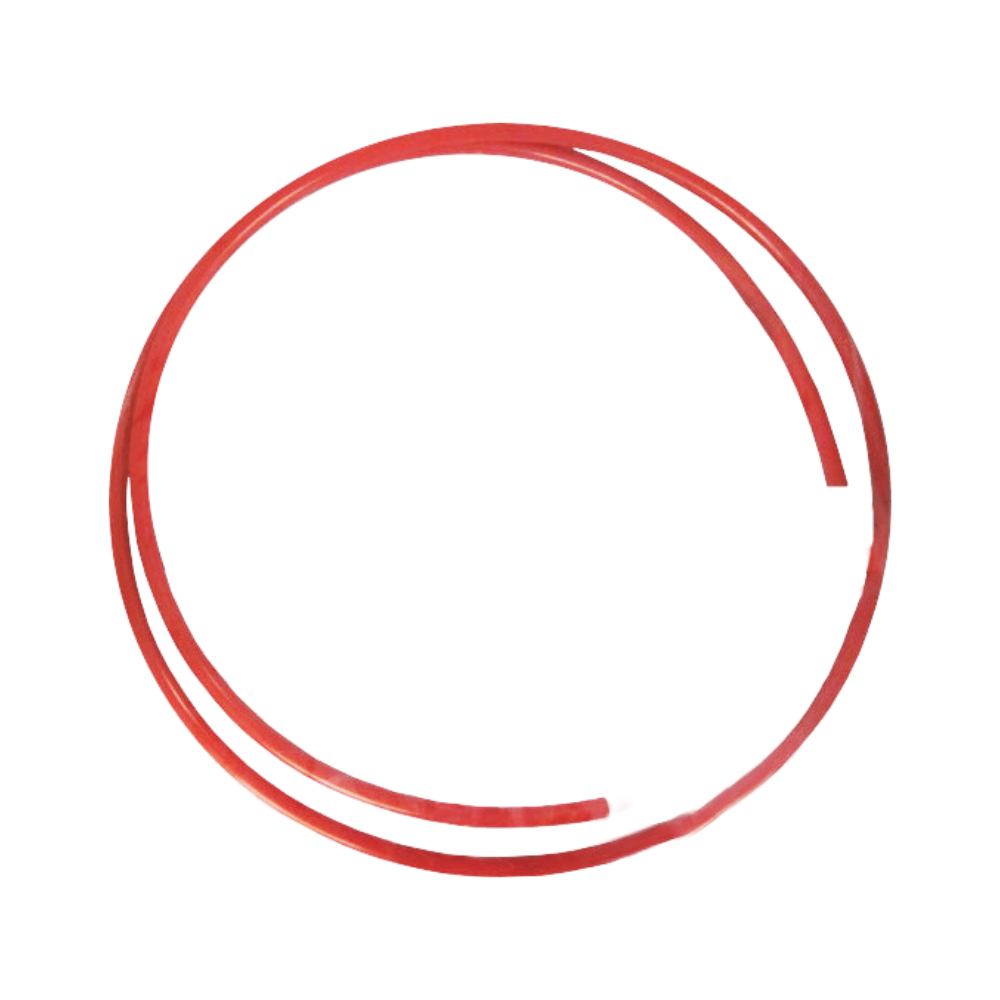

RP5239 is red capillary tubing, 3/8 in. OD, in a 100 ft roll, for drop ceiling or in-cabinet sampling drops on aspirating smoke detection pipe networks. Edwards lists it among the sampling pipe and fittings intended for ModuLaser and AirSense air-aspirating detectors. It is part of the RedPipe range made by SAFE Fire Detection, which lists it with the 3/8 in. quick disconnect and capillary sampling points.
Specifications
| Type |
Capillary tubing, red |
| Diameter |
3/8 in. OD |
| Length |
100 ft roll |
| Operating temperature |
-94 °F to 180 °F |
Compatibility and installation notes
- Connects to the sampling pipe with the RP5223 3/8 in. quick disconnect; SAFE notes two quick disconnects are required for each capillary drop.
- Edwards notes the pipe and fittings are intended for ModuLaser and AirSense detectors; use on another manufacturer's system may void the warranty.
Related models
-
RP5219: 3/8 in., 50 ft roll.
-
RP5227 and RP5229: 1/2 in., 50 ft and 100 ft rolls.
-
CM10963-250: black capillary tubing, 1/4 in. ID x 3/8 in. OD, 250 ft roll, max. 175 °F.
Documents
Specifications from Edwards data sheet E85001-0633, Sampling Pipe and Fittings, Issue 1.0, and SAFE Fire Detection RedPipe Catalog 2023 v1.0. Manufacturer specifications are subject to change.
