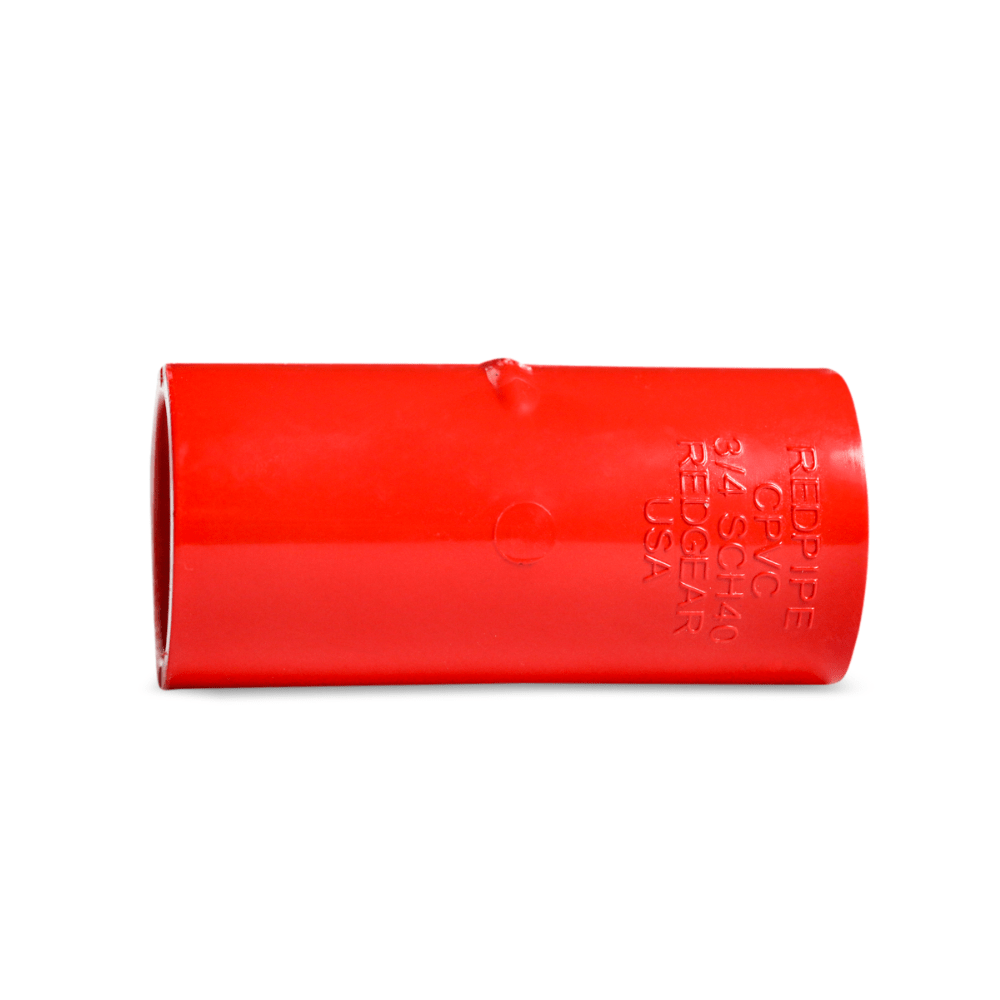

ModuLaser RP5206X — 3/4 in. RedPipe socket coupling for aspirating detection sampling pipe, supplied 10 per pack.
RedPipe is CPVC pipe and fittings built specifically for air sampling smoke detection and listed to UL 1820 for that use. The coupling is the plain in-line joiner of that range: a socket at each end takes a cut length of 3/4 in. RedPipe, solvent cemented. Deburr and wipe each cut end, and use only a small amount of cement, because excess runs down inside the bore and disturbs the airflow the detector depends on.
- 3/4 in. socket-to-socket coupling for RedPipe CPVC sampling pipe
- Supplied 10 per pack
- Plenum rated; flammability V-2 to NFPA 90A
- Operational temperature 0°F to 201°F (–17°C to 93°C)
- Rotate about a quarter turn on assembly and allow roughly a minute before moving on
RP5202X is the 90° elbow, RP5203X the 45° elbow, RP5204X the tee, RP5205X the end cap and RP5215X the radius bend, each also 10 per pack, while RP5208 is the union and RP5212 the pipe clip hanger at 25 per pack. It is also not the VESDA VP-COUP, which ships 15 per box.
