ModuLaser 9-30797 — replacement accessory kit of interconnect and termination hardware for the ModuLaser aspirating smoke detector.
ModuLaser detector and display modules are tied into a cluster with small parts: the ribbon cable between modules, the clips that lock them side by side, the plug-in terminal blocks for the backplane, and the termination parts for the bus and the supervised inputs. They are sold together as this one kit.

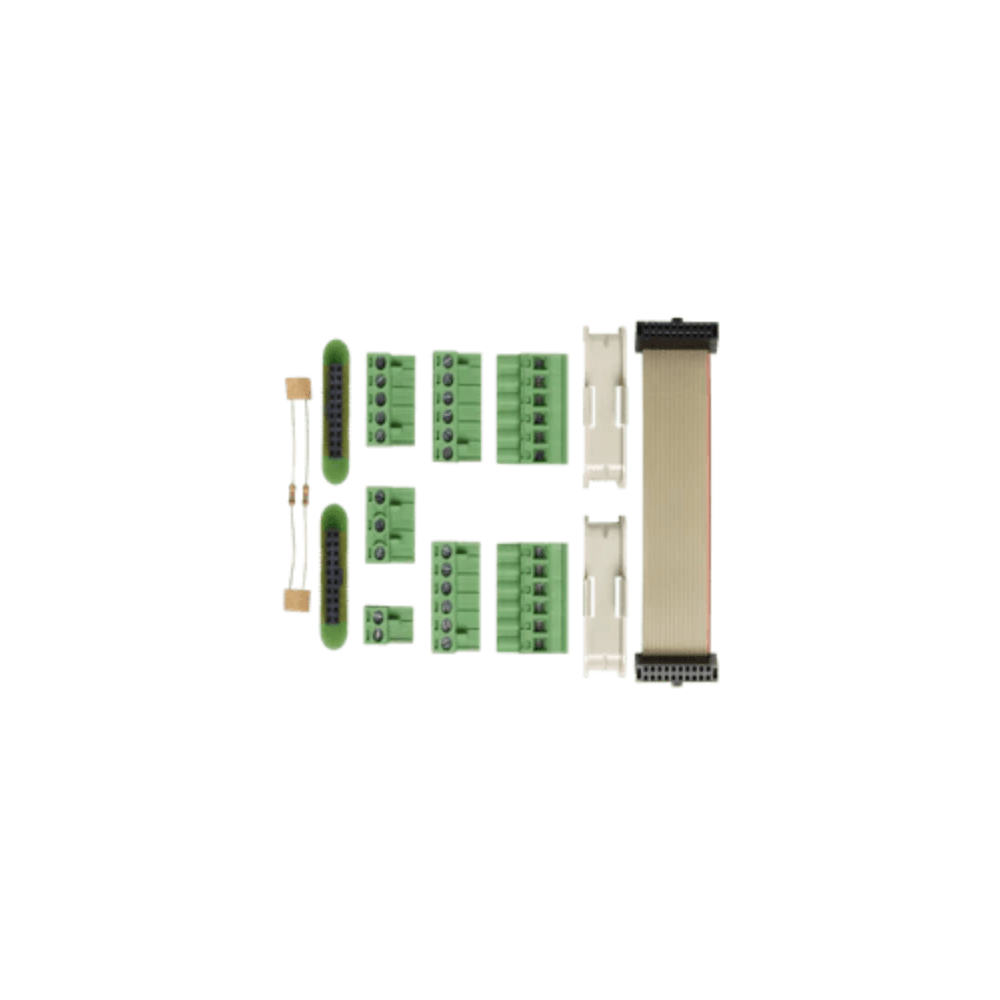

- One interconnecting ribbon cable for use between modules
- 2 interconnecting clips, for modules installed side by side
- 2 bus termination end-of-line units
- 7 pluggable connectors for the ModuLaser backplane connections
- 2 end-of-line resistors for input line monitoring; the installation manual specifies 15 kΩ on I/P1 and I/P2
- 0.23 lb shipping weight in the Edwards ordering tables
This is hardware only, not a module. Keep it apart from the other 9-307xx spares: 9-30791-2 detector cover, 9-30792 display cover, 9-30794 grommets, 9-30795 and 9-30796 pipe adapters, 9-30798-2 wiring housing, 9-30699N-P filter pack. The modules themselves are FHSD8330-ULF and FHSD8310-ULF.
