| General: Status indication |
LED's |
| General: User interface |
TFT and navigation buttons on Normal and Command Display Modules |
| General: Alarm levels |
4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| General: Event log |
20 000 events per module |
| General: RS485 support |
Yes (SenseNET and SenseNET+) |
| General: Connectivity |
USB Master - Type A (storage drive) USB Slave – Type B (remote connectivity) Ethernet – CAT 5, 5e or 6 cable (remote con- nectivity) |
| Electrical: Operating voltage |
24 VDC nominal (18.0vdc to 30Vdc) |
| Electrical: Current consumption |

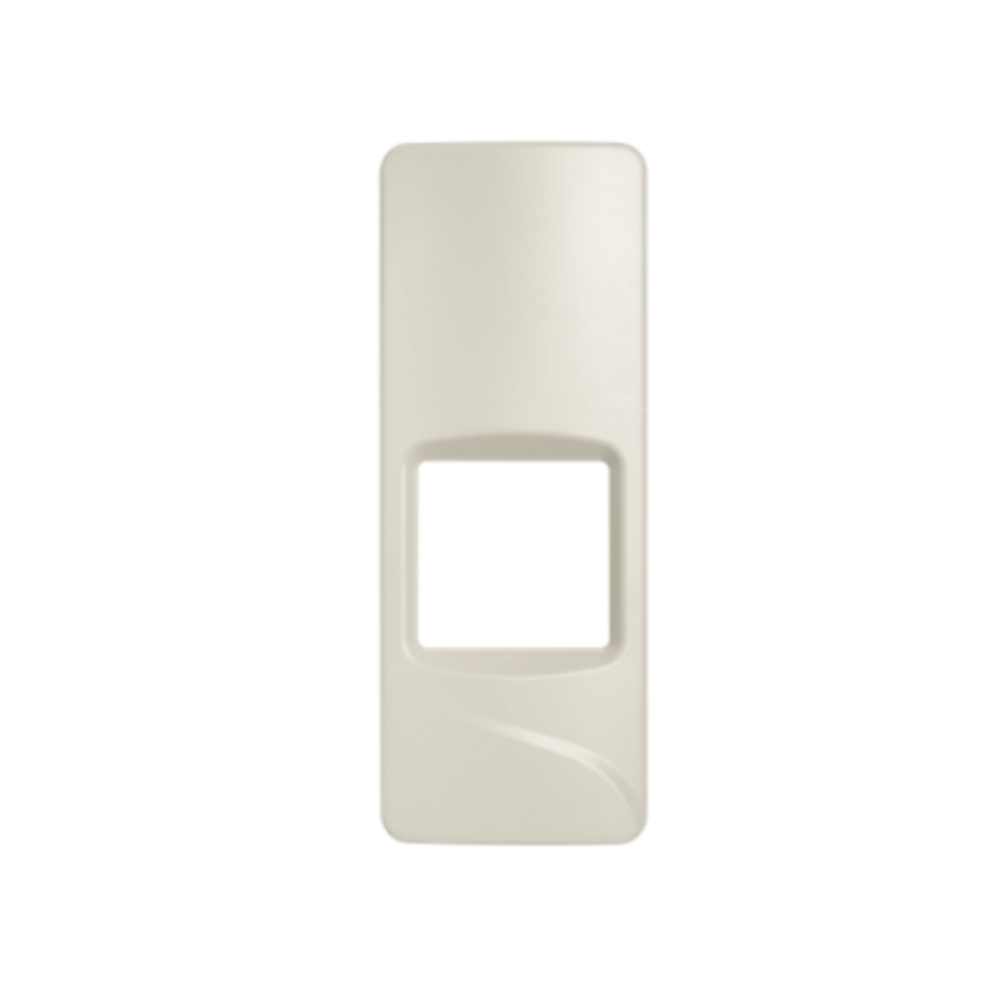

Minimum Display Module (at 24 VDC) 204 mA - Minimum Display Module |
| Detection principle |
Laser light scattering mass detection and particle evaluation |
| Detection: Particle sensitivity |
0.003 to 10 microns |
| Sampling pipe: Length |
Up to 250 m / 820 ft* combined per detector module |
| Sampling pipe: Quantity sampling |
Up to 50* |
| Sampling pipe: Inlet location |
Top or bottom |
| Sampling pipe: Exhaust size |
27 or 25 mm (1.06 or 0.98 in) outer diameter |
