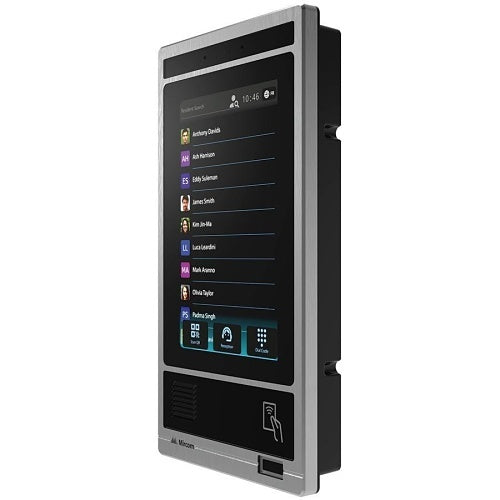

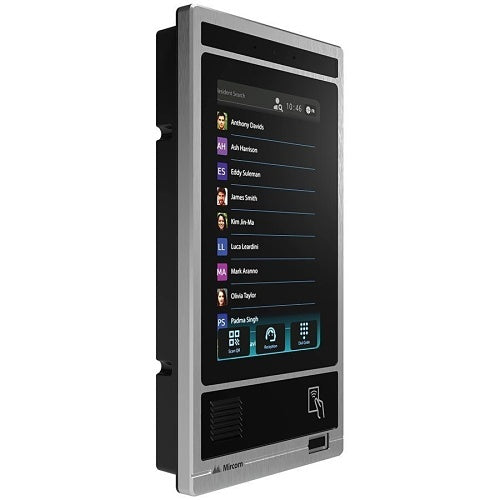

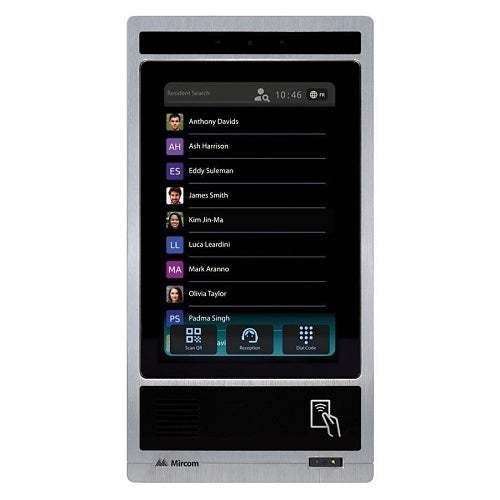

Mircom TX3-T10-S — 10 in. touch screen audio and video entry panel for multi-unit buildings, silver finish, with a built-in two-door controller.
This is a door entry and access control panel, not a fire alarm device. A visitor searches the on-screen directory and calls a resident over a telephone line, over VoIP or over a no-subscriber-line link; the resident answers and releases the door.
- 10.1 in. automotive grade touch screen behind 4 mm vandal-resistant glass, 1000 nits
- 5 megapixel camera; H.264 video, G.711 µ-law audio; speaker 2 W nominal, 4 W max
- Powered by PoE+ to IEEE 802.3at, or a 24 to 48 V DC 30 W auxiliary input
- Two Form C dry contact relays rated 30 V DC 2 A or 125 V AC 0.5 A
- Four inputs, a telephone line, a 10/100/1000 PoE+ port, USB 2.0 and Wiegand for an external reader
- Built-in 125 kHz proximity reader, 26-bit Wiegand format
- 7-11/16 × 14-1/2 × 2-3/8 in. (196 × 368 × 60 mm), 8.70 lb with the back box
The TX3-T10-G is the same panel in space gray. The kit contains the TX3-T10BB mounting box, screws, ferrites and key, so no back box is needed. VoIP runs through the TX3-ATA, and the TX3-PS24-5AF supplies it where PoE+ is absent.
