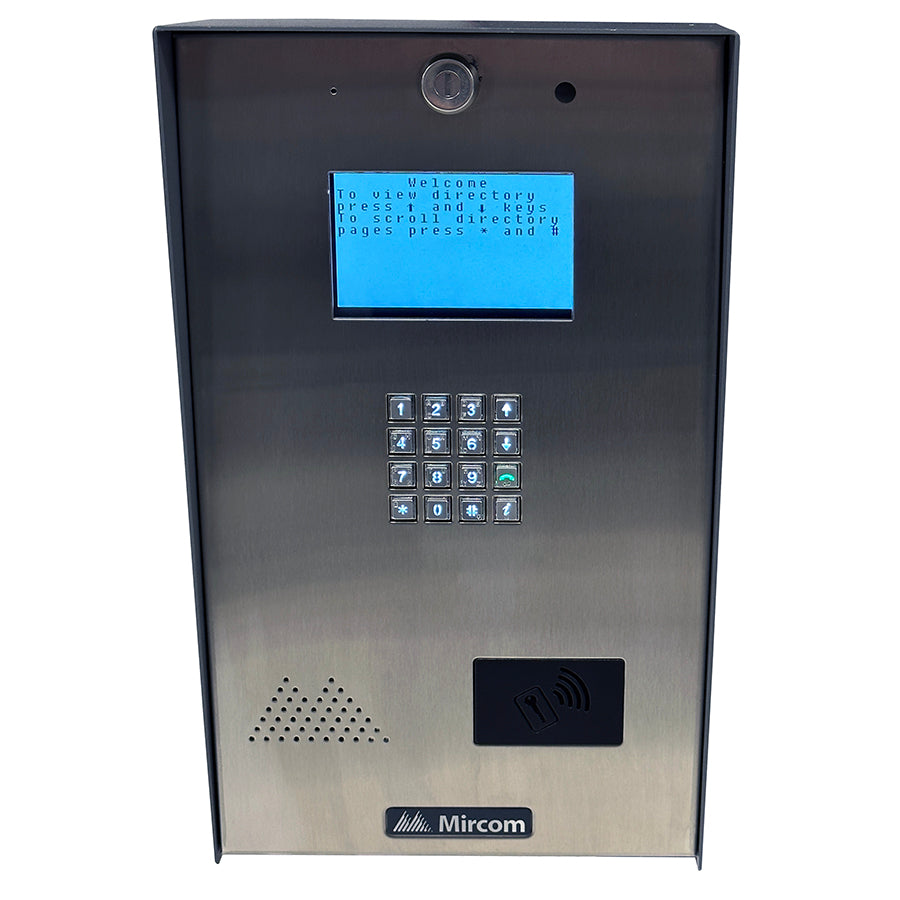

Mircom TX3-2000-8UR-C is a reinforced surface-mount voice entry panel for up to 2,000 occupants, with a card reader option. It gives visitors access to doorways, overhead doors or barrier gates.
The Reinforced Universal enclosure is for outdoor surface mounting and has a built-in rain hood, with optional adaptors for semi-flush or gooseneck mounting. The panel front is heavy stainless steel. It comes with a microphone, a tamper-resistant speaker, a color camera and provision for a postal lock.
Features
- Supports up to 2,000 names
- Stainless steel front panel
- Backlit 8-line scrolling display, switchable to 6 lines for larger fonts
- Backlit 16-digit keypad with Page Up, Page Down, Call and Info keys
- Provision for a postal lock or a card reader (TX3-P300-HA reader sold separately)
- Optional TX3-WIEGAND-OUT module for third-party Wiegand access control
- Multilingual display and voice greeting: English, French-Canadian and Spanish
- Programmed from the keypad or with the TX3 configuration software
Documents
FAQ
Does it need a dedicated phone line?
Not necessarily. The TX3 supports AutoDialer (ADC) mode, which uses a dedicated phone line, and NSL (No Phone Bill) mode, which works without one.
Can it be programmed remotely?
Yes, with the TX3 configuration software and either the TX3-IP module for TCP/IP or the TX3-MDM modem module.
What is the difference between the 8UR-C and the 8CR-C?
The TX3-2000-8UR-C is the surface mount Reinforced Universal enclosure with a built-in rain hood. The TX3-2000-8CR-C is the flush mount Reinforced Continental enclosure.
Can a card reader be added?
Yes. There is provision for a postal lock or a card reader; the TX3-P300-HA reader is sold separately.
