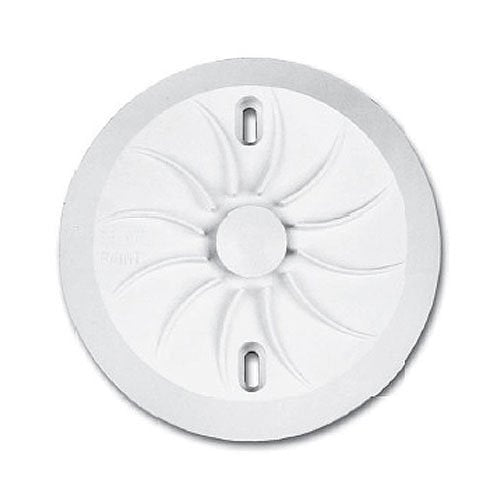

Mircom TD-200 is a fixed-temperature heat detector rated at 200°F. It uses a bi-metal disc as its heat-sensing element and resets itself once the air temperature falls back below the rated level.
The low-profile white housing fits on a standard octagon or square electrical box with a trim plate and protrudes no more than 1 in. below the finished ceiling surface.
Features
- Fixed-temperature operation at 200°F
- Self-restoring: resets automatically when temperature drops below the rated level
- Bi-metal disc heat-sensing element
- White, low-profile housing for ceiling mounting
- Mounts on a standard octagon or square box with a trim plate
- ULC Certified
Specifications
| Rating |
200°F fixed temperature |
| Sensing element |
Bi-metal disc |
| Reset |
Automatic |
| Color |
White |
| Mounting |
Ceiling mount, octagon or square box with trim plate |
| Maximum protrusion |
1 in. below finished ceiling |
