Mircom TD-135 Fixed Temperature 135°F Heat Detector

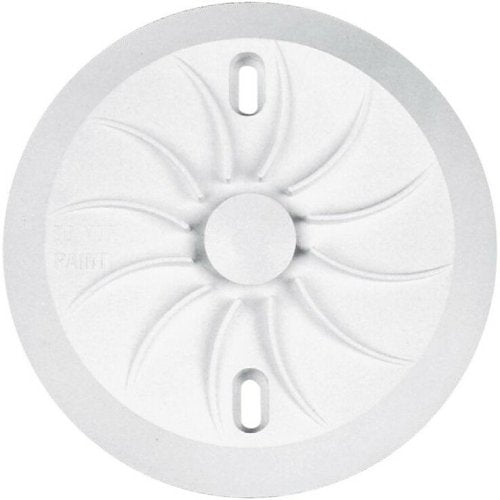

A neutral white exterior and an unobtrusive, low profile housing make the TD heat detector blend onto any ceiling
The plastic housing fits onto any standard octagon or square electrical box with a trim plate. The unit will protrude no more than 1" below the surface of the finishing ceiling. Using a bi-metal disc as a heat sensing element, an alarm is initiated when the air temperature exceeds the unit's rated level. Only when the air temperature decreases below the rated level will the detector automatically reset.
Features
- Coverage: 225 Square' pacing: 15' centre, 7.5' from Wall
- Constructed of fire resistant thermoplastic material
- Operation shall consist of the closing of N.O. contact to initiate an alarm detection circuit
- Self Restoring
- Diameter: 5.5"
