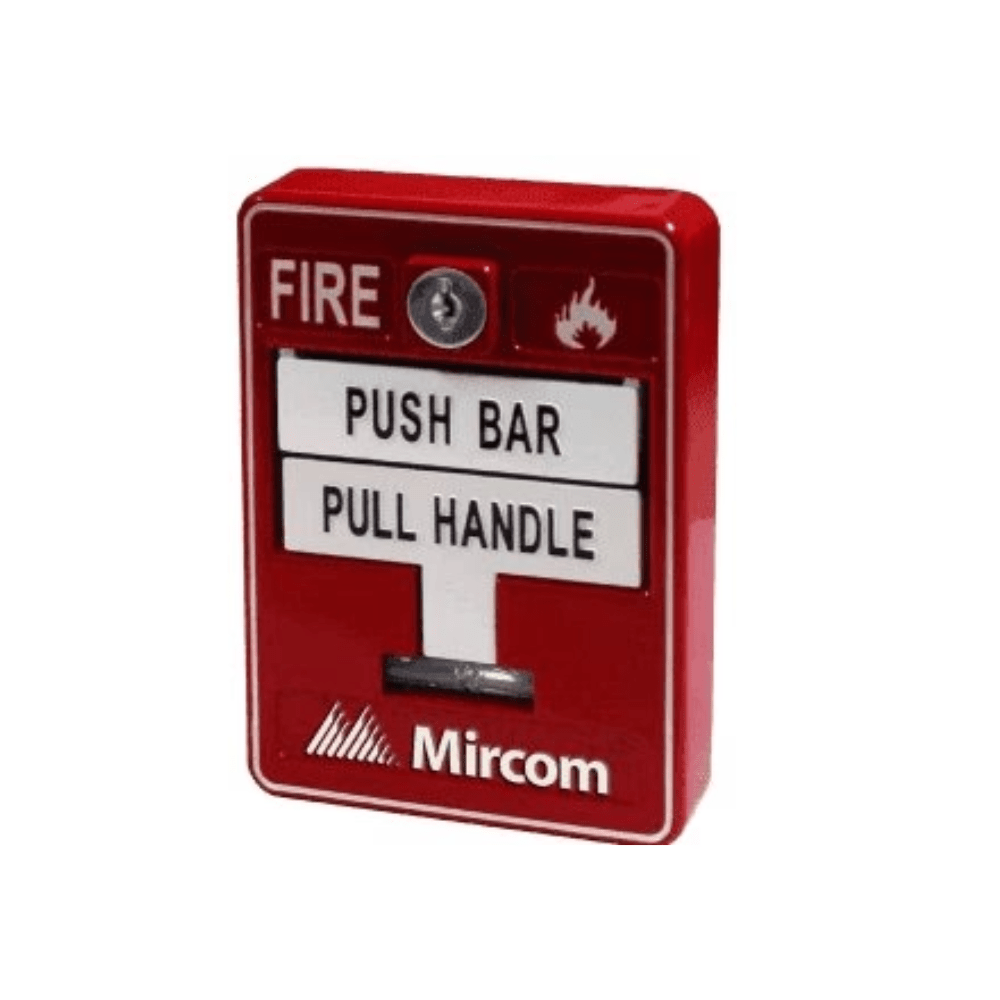

Mircom MS-710U is a high-quality manual fire reporting unit with dual action, SPST contacts, and optional auxiliary contacts
Its gold-plated contacts prevent corrosion and it is available with a weather-proof backbox for outdoor use. The unit is constructed of diecast metal, finished in red enamel paint for quick identification, and meets ADA requirements. It mounts on standard single gang boxes and is key resettable. Installed as per UL and other applicable codes, the immediate operation of the alarm detection circuit is initiated by pulling the handle.
Features:
- Dual Action
- Key resettable
- Terminal connectors
- Gold-plated SPST contacts
- Optional auxiliary contacts
- High-gloss red enamel finish
- Plastic break rod
- Meets ADA 5 lb. maximum manual-force
- Mounts on standard single gang box, Mircom’s BB-700 surface metal backbox or BB-700WP weatherproof backbox
Specifications:
- Constructed of high-quality diecast metal
- Finished in red enamel paint for quick identification
- Pulling the handle initiates the immediate operation of the alarm detection circuit
- Rated for 1 amp, 30 VDC
- Contacts are gold-plated to avoid corrosion
- Listed for outdoor applications when used with the BB-700WP
- Operating instructions in raised English lettering
- Installed as per specific requirements outlined in UL codes, as well as all other applicable national or local codes
- Final acceptance is subject to the local authority having jurisdiction
