Mircom MS-703U — blue die-cast single action emergency manual station carrying two gold-plated Form C contacts.

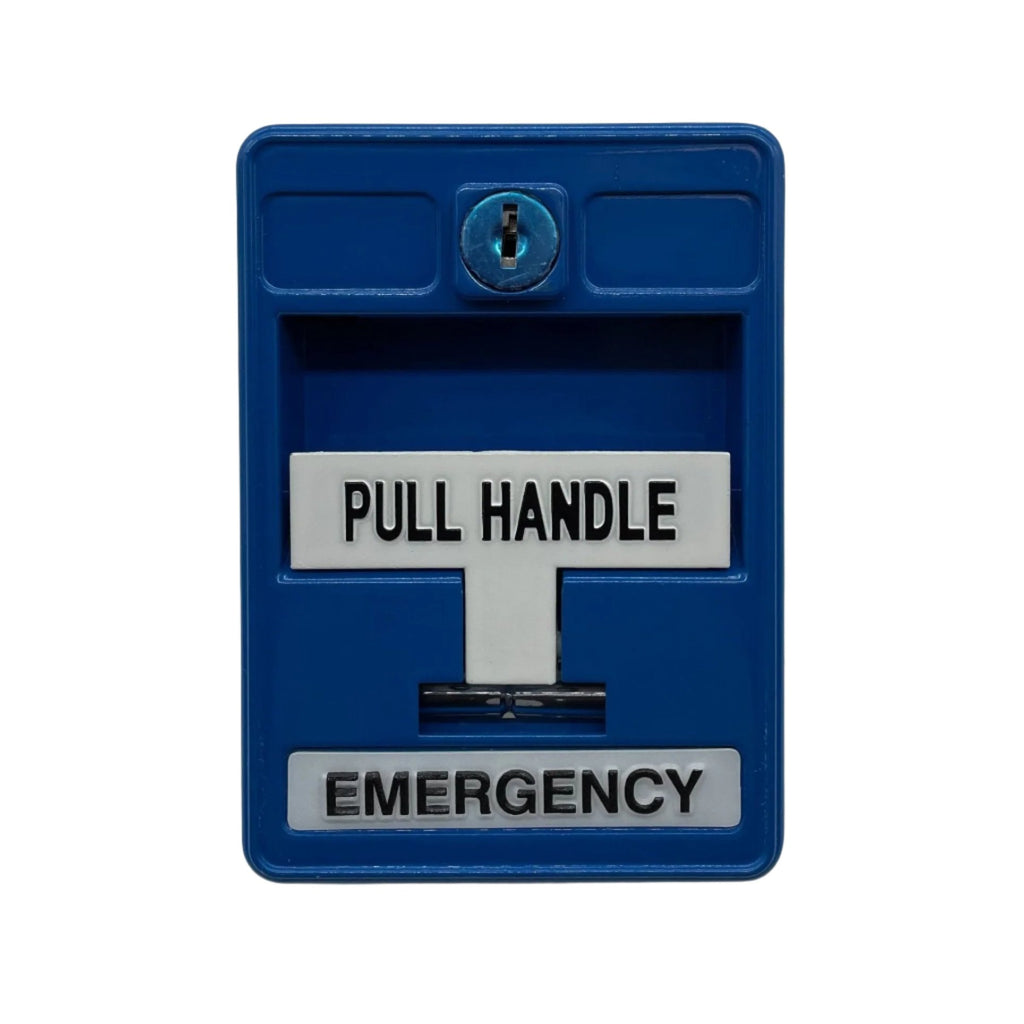

The MS-700U series is built for special use requirements rather than routine fire reporting. The front plate is lettered PULL HANDLE and EMERGENCY in raised white characters, so it reads as a distinct station alongside standard red equipment.
- Single action, operated by pulling down the handle marked PULL HANDLE

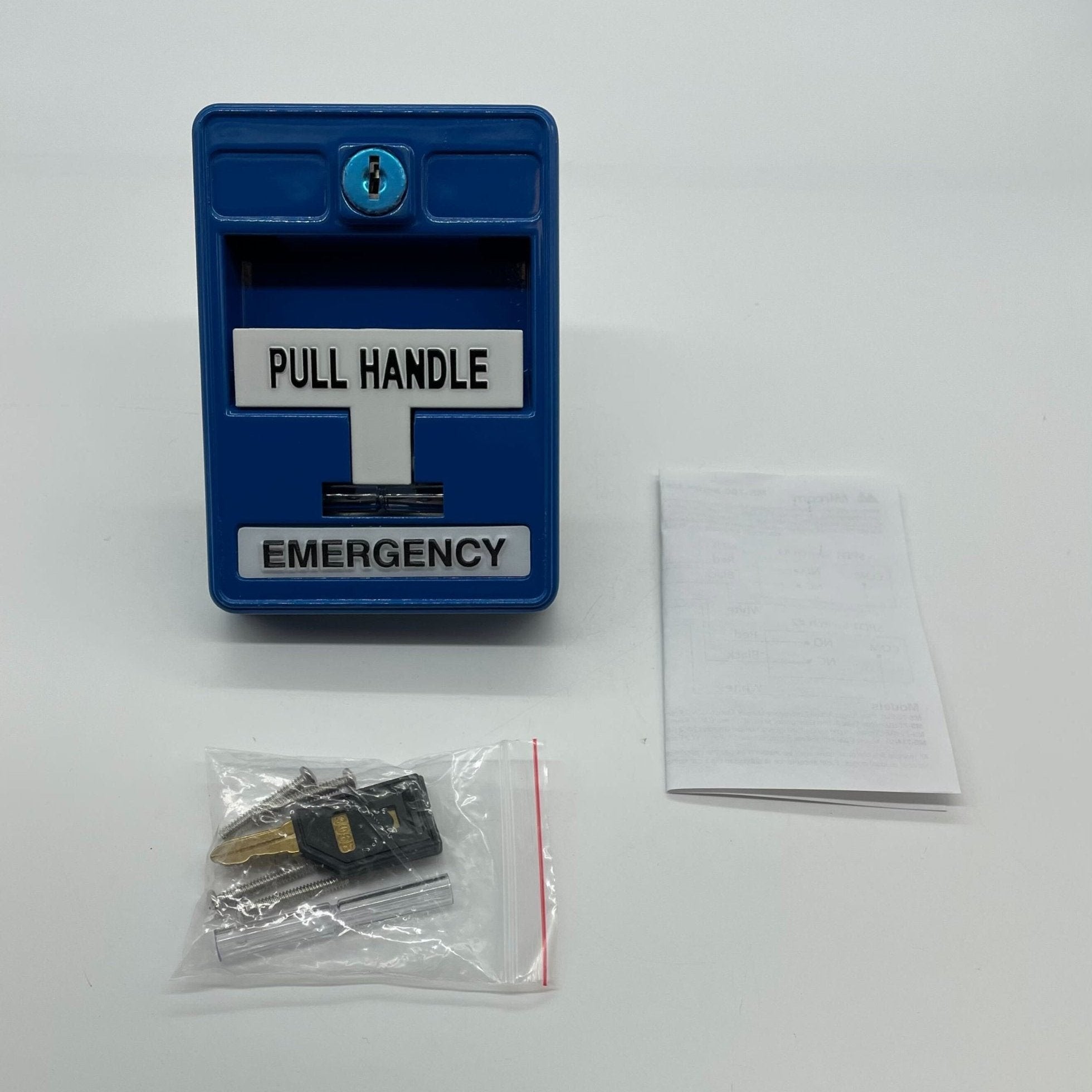

- Key reset with a CAT-30 lock and keys: open it, return the handle upright, relock

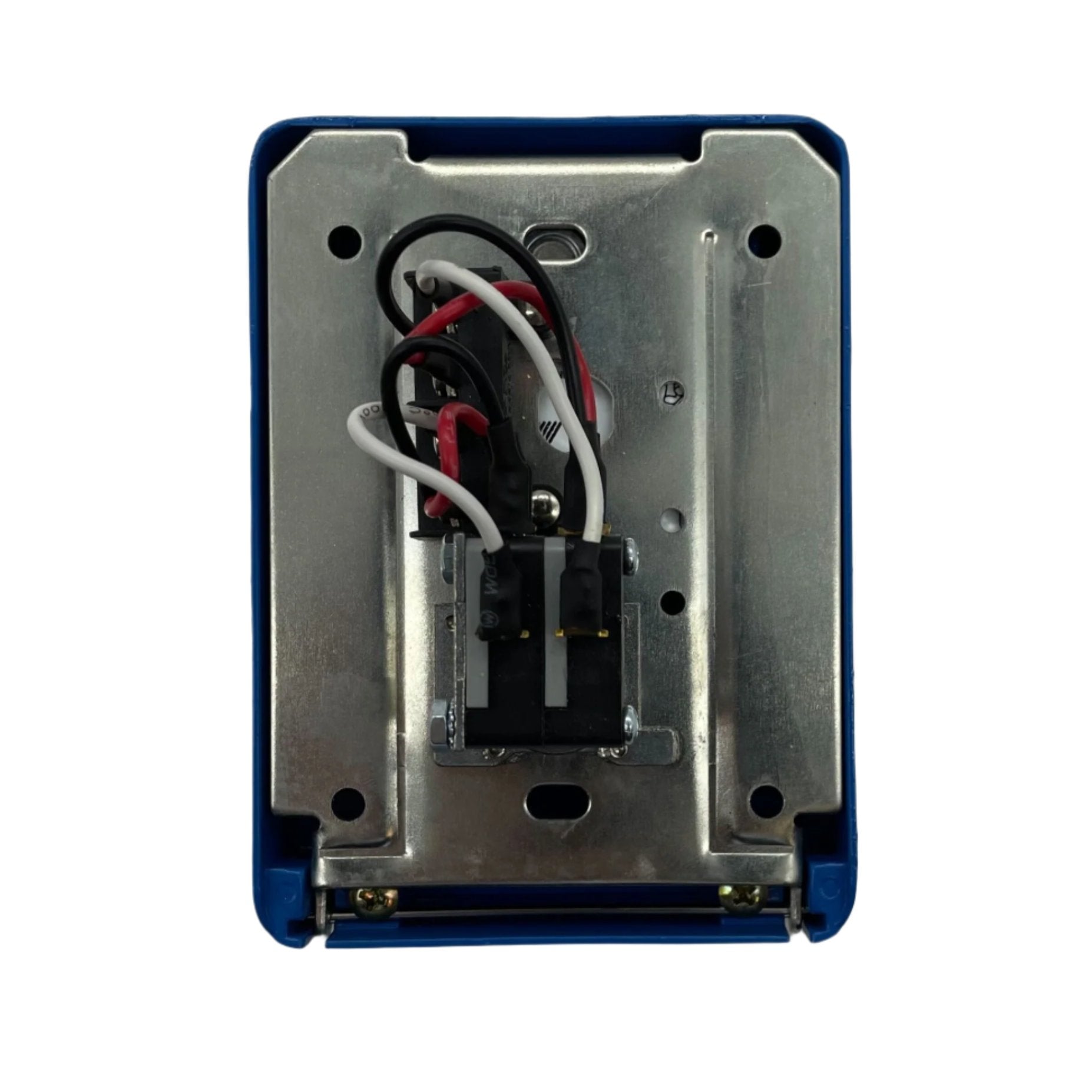

- Two gold-plated SPDT contacts on a terminal strip; cut the NC wire for normally open, the NO wire for normally closed
- Switch rating 1 A at 30 VDC, 0.1 A at 125 VAC
- 4.9 in. H × 3.5 in. W × 2.0 in. D; mounts on a standard single-gang backbox
- Meets the ADA 5 lb. maximum manual-force requirement
The MS-704U is the identical station in yellow enamel and the only other member of the series. Do not confuse it with the fire-reporting stations of LT-936 — the MS-701U single action, the MS-710U dual action, or the MS-705U, which adds one Form C contact rather than carrying two.
