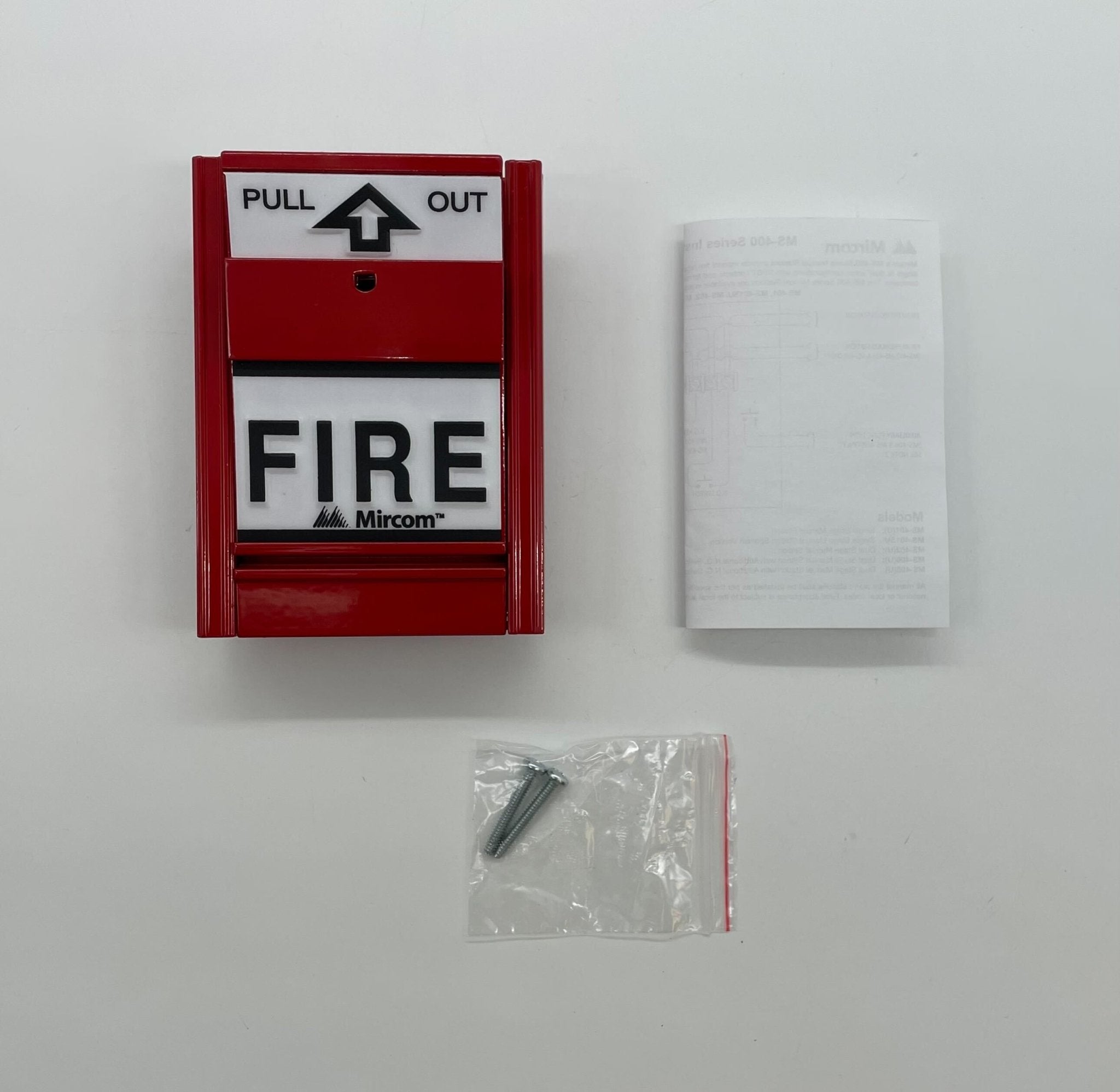

Mircom MS-401U — single stage, single action metal manual fire alarm station with a normally open alarm contact.

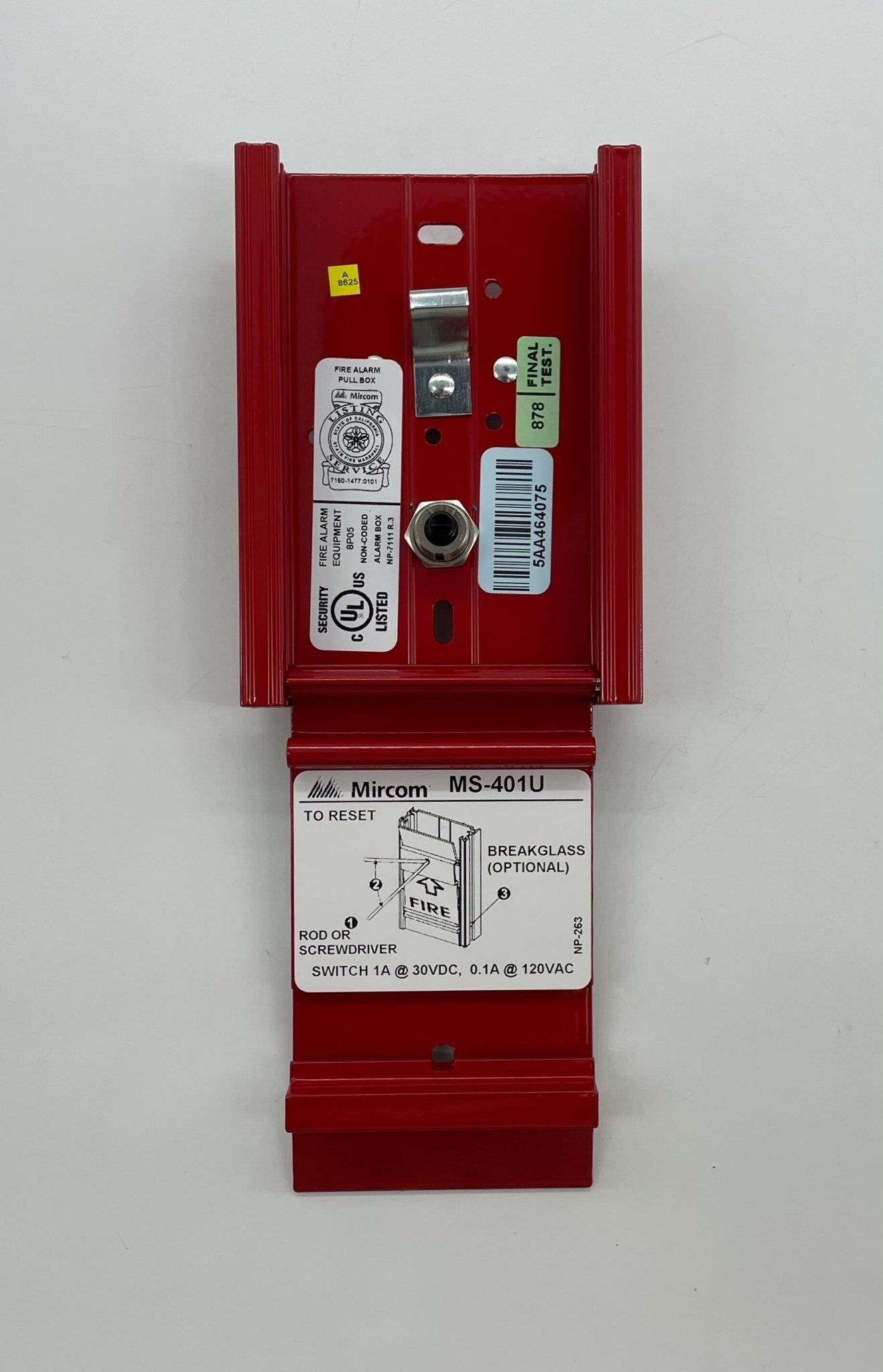

Pulling the handle releases the internal switch and triggers the alarm detection circuit, and the handle stays open so an operated station is obvious. It cannot be reset by pushing it back: a 1/8 in. screwdriver is inserted from the front.
- Non-coded single stage station, single action, convertible to double action

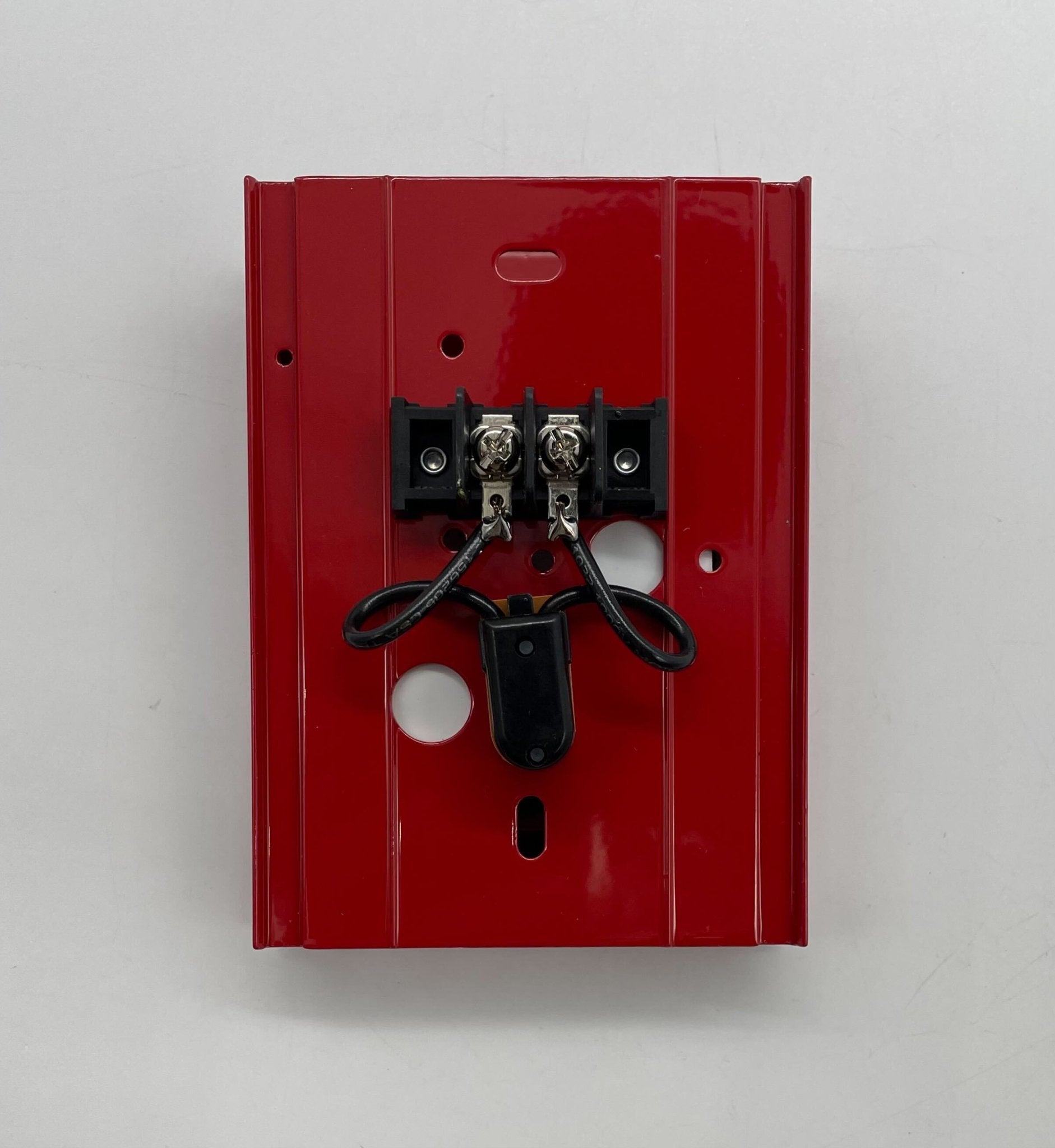

- SPST gold plated contacts on a terminal strip, normally open alarm switch
- Switch rating 1 A at 30 VDC and 0.1 A at 120 VAC; maximum conductor No. 12 AWG
- Aluminium finished in red enamel, in large raised lettering
- Mounts to a standard single gang 2 × 4 × 2-1/4 in. outlet box
- A break glass rod is optional and one rod is provided
- MEA 313-97-E and CSFM 7150-1477:101; the U suffix denotes the USA version
The MS-DA double action lever kit and the BB-300 red surface back box are both ordered separately. MS-402U is the two stage version with a general alarm keyswitch, MS-405U and MS-407U add an N.O. or N.C. auxiliary switch, and the plain MS-401 is documented against ULC codes.
