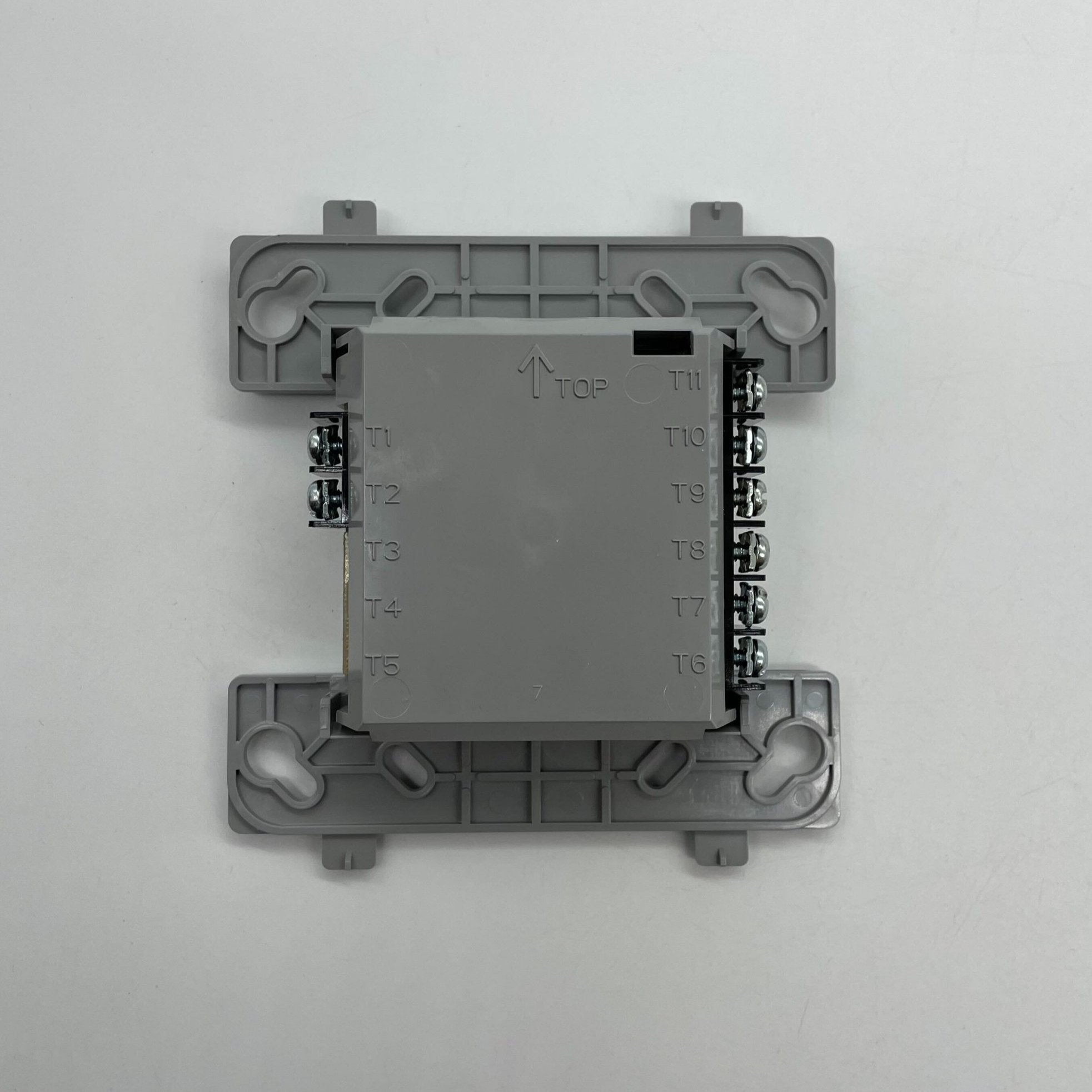

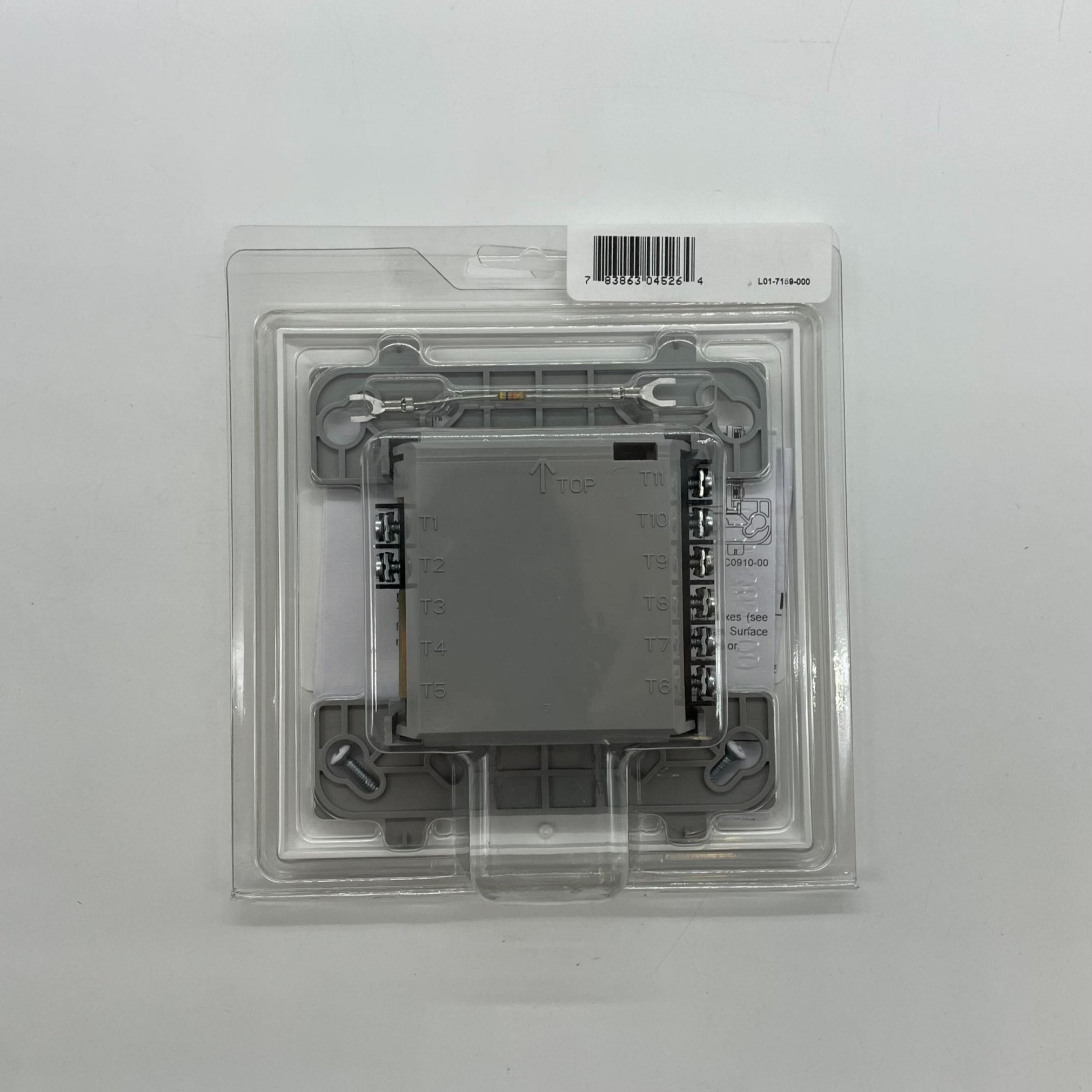

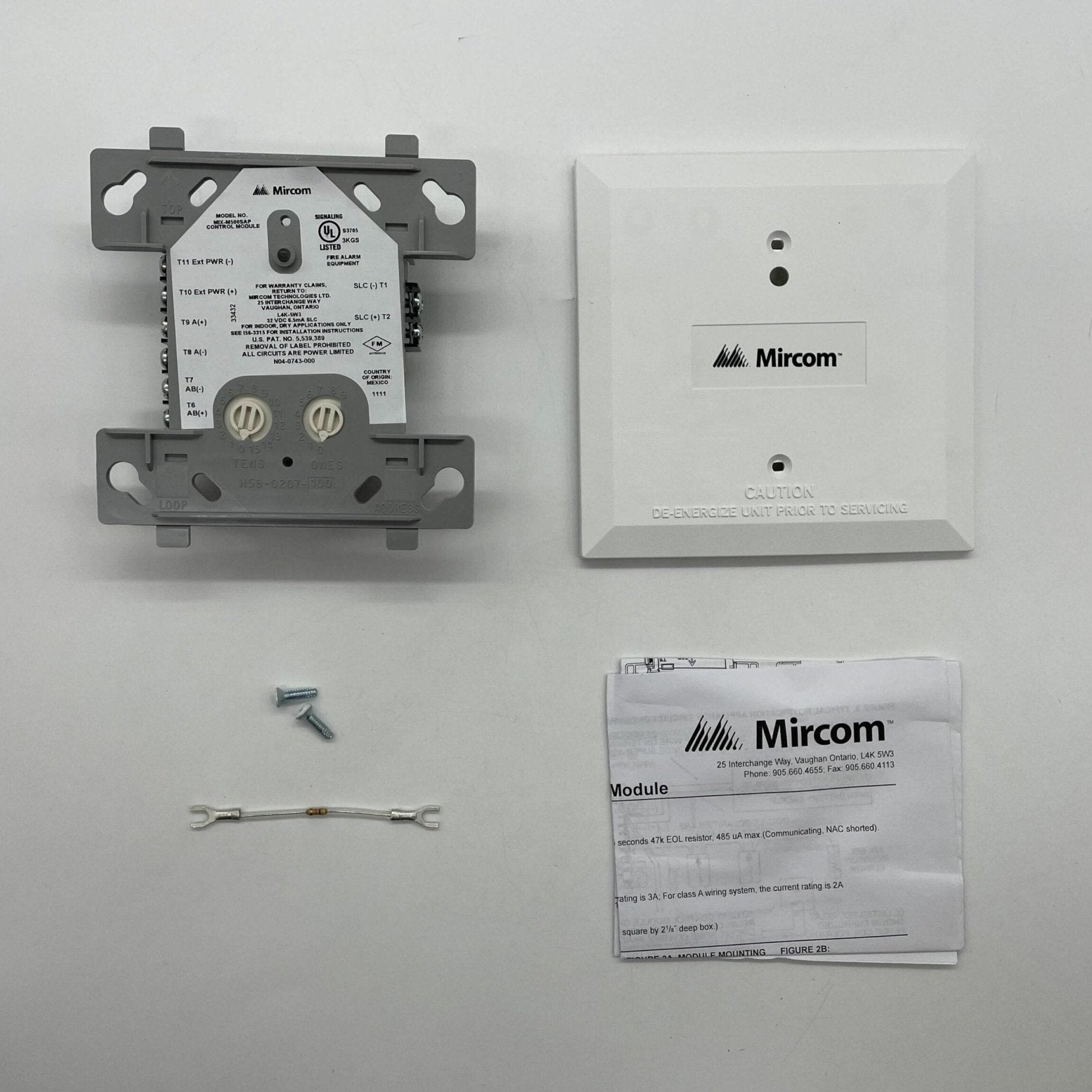

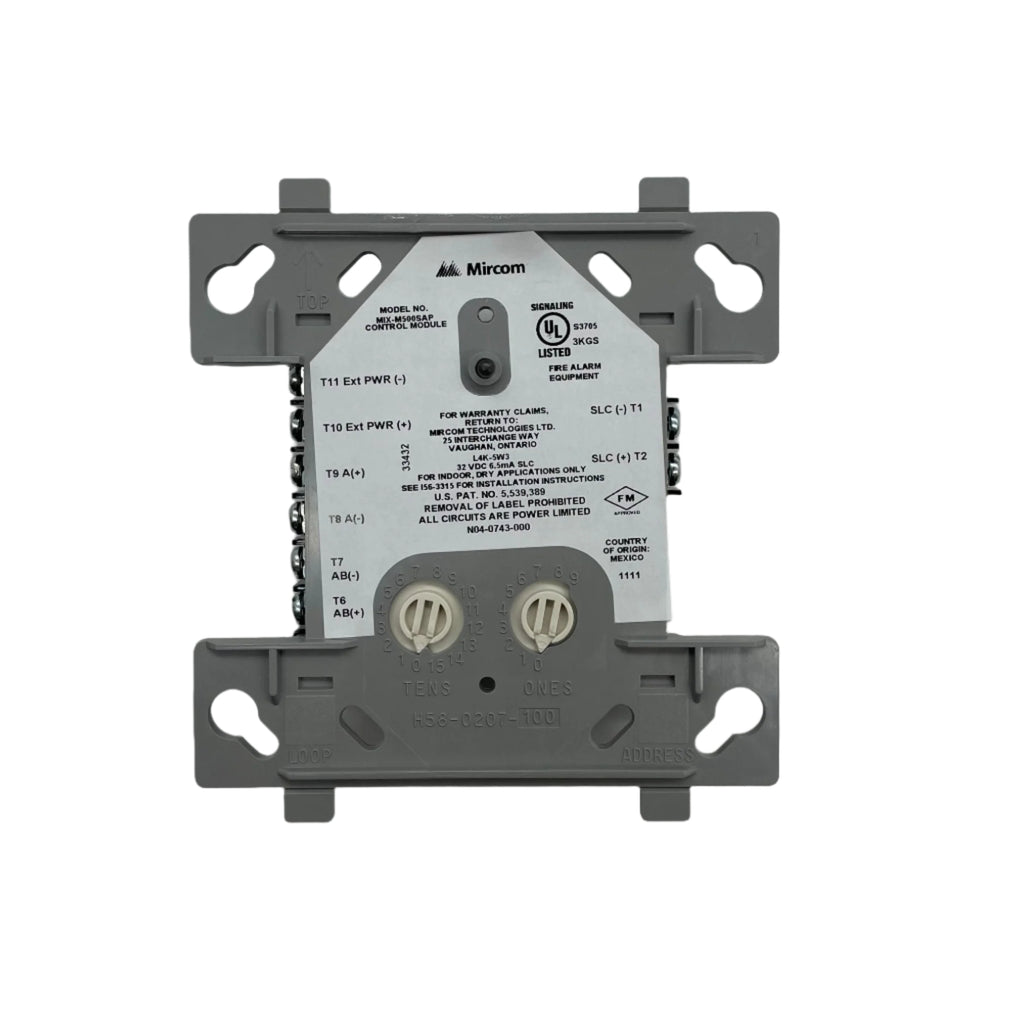

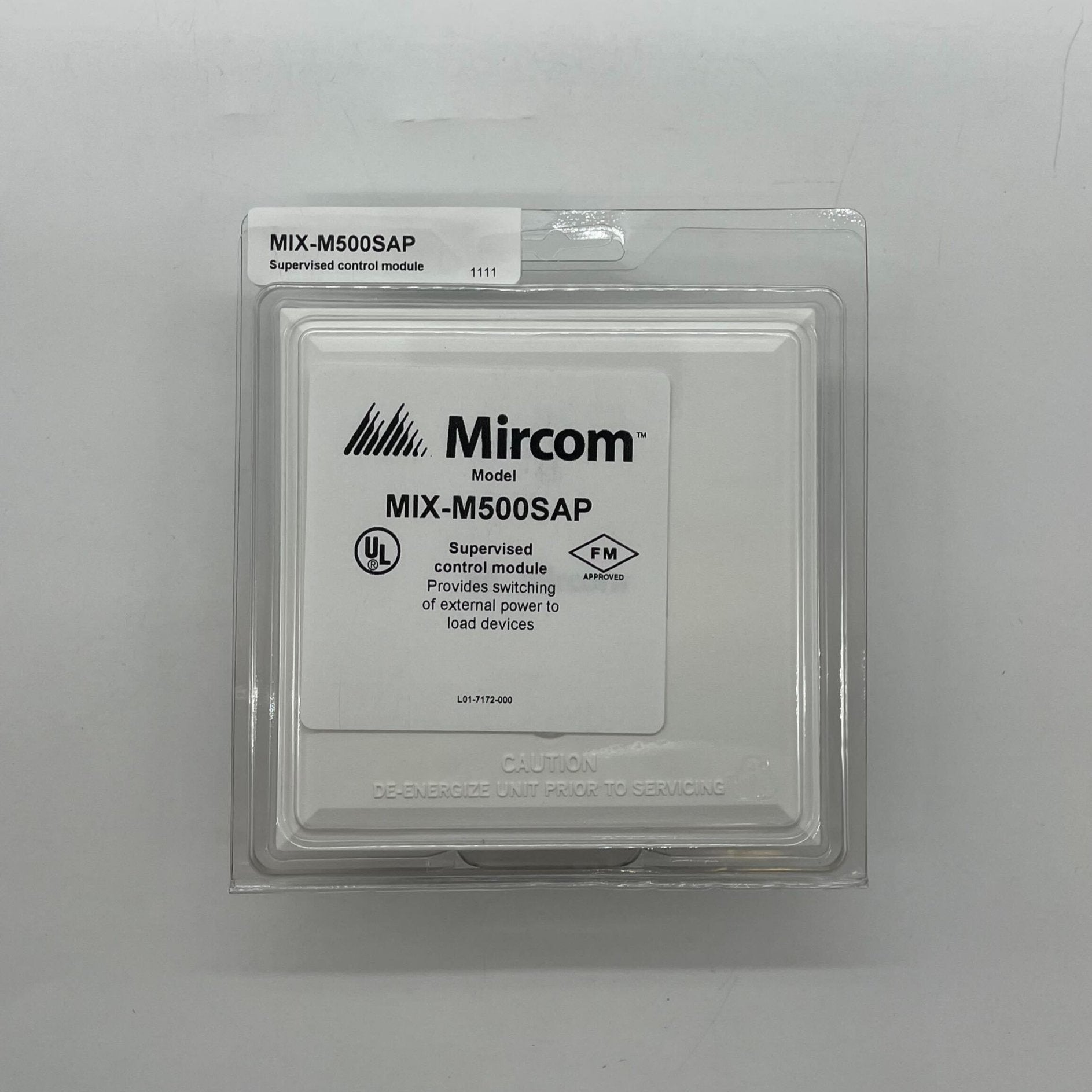

Mircom MIX-M500SAP — Advanced Protocol supervised control module that switches and supervises an externally powered notification circuit.
On command from the panel it disconnects its supervision and connects an external power supply or audio amplifier across horns, strobes, bells or speakers. Dropping the supervision is what proves the relay actually transferred, so the panel gets confirmation rather than an assumption. The external supply stays relay-isolated from the loop.
- Normal operating voltage 15 to 32 VDC; alarm current 6.5 mA with the LED on
- Average operating current 400 µA max. with a 47k EOL resistor; 485 µA with the NAC shorted
- Styles Y and Z supervision; two output pairs for fault-tolerant wiring
- External supply regulated 24 VDC, or 70.07 V RMS, 50 W for speakers
- NAC current rating 3 A on Class B, 2 A on Class A; maximum line loss 4 VDC
- 4.5 in. H × 4 in. W × 1.25 in. D; mounts to a 4 in. square box
MIX-M500RAP is the relay version, two Form-C contacts with no supervision; MIX-M500S is the older non-Advanced-Protocol supervised output module; MIX-M500SAPA is this part ULC-certified.
Documents
FAQ
What is the difference between the MIX-M500SAP and MIX-M500RAP?
The SAP is a supervised control module for externally powered notification appliances. The RAP is a relay module with two Form-C contacts and no supervision.
How is the address set?
With rotary switches: 01 to 159 in Advanced Protocol mode and 01 to 99 in CLIP mode.
Can it drive speakers?
Yes. The external supply can be regulated 24 VDC for notification appliances or up to 70.07 V RMS, 50 W for speakers.
Does it work on older CLIP systems?
Yes. Advanced Protocol devices are backward compatible and operate in CLIP mode for legacy systems.
