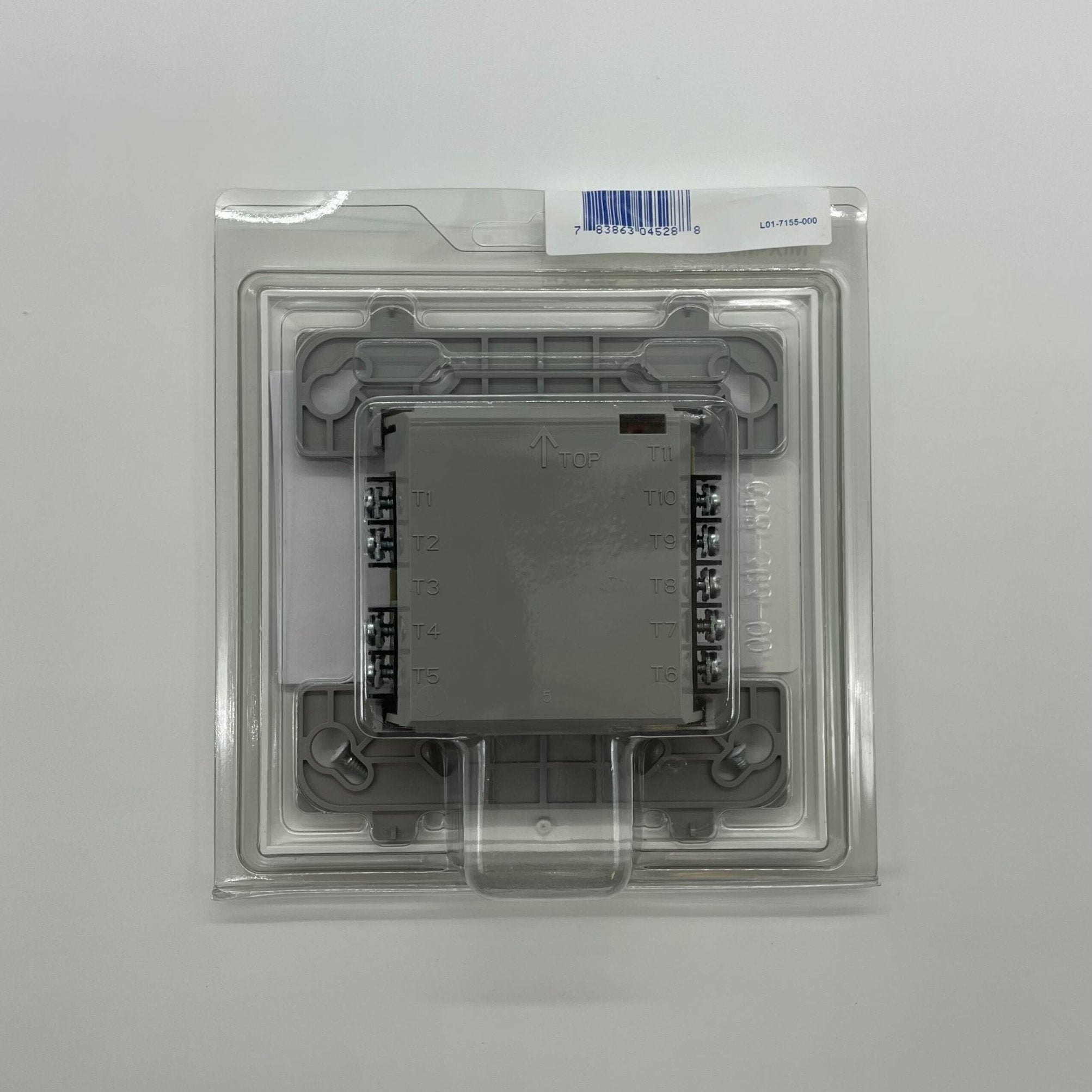

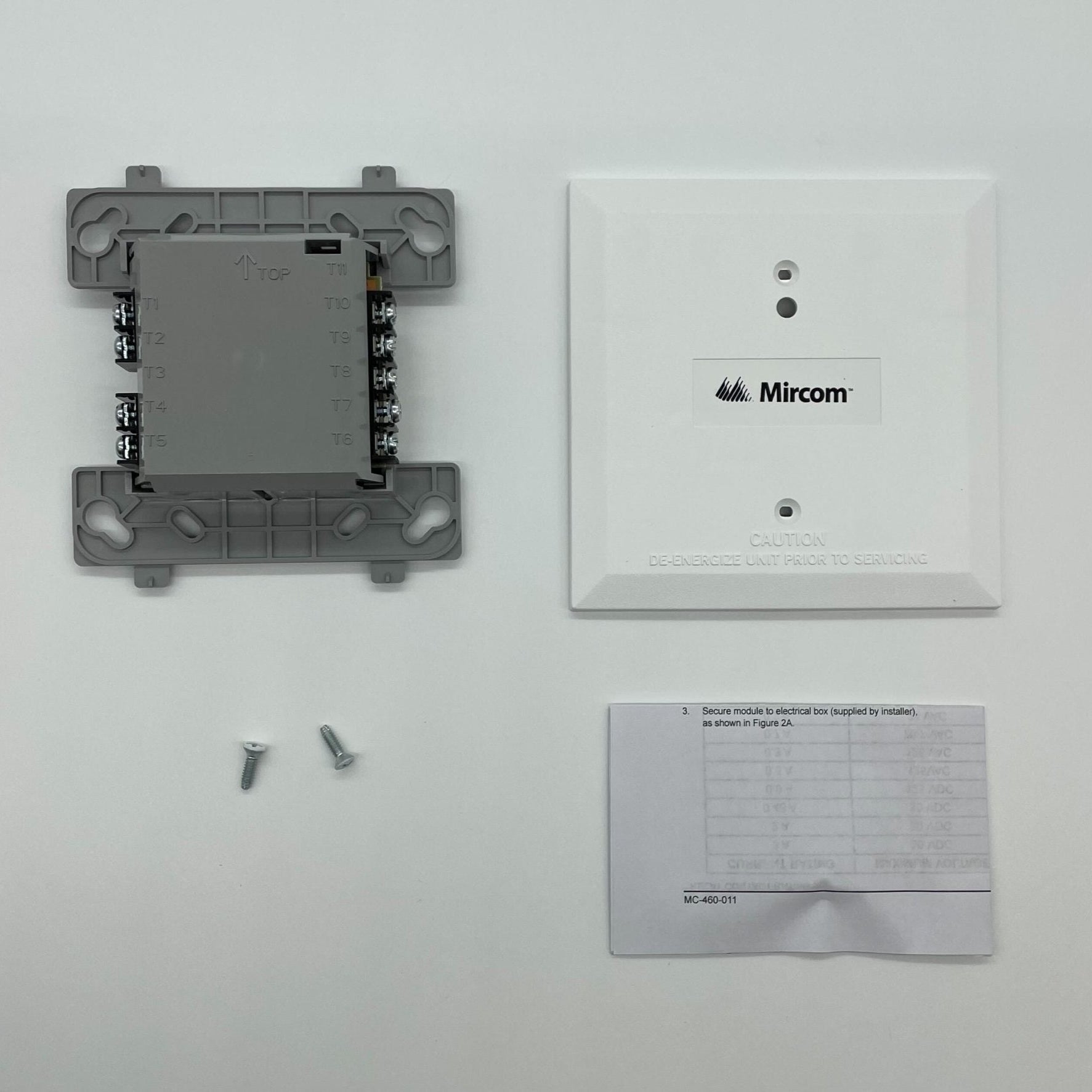

Mircom MIX-M500RAP is an intelligent relay control module for two-wire addressable systems. It contains two isolated sets of Form C contacts that operate as a DPDT switch, letting the panel switch auxiliary devices such as fans, dampers and control equipment on command. It runs on Mircom Advanced Protocol, which supports up to 318 devices per SLC, and is backward compatible with CLIP mode for legacy systems.
Specifications
| Contacts |
Two isolated Form C (DPDT); not supervised |
| Operating voltage |
15 to 32 VDC |
| Average current |
300 µA, 1 communication every 5 seconds |
| Max. alarm current |
6.5 mA (LED on) |
| Addressing |

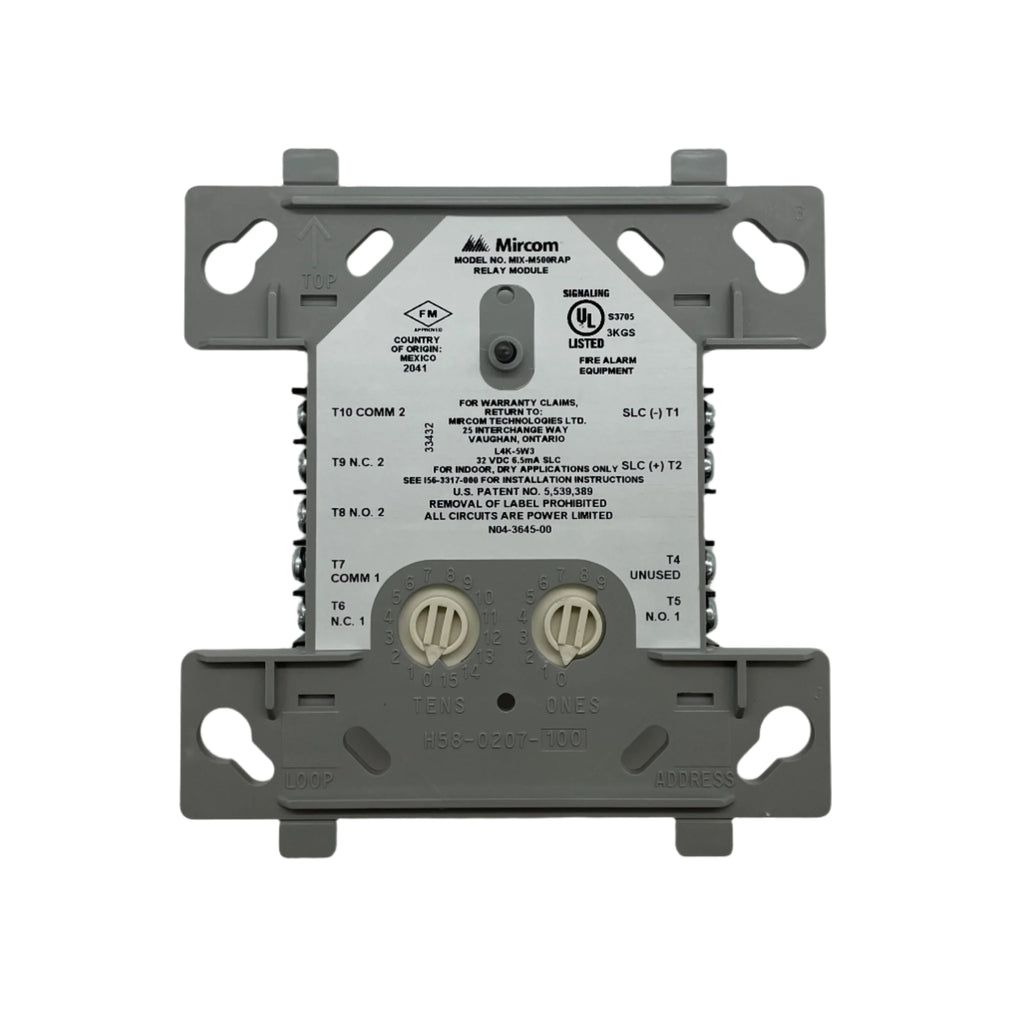

Rotary switches: 01-159 Advanced Protocol, 01-99 CLIP |
| Contact ratings |
3 A @ 30 VDC resistive; 2 A @ 30 VDC coded; 0.9 A @ 125 VDC; 0.5 A @ 125 VAC (PF 0.75) |
| Temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
10% to 93% non-condensing |
| Dimensions |
4.5 in. H x 4 in. W x 1.25 in. D |
| Mounting |
4 in. square junction box |
Features
- Panel-controlled status LED

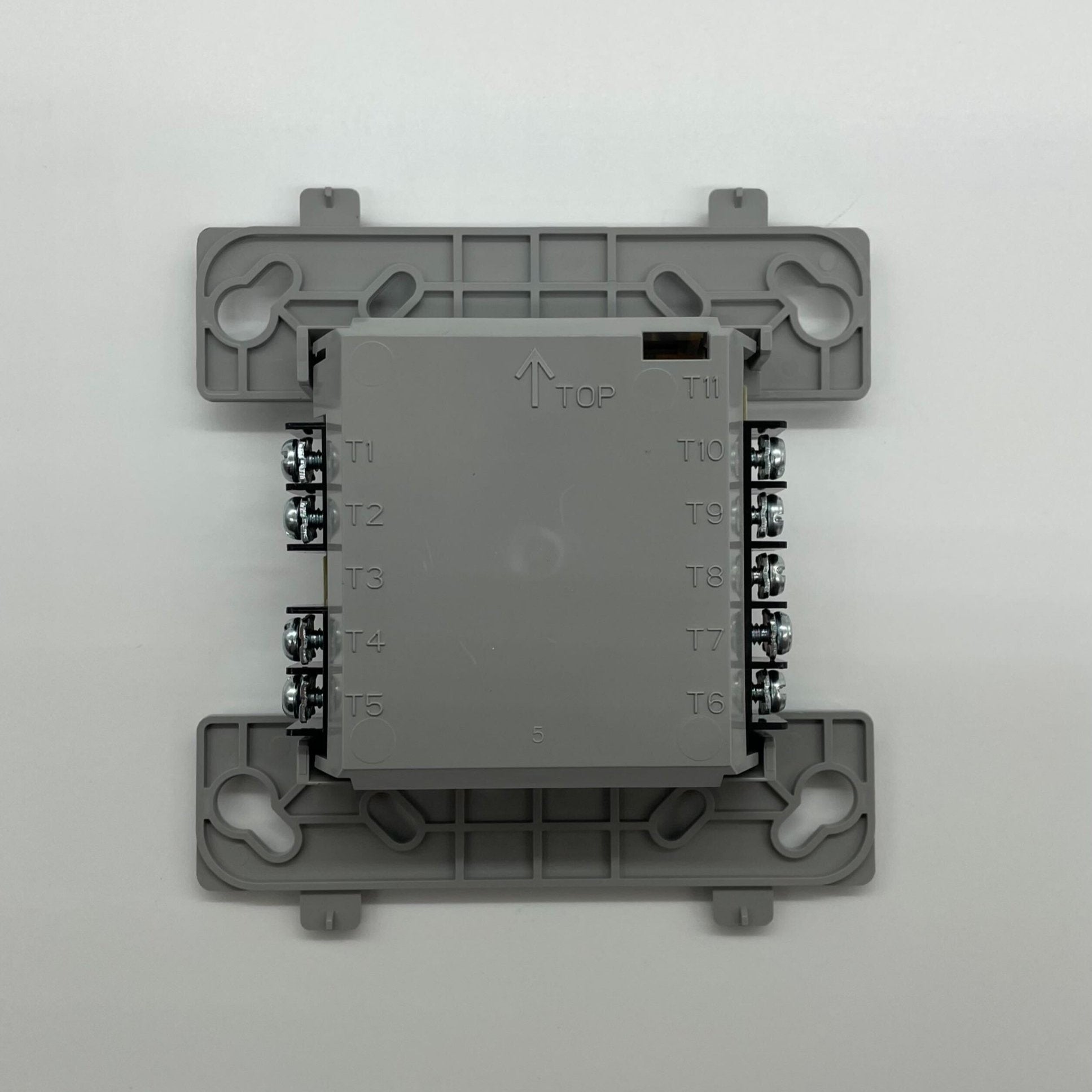

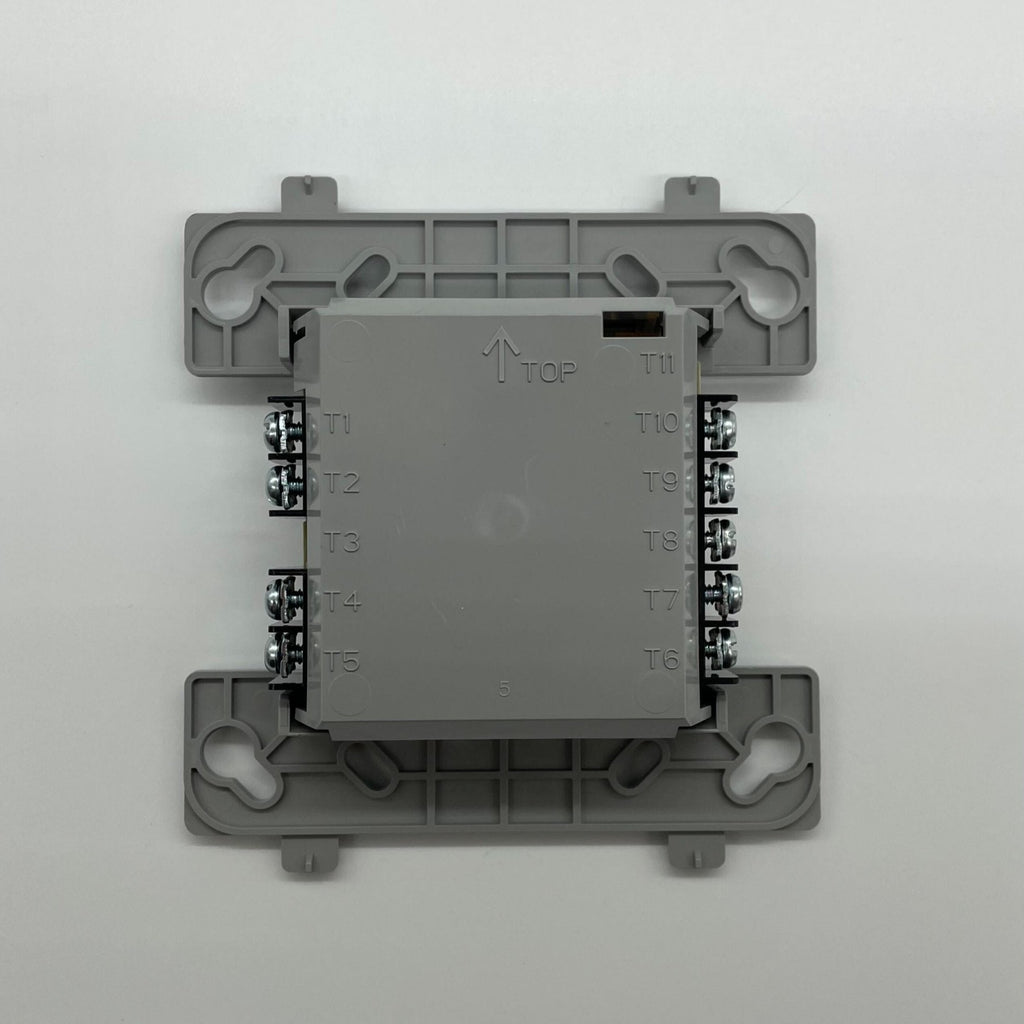

- SEMS screws for easy wiring
- Low standby current
- Advanced Protocol group polling and interrupt for faster alarm response
Related models
-
MIX-M500SAP — supervised control module for NACs and speakers.
-
MIX-M500MAP — standard monitor module; MIX-M501MAP — mini monitor module.
-
MIX-M500RAPA — ULC certified version for Canada.
Documents
FAQ
Are the relay contacts supervised?
No. Mircom states no supervision is provided for the relay contacts.
Which protocols does it support?
Mircom Advanced Protocol (addresses 01-159) and legacy CLIP mode (addresses 01-99), set with rotary switches.
What is the MIX-M500RAPA?
Mircom adds the suffix "A" for the ULC certified (Canadian) model.
What box does it mount in?
A 4 in. square junction box.
