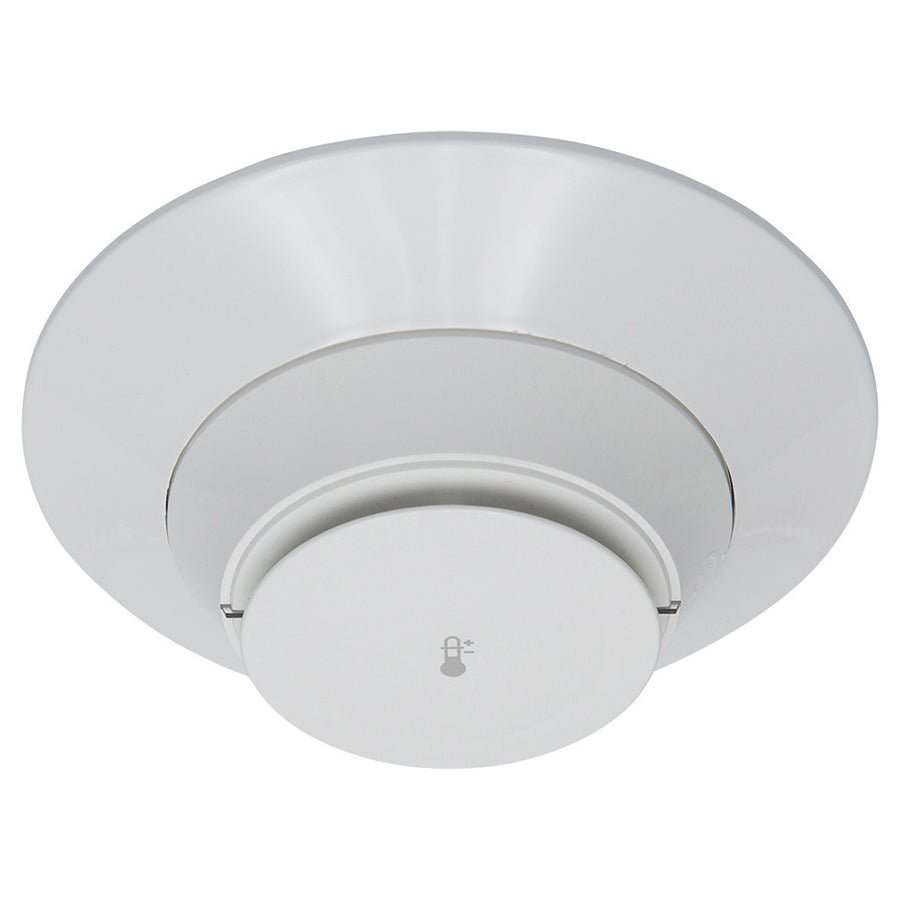

Mircom's MIX-5351AP is an intelligent addressable plug-in heat detector that offers 135°F (57°C) fixed thermal detection. It belongs to the Select Series and communicates using Mircom's high-speed Advanced Protocol. It is also backward compatible with CLIP mode for legacy systems, which makes it useful for both new projects and system upgrades.
Key Features
- 135°F (57°C) fixed-temperature detection
- Thermistor sensing circuit for fast response
- Rotary address switches set the exact point ID for each detector
- Dual LEDs visible through 360°
- Low standby current and a low-profile base for easy interchangeability
- Bright white finish with color kit options
Specifications
-
Manufacturer: Mircom
-
Part Number: MIX-5351AP
-
Type: Intelligent addressable fixed-temperature heat detector (UL version)
-
Fixed Setpoint: 135°F (57°C)
-
Voltage Range: 15 to 32 VDC peak
-
Operating Current: 200 µA @ 24 VDC
-
Maximum Alarm Current: 2 mA @ 24 VDC
-
Operating Temperature: -4°F to 100°F (-20°C to 38°C)
-
Humidity: 10% to 93% non-condensing
-
Height: 2.0 in. (51 mm)
-
Color: White
-
Certification: UL 521
Compatibility
Uses Mircom Advanced Protocol and can also run in CLIP mode. Mounts on bases sold separately, including the B300-6 and B501-WHITE, plus sounder, relay and isolator base options.
